Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car DVR > 960H Realtime P2P 3G H.264 DVR Full HD 1080P NVR Hybrid DVR HVR

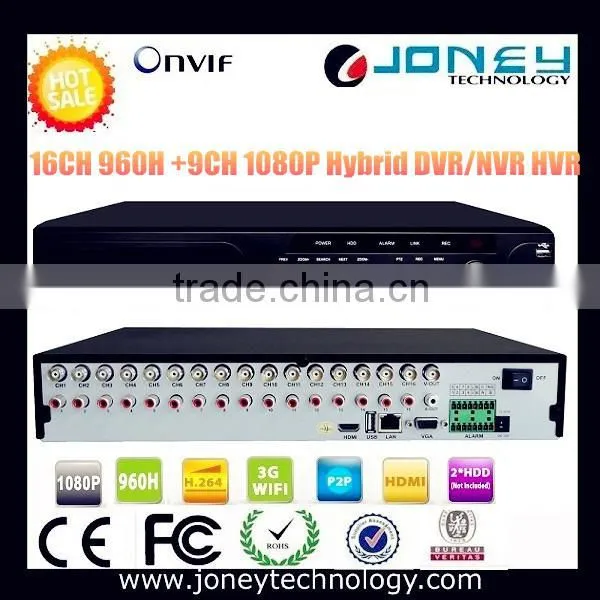

960H Realtime P2P 3G H.264 DVR Full HD 1080P NVR Hybrid DVR HVR
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Joney Technology
Model Number:
HVR-8325
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hybrid DVR 10 INCH TFT Monitor Security 6ch Hvr Support 1pcs SATA HDD(Max 3TB)NegotiableMOQ: 1 Piece -
High Quality Onvif Linux Embeded DVR/HVR/NVR 3 in 1 Rohs Standalone P2P Real Time H.264 Cctv 9ch Hybrid DVR HOT SALENegotiableMOQ: 1 Piece
-
2014 Newest HVR 16CH 960H DVR 4CH 1080P NVR H.264 Hybrid Dvr HVR-8320NegotiableMOQ: 1 Piece
-
Video Surveillance Digital Video Recorder 960H 1080P H.264 Hybrid Dvr 16CH HVRNegotiableMOQ: 1 Piece
-
12CH 1080P 960H HDMI P2P 3G H.264 Super DVR NVR HVR Hybrid DigitalNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Joney Technology
Model Number
HVR-8325
Specifications
1.16ch 960H+ 9ch 1080p ip cam 25ch HVR2.H.264 VGA HDMI
3.PTZ control,2*USB port.
4.16CH Audio& 4ch Alarm input
5.1.5U
Product Description
Network DVR NVR HVR
HVR-8325 H.264 HVR Hybrid DVR/NVR/HVR
Features:Hybrid H.264 HVR Hybrid DVR H.264 HVR Hybrid DVR HVR Hybrid DVR HVR
> 16CH 960H+9CH 1080P
>Recording resolution and channel : 16CH 960H+9CH 1080P
> H.264
> Display Image Resolution 1080P 30FPS
> Audio Input: 16ch
> Alarm Input :4ch
>Support Network:P2P 3G WIFI Cloud
> Operating system Embedded LINUX OS
> PTZ control,with VGA,HDMI.,2*USB port.
> Support 4pcs SATA HDD(Max 12TB)
> DC +12V /3A
> Operation temperature 0℃-+55℃
> 1.5U 365mm * 426mm * 65 mm(1.5U hight)
> 3.5-4.05KG(not include HDD)
Specification: Hybrid H.264 HVR Hybrid DVR H.264 HVR Hybrid DVR HVR Hybrid DVR HVR
| Model | HVR-8325 |
| Support embedded Linux OS Support BNC and IPC Sync Input Support VGA ,HDMI,CVBS Sync video output VGA,HDMI image resolution Max to 1920*1080 Support HD preview, all channels support Main stream Support Zoom function of preview and playback Support event,playback,backup recording ,support picture playback and search Support One-key recording Support fast playback Support P2P Support 9ch 1080P simultaneous playback | |
| System | |
| Main processor | High performance embedded microprocessor |
| Operating system | Embedded LINUX OS |
| Video spec. | |
| Video compression format | H.264 |
| Display Image Resolution | D1@30fps;720P@30fps;960P@30fps; 1080P@30fps |
| Playback Image Resolution | D1@30fps;720P@30fps;960P@30fps; 1080P@30fps |
| Motion Detection | can setup 192(16×12)pcs motion detection area each channeland multi-level sensitivity(1-6 levels adjustable) |
| Privacy Masking | Support |
| Audio spec. | |
| Audio compression format | adpcm, G711 |
| Two-way audio | N/A |
| Recording Mode | |
| Recording Mode | Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording |
| Recording storage | HDD,Network |
| Frame rate | 30 fps NTSC;25fps PAL |
| Recording Playback | Max support 9ch 1080P synchronously playback |
| Backup Mode | Support HDD,USB Flash Disk store & backup |
| Video | |
| Network Video Input | 16CH BNC, 9CH 1080P IPC |
| Video output | 1ch CVBS(BNC), 1ch VGA and 1ch HDMI |
| Audio | |
| Audio Input | 16ch BNC |
| Audio Output | 1ch |
| Alarm | |
| Alarm Input | 4ch Alarm input |
| Alarm Output | 1ch Alarm Output |
| Other | |
| Network | 1x100Mbps,RJ45 port; |
| RS485 | Standard 485 port,support half-duplex, green terminal port |
| USB | 2 USB 2.0 ports |
| HDD | support 4SATA 3TB HDD |
| Power | DC +12V /6A |
| Power consumption | 16W-18W(not include HDD) |
| Operation temperature | 0℃-+55℃ |
| Operation humidity | 10%-90% |
| Demension | 365mm * 426mm * 65 mm(1.5U hight) |
| Weight | 3.5---4.05KG(not include HDD) |
Detailed Images
HVR-8325 Hybrid DVR/NVR/HVR
User manual
Hybrid DVR Connection
HVR Main menu
HVR Play back
HVR Network setup
Add IPC to HVR
HVR CMS Interface
E-map
HVR P2P Mobile Phone viewer
Choose Joney, Choose Professional! High quality more competitive price !!! Contact:Vidya Skype:joneytech02
Welcome to visit our website for detailed information
www.joneysecurity.en.china.cn
