Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car DVR > Economical HOT DVR 4CH/8CH/16CH Full D1 Standalone DVR
Economical HOT DVR 4CH/8CH/16CH Full D1 Standalone DVR
US$ 48 - 137
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Dahua
Model Number:
DVR-5104C/5108C/5116C
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
32 Channel DVR Surveillance System H.264 CIF 32ch DVRUS$ 170 - 178MOQ: 1 Piece -
Cheap 960H H.264 Standalone 16 Channel CCTV DVRUS$ 130 - 135MOQ: 1 Piece
-
16CH Standalone DVR With HDMI Output , Multilingual SupportUS$ 60 - 65MOQ: 1 Piece
-
8CH Standalone D1 H.264 DVR Mini 1U RecorderUS$ 42 - 42MOQ: 1 Piece
-
Blue Box 3G+GPS Hdd Car Dvr+Truck+Bus 3g Wifi H.264 sd Mobile DvrNegotiableMOQ: 5 Pieces
Place of Origin
Guangdong, China
Brand Name
Dahua
Model Number
DVR-5104C/5108C/5116C
Specifications
> Up to 4/8/16 cameras with 1080p realtime preview> H.264 dual-stream video compression
> HDMI / VGA / TV video output
Product Description

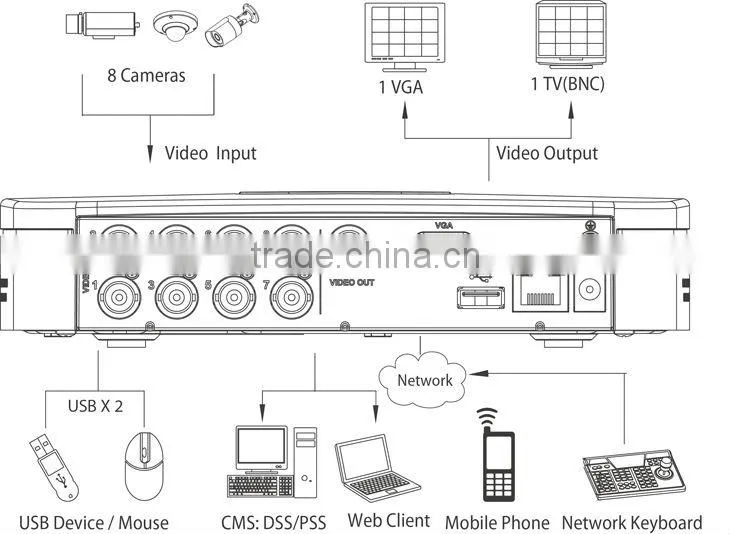

Features:
> Up to 4/8/16 cameras with 1080p realtime preview
> H.264 dual-stream video compression
> DVR5104/5108/5116C: All channel 960H realtime recording
> HDMI / VGA / TV simultaneous video output
> 4 channel synchronous realtime playback, GRID interface & smart search
> Support 1 SATA HDD up to 4TB, 2 USB2.0
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Specification:
| Model | DH-DVR5104 | DHDVR5108 | DH-DVR5116 | DH-DVR2116 | |||
| System | |||||||
| Main Processor | Embedded processor | ||||||
| Operating System | Embedded LINUX | ||||||
| Video | |||||||
| Input | 4 channel, BNC | 8 channel, BNC | 16 channel, BNC | 16 channel, BNC | |||
| Standard | NTSC(525Line, 60f/s), PAL(625Line, 50f/s) | ||||||
| Display | |||||||
| Interface | 1 VGA, 1 TV, BNC | ||||||
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 | ||||||
| Display Split | 1/4 | 1/4/8/9 | 1/4/8/9/16 | 1/4/8/9/16 | |||
| Privacy Masking | 4 rectangular zones (each camera) | ||||||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||||||
| Recording | |||||||
| Video/Audio Compression | H.264 / G.711 | ||||||
| Resolution | D1/4CIF(704×576/704×480) 2CIF(704×288/704×240)/ CIF(352×288/352×240) / QCIF(176×144/176×120) | ||||||
| Record Rate | Main Stream: | D1(1~25/30fps) | 2CIF(1~25/30fps)/2ch@D1+14ch@CIF(1~25/30fps) | ||||
| Extra Stream | CIF/QCIF(1~25/30ps) | CIF(1~6/7fps)/ QCIF(1~25/30ps) | |||||
| Bit Rate | 48~4096Kb/s | ||||||
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | ||||||
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | ||||||
| Video Detection | |||||||
| Trigger Events | Recording, Tour, Video Push, Email, FTP, Buzzer & Screen tips | ||||||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||||||
| Playback & Backup | |||||||
| Sync Playback | 1/4 | 1/4/9 | 1/4/9/16 | 1/4/9/16 | |||
| Search Mode | Time/Date, MD & Exact search (accurate to second) | ||||||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | ||||||
| Backup Mode | USB Device / Network | ||||||
| Network | |||||||
| Ethernet | RJ-45 port (10/100M) | ||||||
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter | ||||||
| Max. User Access | 20 users | ||||||
| Smart Phone | iPhone, iPad, Android, Windows Phone | ||||||
| Storage | |||||||
| Internal HDD | 1 SATA port, up to 4TB | ||||||
| Auxiliary Interface | |||||||
| USB Interface | 2 ports (1 Rear), USB2.0 | ||||||
| General | |||||||
| Power Supply | DC12V/2A | ||||||
| Power Consumption | 10W(without HDD) | ||||||
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa | ||||||
| Dimension(W×D×H) | 205mm×205mm | 270mm×205mm×40mm | |||||
| Weight | 0.5KG | ||||||
