LZZBJ9-20 24kv Dry Type Current Transformer
US$ 200 - 500
MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Ghorit
Model Number:
LZZBJ9-20
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo / Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JDZX11-20 High Voltage Transformer Type 20kV Indoor Voltage Transformer 22kv Dry Type TransformerUS$ 200 - 500MOQ: 10 Sets -
JDZX9-35 Voltage Transformer Type High Voltage Transformer Price 11kv Single Voltage TransformerUS$ 200 - 500MOQ: 10 Sets
-
36kv Outdoor Voltage Transformer 33kv Potential Transformer for Power Distribution BoardUS$ 200 - 500MOQ: 10 Sets
-
LCZ-35 Low Partial Discharge Whole Sealing Current Transformer 35kv Try Type Transformer Current Transformer 33kvUS$ 200 - 500MOQ: 10 Sets
-
LZZBJ4-35 35kV Dry Type Current TransformerUS$ 200 - 500MOQ: 10 Sets
Place of Origin
Zhejiang, China
Brand Name
Ghorit
Model Number
LZZBJ9-20
Usage
Current
Phase
Other
Coil Structure
Other
Coil Number
Other
LZZBJ9-20 SUPPORT TYPE INDOOR CURRENT TRANSFORMER
LZZBJ9-20 current transformer is used for metering and protective relaying purpose for installation in indor up to 20kV rated
voltage, 50 or 60Hz.

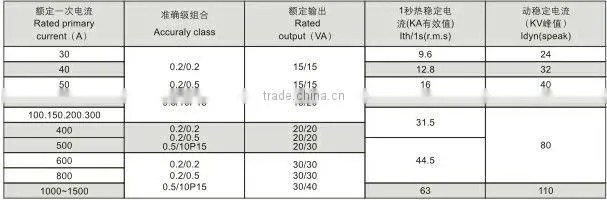

·TECHNICAL DATA
Um 20kV
Test voltages 65/125kV
Rated primary current 10-1250A
Rated secondary current 5/1A
Rated dynamic current 2.5XIth
Rated frequency 50/60Hz
Accuracy 0.5,0.2/ 5P,10P
Rated accuracy limit factor FS<10
