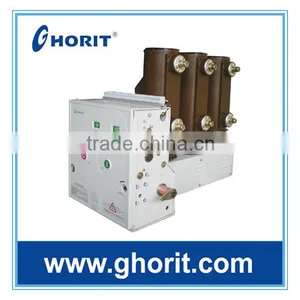

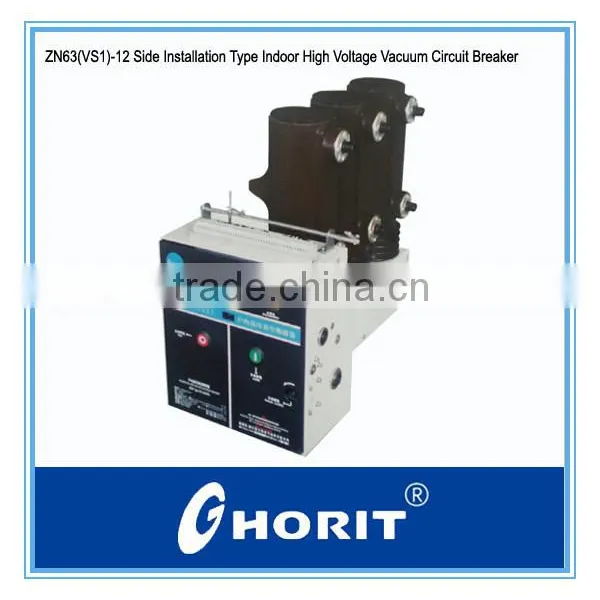

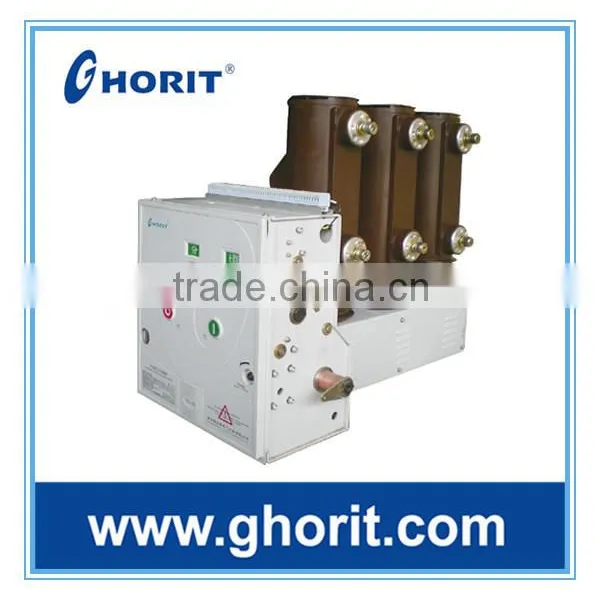

ZN63(VS1)-12 series side installation indoor high voltage vacuum circuit
breaker using fixed installation, the main switchboard for the fixed, the circuit
breaker can be used alone, but also for the ring network power supply, boxtype
variable, or a variety of non-standard power supply system.
The use of environmental conditions
1.Ambient temperature: not higher than +40 °C , not less than
-15°C (at -30 °C to allow storage and transportation).
2. Altitude: not exceed 1000m.
3. Relative humidity: daily average of not more than 90%, month
average of not more than 95%.
saturated vapor pressure daily average of not more than 2.2 ×
10-3MPa, month average not more than 1.8 × 10-3MPa.
4. Earthquake intensity: not more than eight.
5. No fire, explosion hazard, serious filthy, chemical corrosion, as
well as places of intense vibration.
Mainly technical parameters
NO |
Item |
Units |
parameters |
||
1 |
Rated voltage |
KV |
12 |
||
2 |
Rated insulation level |
Rated Lightning Impulse voltage tolerance |
KV |
75 |
|
1min Frequency voltage |
42 |
||||
3 |
Rated short-circuit breaking current |
KA |
20/25 |
31.5 |
|
4 |
Rated current |
A |
630 1250 |
630 1600 2500 |
|
5 |
Rated thermal stability of current (RMS) |
KA |
20/25 |
31.5
|
|
6 |
Dynamic Stability rated current (peak) |
63 |
80
|
||
7 |
Rated short-circuit closing current (peak) |
63 |
80
|
||
8 |
Rated short-circuit breaking current breaking number |
times |
50 |
||
9 |
Frequency tolerance of the secondary circuit voltage (1min) |
V |
2000 |
||
10 |
Rated operating sequence |
|
0-0.3s-CO-180s-CO |
||
11 |
Rated thermal stabilization time |
S |
4 |
||
12 |
Rated a single / back-to-back electric current breaking device group |
|
630/400 |
||
13 |
Mechanical life |
Times |
10000 |
||
