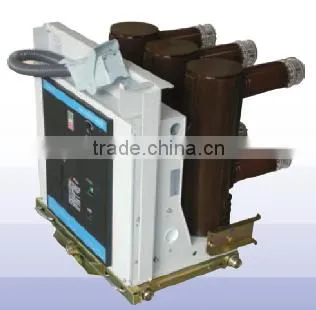

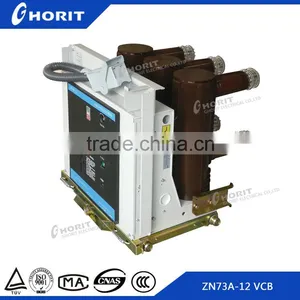

Help CenterZN73A-12 Series Permanent Magnet Type Indoor High Voltage Vacuum Circuit Breaker
Related Products
-
ZN12-12 Series Fixed Type Vacuum Circuit BreakerUS$ 1,000 - 2,000MOQ: 1 Unit -
12KV Indoor High Voltage Vacuum Circuit Breaker ZN28(A)-12US$ 1 - 1MOQ: 1 Unit
-
ZN12(ZN72)-40.5 Series Indoor High Voltage Vacuum Circuit BreakerUS$ 500 - 1,500MOQ: 1 Unit
-
ZW8-12(G) Series Outdoor High Voltage Vacuum Circuit BreakerUS$ 800 - 2,000MOQ: 1 Unit
-
Zhejiang Ghorit 12kv Outdoor High Voltage Vacuum Circuit Breaker ZW10-12US$ 600 - 600MOQ: 1 Unit
ZN73A-12 series permanent magnet-type indoor high voltage vacuum circuit breaker is a three-phase AC 50Hz, rated voltage of 12kV indoor switchgear. I loaded the company with its own research and development of permanent magnetic actuator for industrial and mining enterprises, power generation and substation facilities as electrical control and protection purposes. The product has high reliability and long life characteristics, especially suitable for frequent operation, repeatedly breaking conditions, such as short-circuit current of the place.
Main Featyres
1. High reliability, long life, maintenance-free
2. China's first permanent magnetic actuator mechanical life of up to 100,000 times
3. With the traditional actuator compared without mechanical removal, locking devices, parts and components significantly reduced the number of hours worked with only one moving parts, low failure rate
4. Actuator performance and interrupter breaking. Closing the features needed for a very consistent
5. All sub-reliable operation of the bistable gate.
6. With anti-skip function
7. With controlling power low-voltage alarm refuse to close-
8. Mechanical manual sub-sub-gate and electric gate at the same rate, in the secondary power supply fault conditions, the application of an emergency sub-gate.
9. AC and DC energy storage operation type, operating current is less than 2A, can be done o-co-o operation within 2 hours after the blackout .
10. Highly reliable operation of control circuit module that can be tolerated in the run-time lightning, surge and other harsh
conditions.
11. Versatility, installation size and ZN63 VS1 compatible withother products.
The use of environmental conditions
1.Ambient temperature: not higher than +40°C , not less than -25°C at -30 °C to allow storage and transportation.
2. Altitude:not exceed 1000m,plateau type not exceed 3000m.
3. Relative humidity: daily average is not more than 90%, month average is not more than 95%, saturated vapor pressure daily average is not more than 2.2×10-3 MPa, month average is not more than 1.8 × 10-3MPa. The temperature dropped rapidly during the period of high humidity is that it may Gel.
4. Earthquake intensity: not more than eight.
5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration.
Mainly technical parameters
| NO | Item | Units | Parameters | |||
| 1 | Rated voltage | KV | 12 | |||
| 2 | Rated insulation level | 1min Frequency voltage | KV | 75 | ||
| Rated Lightning Impulse voltage tolerance | 42 | |||||
| 3 | Rated current | A | 630-1250 | 1250-3150 | 1250-4000 | |
| 4 | Rated short-circuit breaking current | kA | 20 | 31.5 | 40 | |
| 5 | Rated short-circuit closing current (peak) | 50 | 80 | 100 | ||
| 6 | Dynamic Stability rated current(peak) | 50 | 80 | 100 | ||
| 7 | Rated thermal stability of current(RMS) | 20 | 31.5 | 40 | ||
| 8 | Rated short-circuit breaking current breaking number | Times | 30 | 30 | 20 | |
| 9 | Rated thermal stabilization time | S | 4 | |||
| 10 | Rated operating sequence | O-0.3s-CO-180s-CO | ||||
| 11 | Mechanical life | Times | ≥50000 ≥50000 ≥30000 | |||
| 12 | Permanent magnetic actuator and transmission part of the Mechanical life | A | ≥100000 ≥100000 ≥100000 | |||
| 13 | Rated single capacitor breaking current | 630 | ||||
| 14 | Rated back to back capacitor breaking current | M | 400 | |||
| 15 | Rated breaking current-step | kA | 12.6 16 | |||
*There should be greater than the rated current 3150A ventilation measures.
**According to the chosen vacuum interrupter and the disparity.
Adjust the parameters of mechanical properties
| NO | Item | Units | Parameters |
| 1 | Contact distance | mm | 11±1 |
| 2 | Contact travel | 3.5±0.5 | |
| 3 | Three phase opening synchronism | ms | ≤2 |
| 4 | Contact closing spring time | ≤S2 ≤3(40kA) | |
| 5 | Phases center distance | mm | 210 275 |
| 6 | Closing contact pressure | N |
20kA 31.5kA 40kA 2000±200 3100±200 4500±200 |
| 7 | Leading electrical circuit resistance | μΩ | 60 45 30 |
| 8 | Average opening speed | m/s | 1.1±0.2 |
| 9 | Average closing speed | 0.7 ± 0.2 0.8 ± 0.2 | |
| 10 | Opening time | ms | 30-60 |
| 11 | Closing time | 50-100 | |
| 12 | Action Static Contact cumulative wear thickness allows | mm | 3 |
