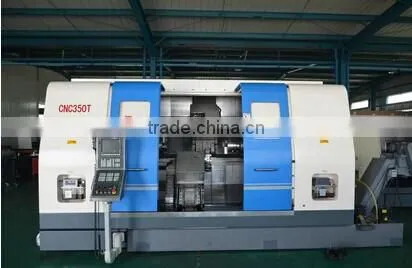

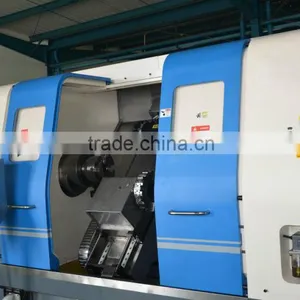

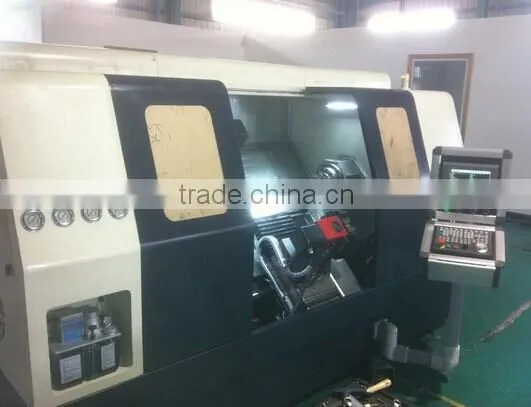

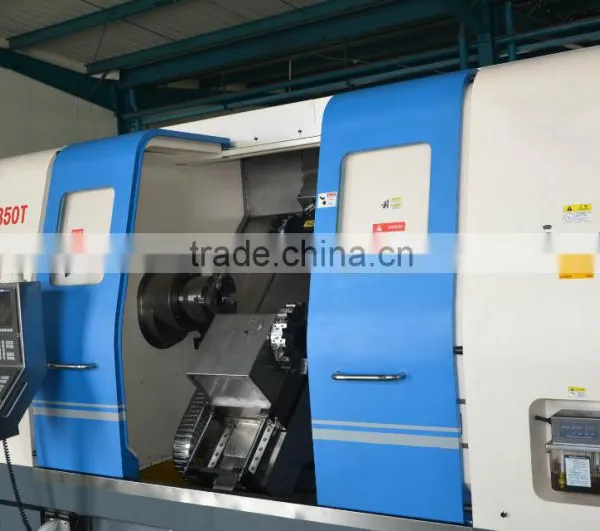

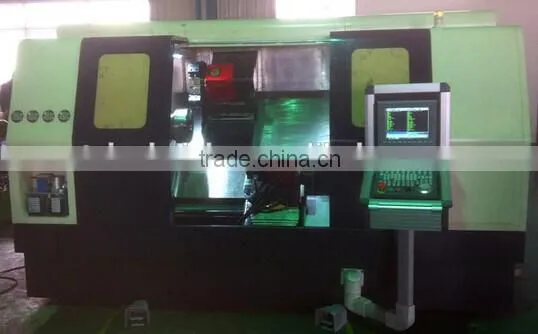

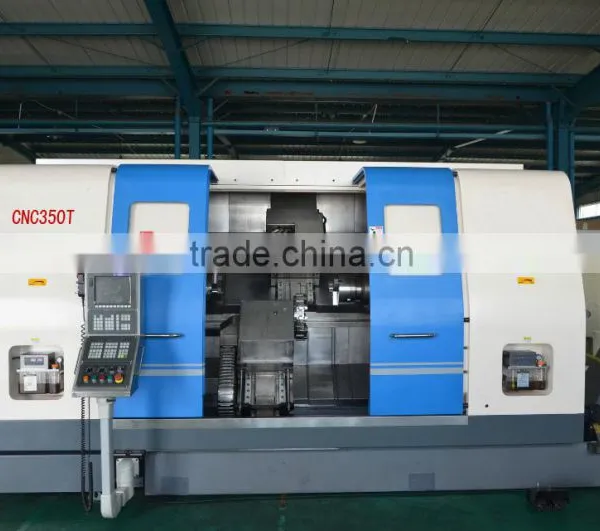

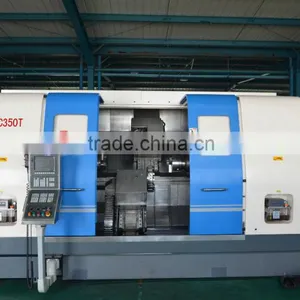

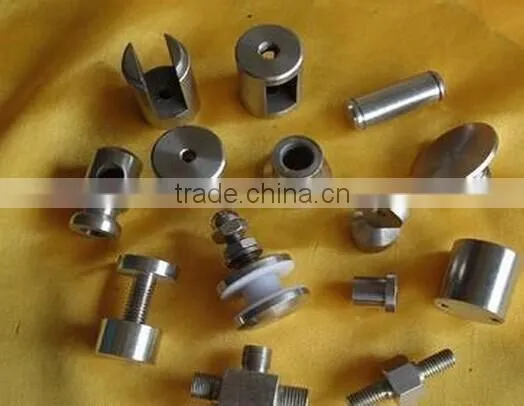

combination lathe milling machine CNC150/250/350/450/550T cnc slant bed lathe
CNC system: SYNTEC
Two servo spindle unit
Two hydraulic center solid chuck

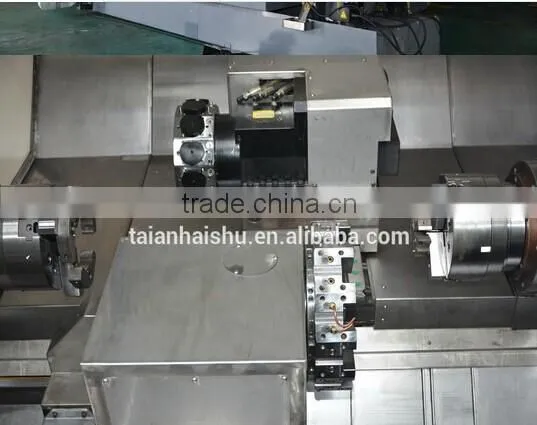

Horizontal 12-station hydraulic servo power turret
5-Axis line rail
Turning cooling system
Automatic lubrication system
The whole protection system
Select Configuration:
CNC : Fanuc, Siemens
Increasing the Y-axis
No. |
Item |
Unit |
specifications |
||||
CNC150T |
CNC250T |
CNC350T |
CNC450T |
CNC550T |
|||
1 |
Max.rotation diameter on lathe’ body |
mm |
150 |
250 |
350 |
450 |
550 |
2 |
piece lengt |
mm |
750/1000/1500 |
||||
3 |
Max.turning diameter |
mm |
100 |
200 |
300 |
400 |
500 |
4 |
Spindle nose type and code |
mm |
A6 |
A6 |
A8 |
A8 |
A12 |
5 |
2-Hydraulic chuck |
mm |
2-φ80 (4") |
2-φ160 (6") |
2-φ200 (8") |
2-φ250 (10") |
2-φ300 (12") |
6 |
Front spindle bore taper |
|
1:20 |
||||
7 |
Spindle bore |
mm |
38 |
40 |
50 |
60 |
75 |
8 |
2- Servo spindle speed range |
mm/min |
0-4000 |
||||
9 |
X/Z/B Rapid traverse |
mm/min |
40000 |
||||
10 |
Cs1,Cs2 main servo motor power |
kW |
3.7 |
5.5 |
7.5 |
11 |
15 |
11 |
C-axis(Turret power axis) motor power |
kw |
2.2 |
3.7 |
3.7 |
5.5 |
5.5 |
12 |
X/Z-axis motor max.torque |
N.m |
6 |
10 |
10 |
10 |
15 |
13 |
Y-axis travel(optional) |
mm |
+20/-20 |
+25/-25 |
+35/-35 |
+45/-45 |
+55/-55 |
14 |
B-axis(sub-spindle) motor max.torque |
N.m |
10 |
15 |
15 |
15 |
20 |
15 |
Power specifications |
v |
380±10%. 50Hz±1Hz |
||||
16 |
Turret transfer time (one station) |
s |
1.6 |
||||
17 |
Turret transfer repeat positioning accuracy |
mm |
0.005" |
||||
18 |
X1/X2-axis travel |
mm |
100 |
150 |
200 |
300 |
350 |
19 |
Z1/Z2-axis travel |
mm |
1100/1350/1850 |
||||
20 |
B-axis (sub-spindle) travel |
mm |
1400/1650/2150 |
||||
21 |
2-C axis(Turret power axis) max.speed |
rpm |
4000 |
||||
22 |
Biaxial dynamic docking concentricity |
mm |
0.004 |
0.004 |
0.005 |
0.005 |
0.005 |
23 |
Ydraulic servo turret form |
|
2-Horizontal 12-station servo power turret |
||||
24 |
Turret cylinder clamping force |
kg |
2350 |
2350 |
4240 |
4240 |
4524 |
25 |
Turret hydraulic power source |
kg/cm² |
30 |
30 |
40 |
40 |
45 |
26 |
Power tool holder specification |
|
VDI30 DIN5480 |
VDI30 DIN5480 |
VDI40 DIN5480 |
VDI40 DIN5480 |
BMT60 -ER32 |
27 |
Knife handle size |
mm |
16×16 |
20×20 |
20×20 |
25×25 |
25×25 |
28 |
Net weight |
kg |
3800 |
4600 |
5500 |
6800 |
8200 |
29 |
Size(L×W×H) |
mm |
2700/3000/3500×1650×1900 |
||||
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is welcome.
If you are interested in combination lathe milling machine CNC150/250/350/450/550T cnc slant bed lathe, welcome to leave a message or send the inquiry to understand the details of machine.
