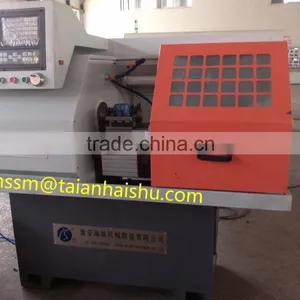

horizontal lathe CK0640A chinese lathes for sale
Item |
CK0640A |
Swing over bed(mm) |
Φ300 |
Max rotative diameter on carriage(mm) |
Φ100 |
Max processing length(mm) |
Collect200/Chuck120 |
Spindle nose |
A2-5 |
Through-hole diameter of spindle(mm) |
Φ48 |
Through-hole diameter of drawn pipe(mm) |
Φ40 |
X/Z-axis repeatability(mm) |
0.012/0.013 |
X axis travel(mm) |
260 |
Y axis travel(mm) |
240 |
X-axis rapid traverse rate(m/min) |
5M |
Z-axis rapid traverse rate(m/min) |
8M |
Spindle speed range(m/min) |
150-2200 |
Type of tool carrier |
Gang-type tool carrier |
Main motor power(KW) |
3kw |
L*W*H(mm) |
1600×1000×1550 |
weight(Kg) |
1000kg |
Design:
•Machines were controlled by Mach3 High speed, efficiency and stable performance.•longitudinal and cross feeds are effected by ball leadscres driven by mixed type step motor.
•4-way electrical tool post with auto tool position.
Standard accessories |
optional accessories |

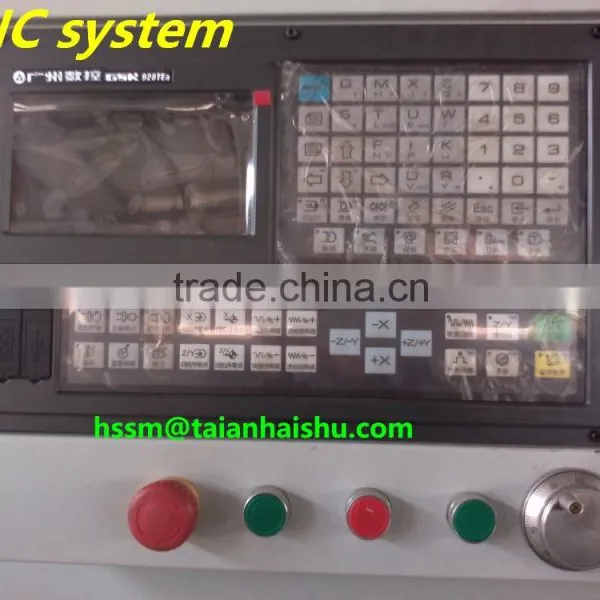

1. GSK 928 CNC controller |
1. GSK980, FANUC or SIEMENS CNC controller |

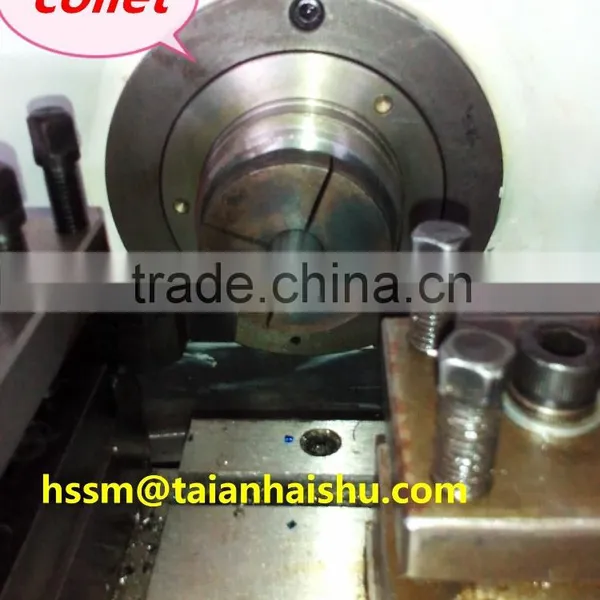

2. penumatic spring clip |
2. Pneumatic chuck, hydraulic chuck |
3. Electric Lubrication |
3. 4 positions tool post |
4. gang-type tool carrier |
4. pneumatic tailstock, hydraulic tailstock |
5. Work light |
5. Spring fastener |
6. Foundation pads |
6.auto feeder |
7. coolant |
7. other |
8. manual tailstock |
|
9. User's Manual, Operational Manual |
|
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine .
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
If you are interested in horizontal lathe CK0640A chinese lathes for sale , welcome to leave a message or send the inquiry to understand the details of machine.
