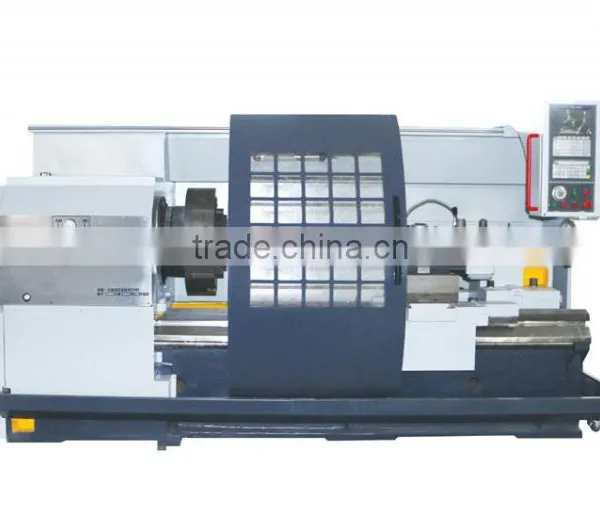

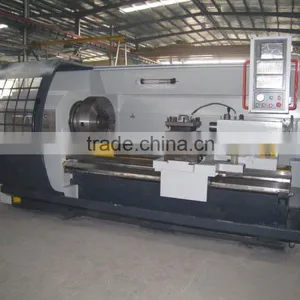

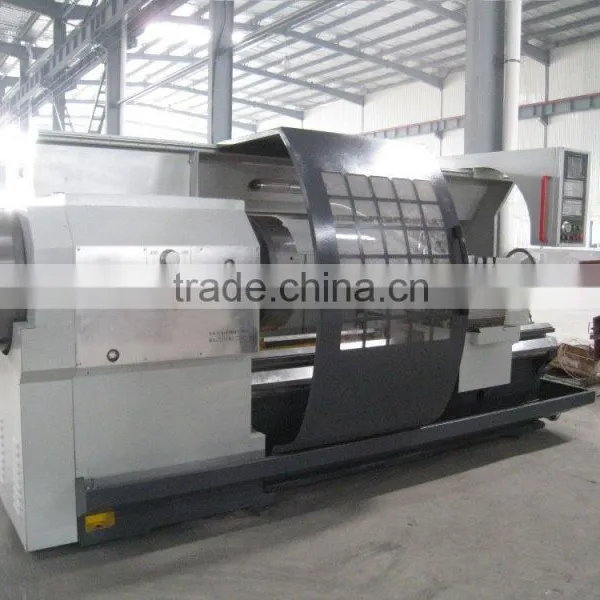

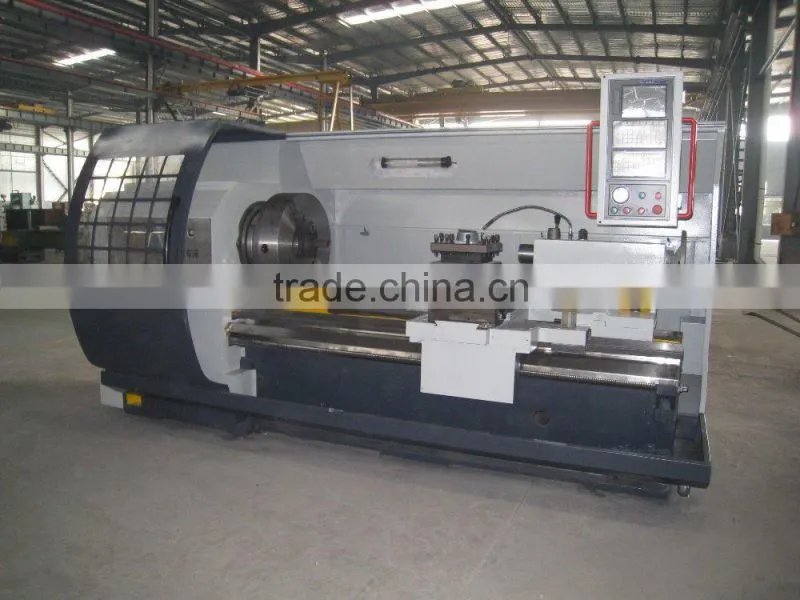

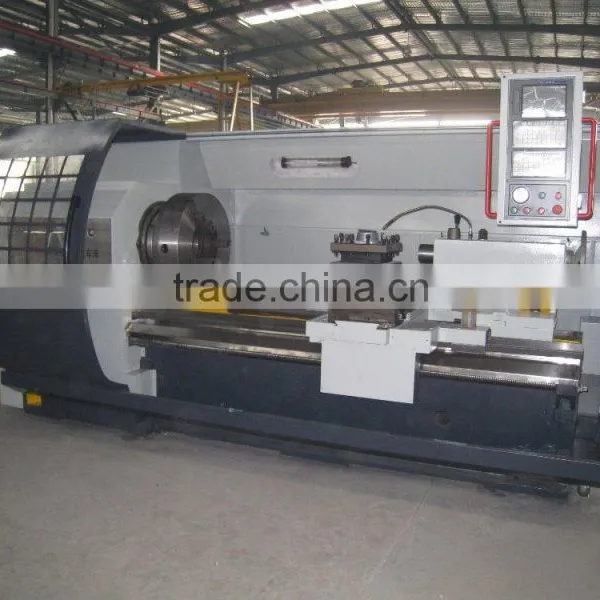

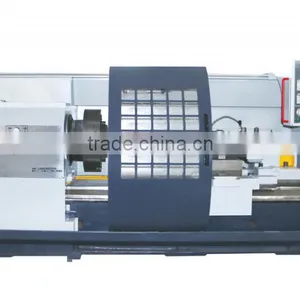

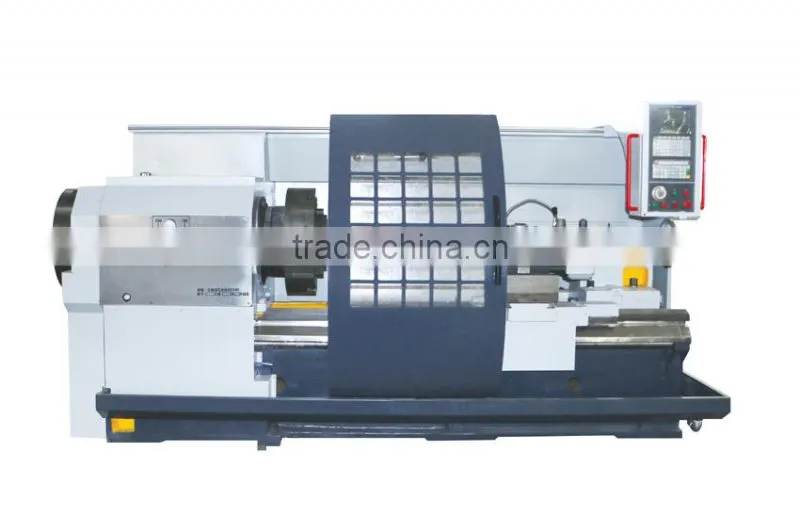

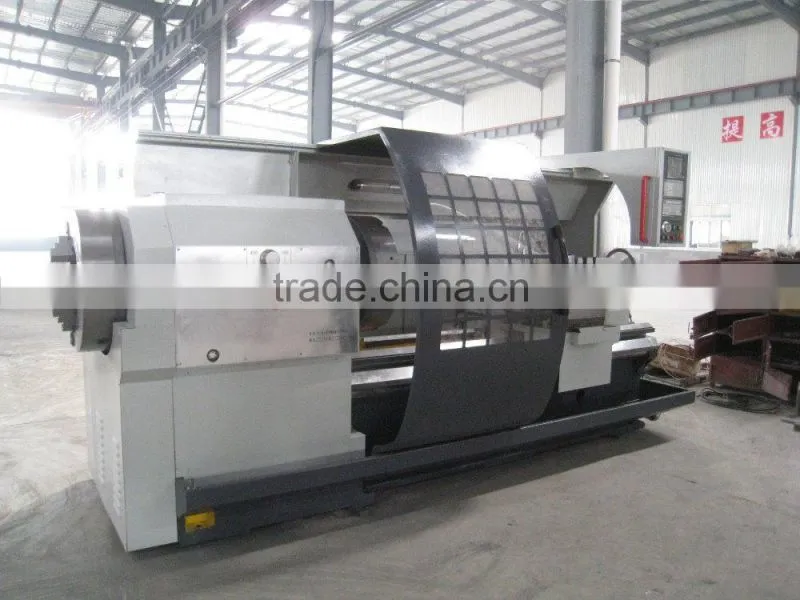

cnc turret lathe CKG1330B tube threading lathe cnc threading machine
machine technical parameter:
No |
Item |
Unit |
Specification |
|
1 |
Max. swing over bed |
mm |
800 |
|
2 |
Max. swing over carriage |
mm |
480 |
|
3 |
Max. length of work piece |
mm |
1500/3000 |
|
4 |
Bed guideway span |
mm |
600 |
|
5 |
Main transmission form |
2 level mechanical transmission,conversion stepless speed |
||
6 |
Range of spindle speed |
rpm |
20~260 |
|
7 |
Spindle bore |
mm |
305 |
|
8 |
Main motor power |
KW |
Y2-160L-6 11KW 970r/min |
|
9 |
Max. travel of turret |
mm |
X:550 Z:1520 |
|
10 |
Fast moving speed |
mm/min |
X:4000 Z:6000 |
|
11 |
Feed positioning accuracy |
mm |
0.016 |
|
12 |
Feed repetitive positioning accuracy |
mm |
0.012 |
|
13 |
Workpiece processing precision |
|
IT6 |
|
14 |
Workpiece surface roughness |
|
Ra 1.6 |
|
15 |
Tailstock sleeve diameter |
mm |
100 |
|
16 |
Tailstock sleeve stroke |
mm |
250 |
|
17 |
Tailstock sleeve taper |
|
MT6 |
|
18 |
Servo motor |
|
22Nm 3.5KW 1500r/min |
|
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine .
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is welcome.
If you are interested in cnc turret lathe CKG1330B tube threading lathe cnc threading machine , welcome to leave a message or send the inquiry to understand the details of machine.
