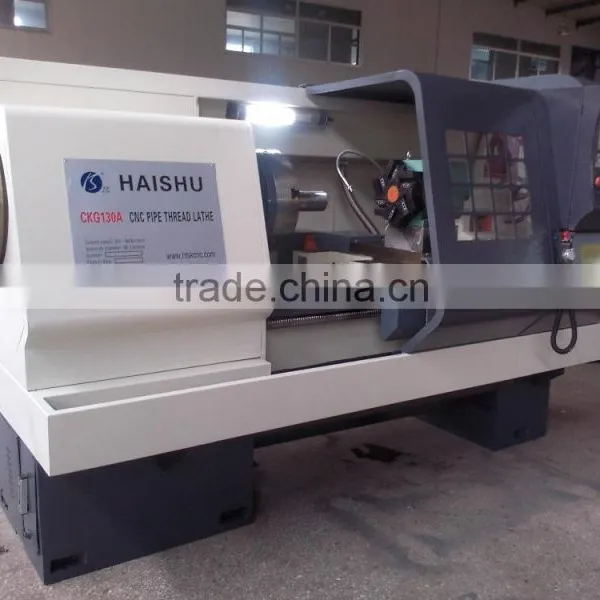

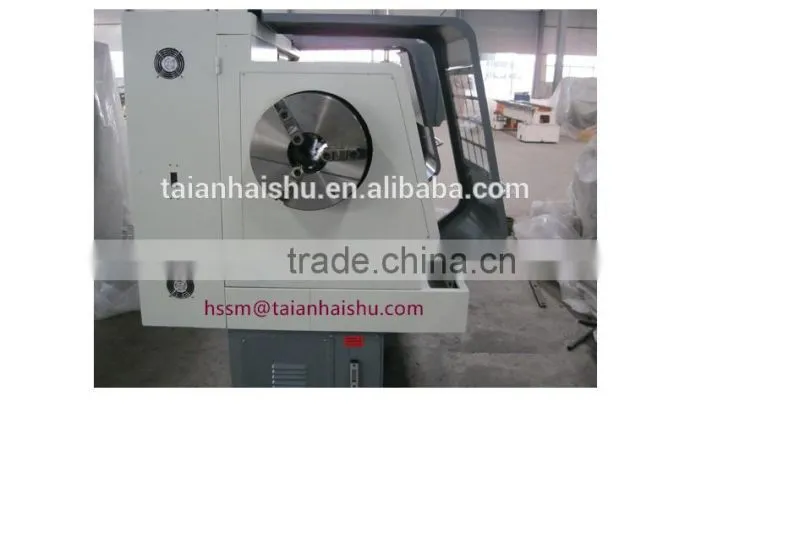

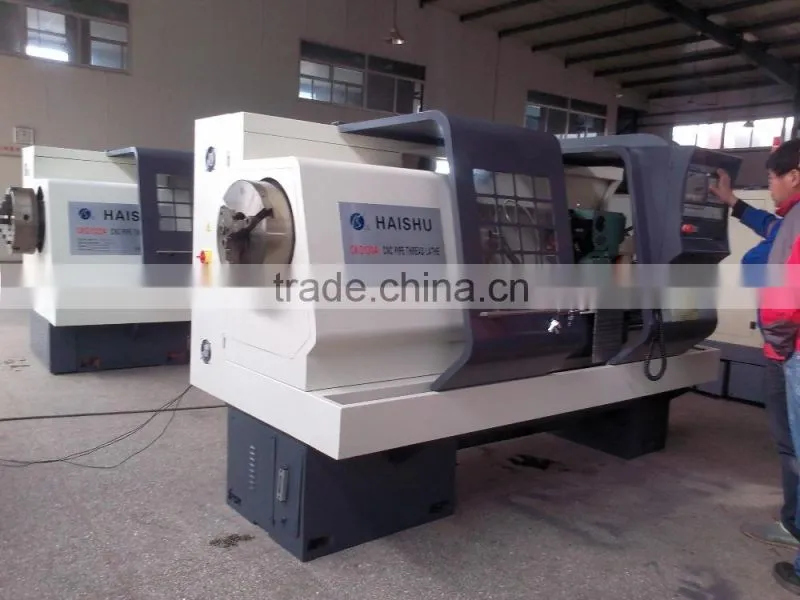

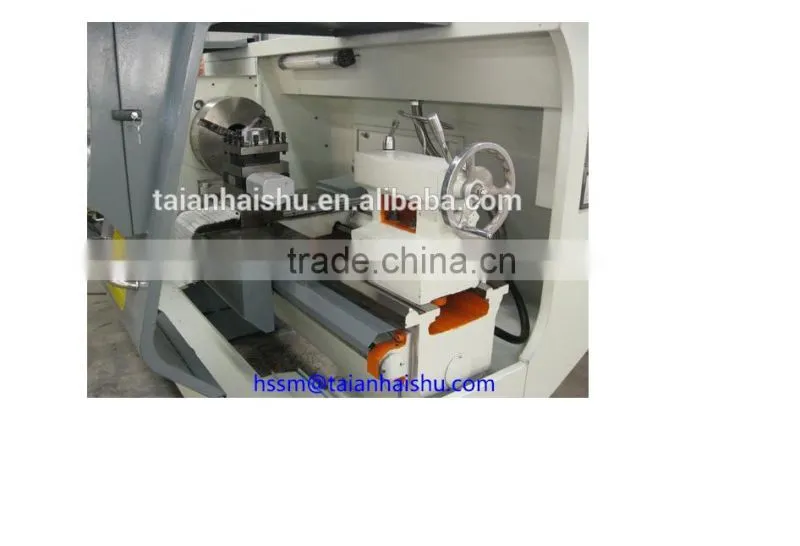

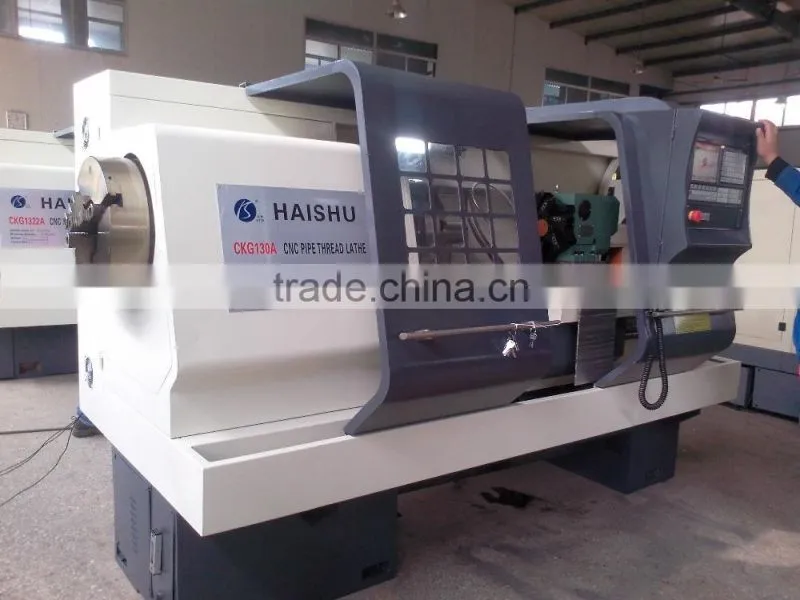

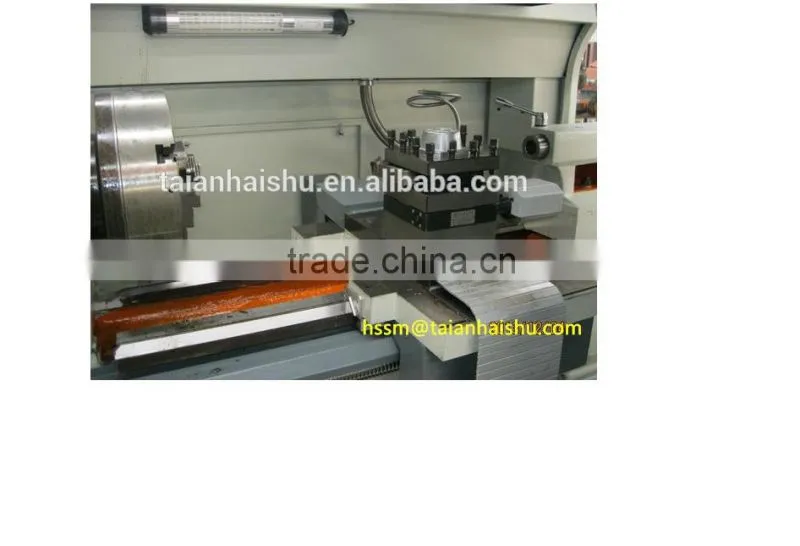

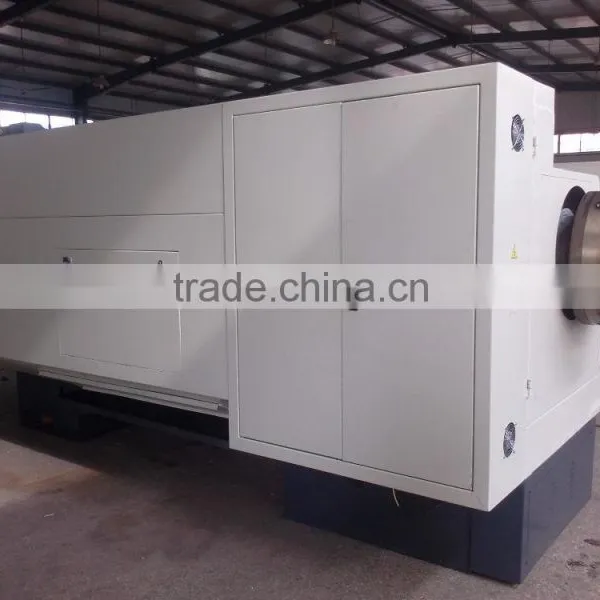

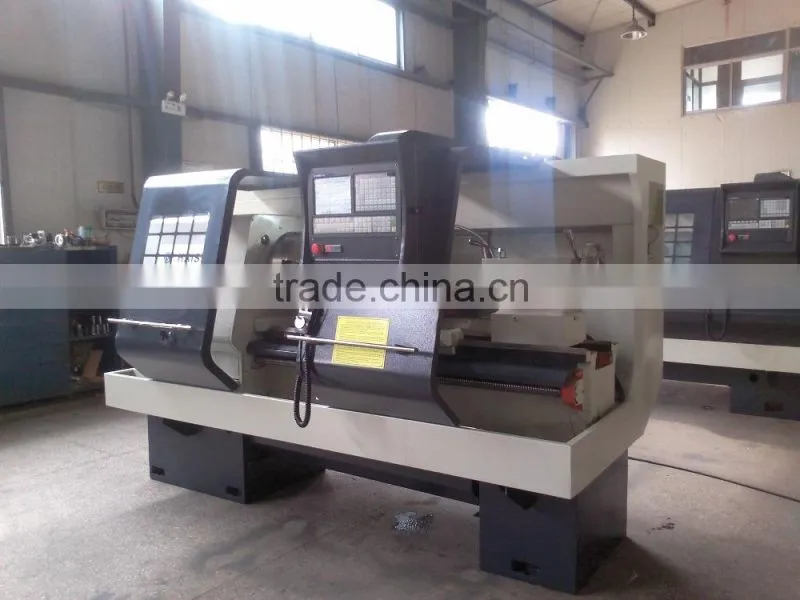

stainless steel tube polishing machine CKG130A CNC Oil Country Pipe threading lathe
Project |
Unit |
Specification |
Lathe Maxswing diameter |
mm |
φ610 |
Maximum turning length |
mm |
1000 |
Maximum processingoutside diameter of pipe |
mm |
φ127 |
Spindle bore |
mm |
φ130 |
Number of spindle speeds |
|
Servo Promise |
×/ZServo motor torque |
N.m |
4/6 |

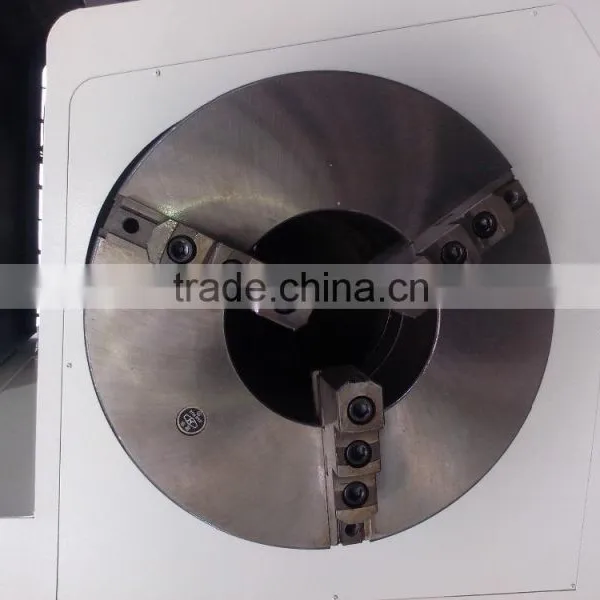

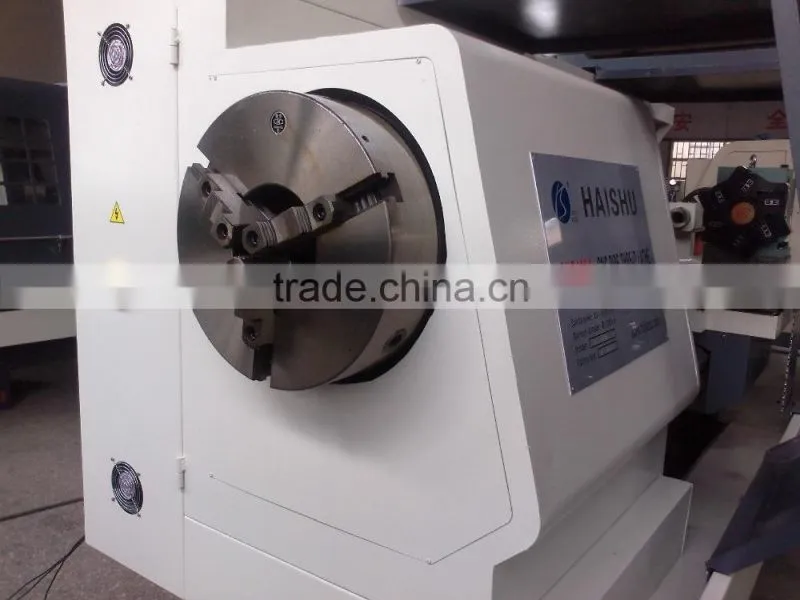

Chuck form |
|
Three-jaw chuck |
Chuck diameter |
mm |
φ400 |

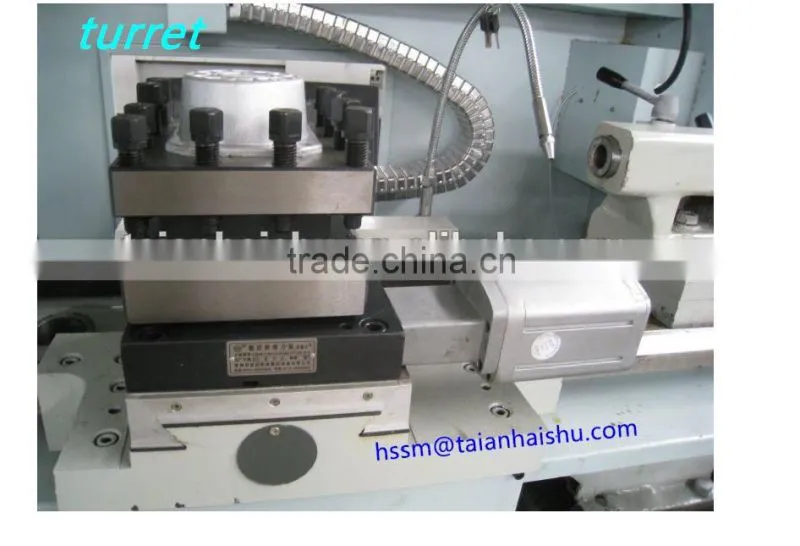

Turret form |
|
Four-station |
Tool section size |
mm |
25×25 |
×/ZRapid traverse |
m/min |
4/4 |
Tailstock quill diameter |
mm |
φ75 |
Tailstock quill stroke |
mm |
150 |
Tailstock sleeve taper |
|
MT5 |
Spindle center to theheightoftherail |
mm |
305 |
Main motor |
|
Servo motor 7.5KW 3000r/min |
Machine weight |
Kg |
2600 |
Machine outline size (L × W× H) |
mm |
2650×1450×1700 |

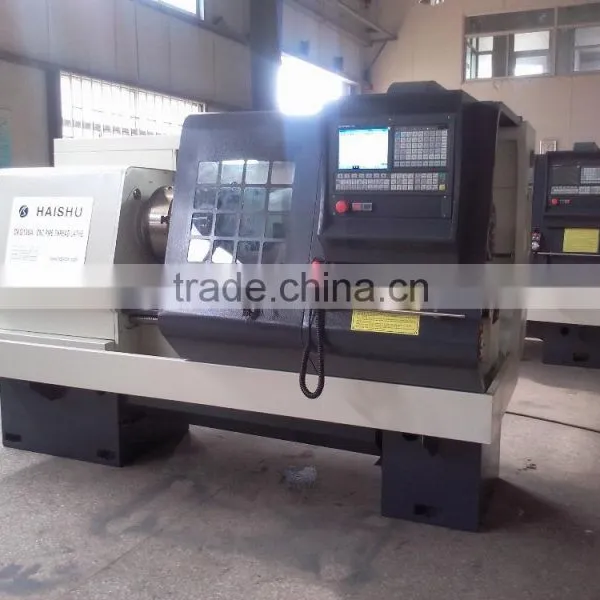

CNC system |
|
KND100Ti/GSK980TA(Optional) |
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is welcome.
If you are interested in stainless steel tube polishing machine CKG130A CNC Oil Country Pipe threading lathe, welcome to leave a message or send the inquiry to understand the details of machine.
