Free sample RUIAO 80H drag chain
Product Description
some model specification can be offered, according to your requirement ,some datas can be different
TYPE |
H*W(I) |
H*W(O) |
R |
Pitch |
Non-support Length |
TYPE |
TEZ80*100D |
80*100 |
111*151 |
200 250 300 350 400 500
|
110 |
13 |
Bridge Enclosed |
TEZ80*125D |
80*125 |
111*176 |
13 |
|||
TEZ80*150D |
80*150 |
111*201 |
15 |
|||
TEZ80*175D |
80*175 |
111*226 |
15 |
|||
TEZ80*200D |
80*200 |
111*251 |
17 |
|||
TEZ80*250D |
80*250 |
111*301 |
20 |
|||
TEZ80*300D |
80*300 |
111*351 |
20 |

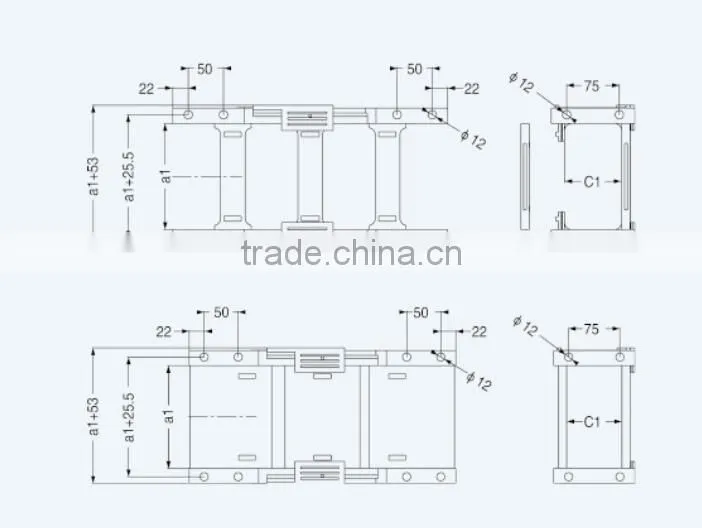

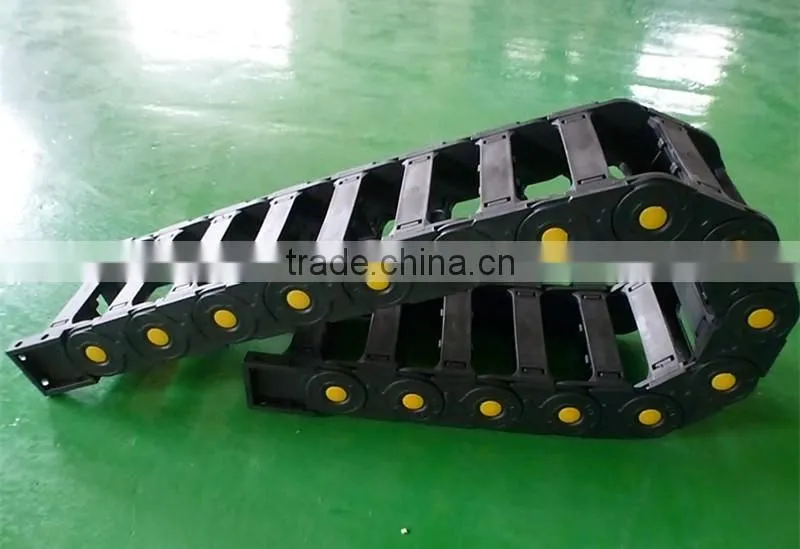

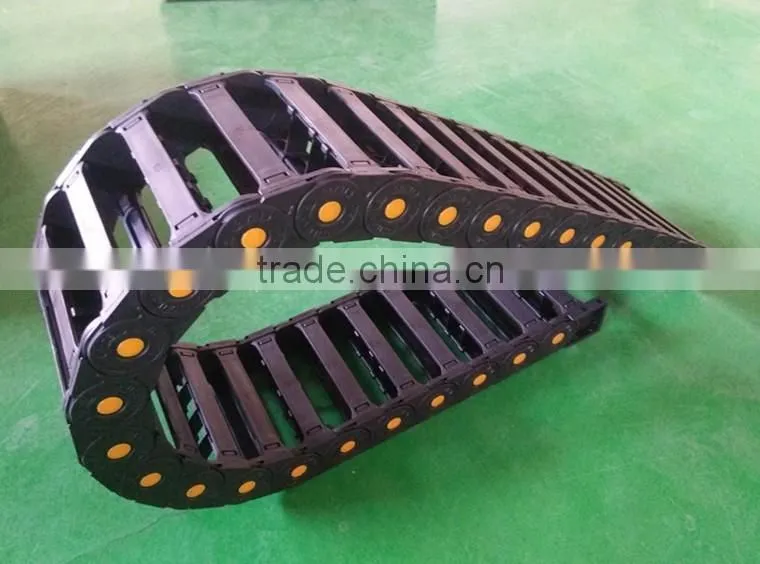

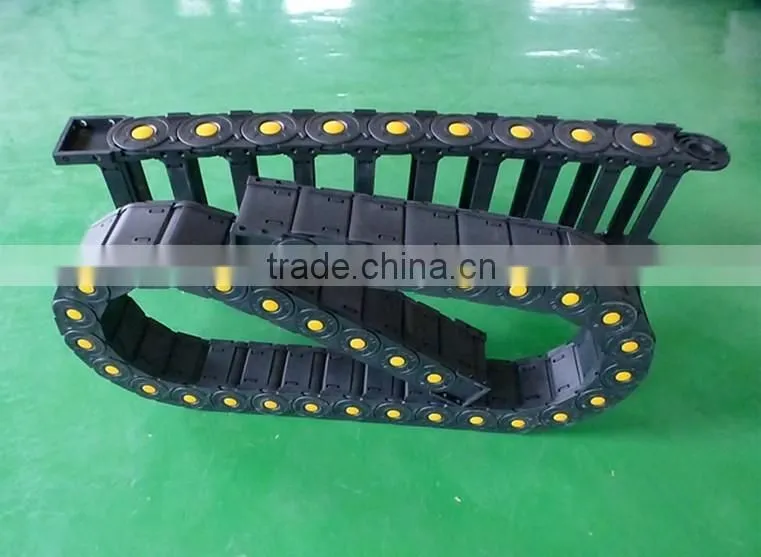

Detailed Images
Guide for type selection of RUIAO flexibledrag chain
1.Material: steel cable drag chain, stainless steel cable drag chain, nylon towline cable drag chain.
2.Function: single row type, compound rows type, enclosed type,anti-noise type, S-type
3.Environment:oil/rain/salt/humidity/rubbish/high-TEMP/low-TEMP/load-bearing/long travel range/low noise~
4.Assembly: Unitary type,bridge type, semi enclosed type,total enclosed type.
5.RUIAO size: TP/TEZ/TLZ/TLJ/TLC/TL/TLG/JR-2/DGT
Brief introduction of RUIAO flexible drag chain
1. The cableveyor is assembled by single unit, each unit can be disassembled easily by the flat screwdriver, Welcome ask us for installation video!
2. For the same series,
they have the same'height'and pitch, while the width and bending radius can be difference,
you can choose the most suitable one according to our parameter list below,
or ask us to help you choose the right one at any time~
3. Above TEZ35*50 size,in order to manage your moving wires and tubes,you can add separators.
4. When the length of the cable drag chain is more than 7meters per piece, pls add support roller or guide bridge
1. SMOOTH MOVEMENT
2. EASY TO INSTALL
3. RESISTANT TO DUST.OIL AND CORROSIVE MATERIAL
4. FLEXIBLE
5.NO INVENTORY COST
6.ZERO MAINTENANCE
7. EASY TO CHOOSE SIZE
8. MORE THAN 2000KINDS OF MOLD HERE
9.LEAD TIME 1~7DAYS
10. KIND-HEARTED RUIAO PEOPLE
No purchase experience about cable drag chain before? no related datum in hand?
Do not worry, dear friend, let me help you to choose the best one~
First step:show me your target inside height and width
Second step: show me your target outside height and width
Third step :choose bridge type or enclosed type
Forth step: choose a suitable bending radius
Fifth step: provide me the quantity (meters of the chain and pairs of the end connector)
Sixth step: place the order
Principle for selecting cable drag chain
inner height :take the most thick piece of the internally installed cable ,oil pipe,gas pipe or water pipe as the reference height plus 10%of the space height at least as the inner height HI.if overlapping ,take the overlapped height as the actual height .
inner width :take the sum of the outside diameter of the thicker cables ,oil pipe,gas pipe or water pipe as the reference of the inner width and leave at least 10% of the space as a margin
radius of a bend :take the biggest radius of a bend of a cable ,oil pipe,gas pipe or water pipe as a reference value and leave 10%of the space as a margin
Instruction principles for internally laid cable ,oil pipe ,water pipe or gas pipe
15%of the space should be reserved as a margin so that the internally laid cables and oil pipes can move freely and there will not be any stress on the drag chains in the direction of radius .
for those cables that are quite different in diameter ,they should be laid separately and the weight should be balanced evenly .they can also be separated from each other by using spacers if necessary
when operating in high speed or high frequency ,the horizontally laid cables should be in a parted way and should not be overlapped ,if too many cables ,gas pipes and oil pipes laid together ,it is recommended that spacers be used
Installation for cable drag chain
Put a screw driver vertically into the opening hole at both ends of the cover and then open the cover .put the drag chain for cables and oil pipes according to the instructions provided .put the cover back .note that the fixed end and the moving end of a cable should be fixed by using a tension device.
when used in a long sliding service ,it is recommended to use a guiding grove,please ask our technical personnel about the usage of the guiding grove.
Characteristics and Applications of cable drag chain
The product can be used for such locations where repciprocating motions are required so that internally installed cables,oil pipes,gas tubes and water tubes can be draged and protected.
Each joint of the chain can be opened up so as to facilitate repairs and maintenance. It gives low noises and is of antiwearing while running. It can also be operated under high speed.
The drag chains have already extensively used in digital-controlled machine tools,electronic equipement,machinery for stone industry,machinery for glass industry,machinery for doors and windows,moulding injectors,manipulators,lifting and transport equipment and automatic warehouses,etc.

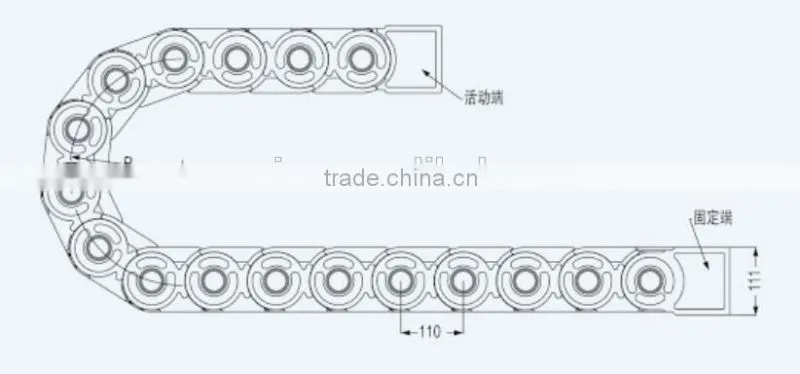

Construction of the cable drag chain
The appearance of the chain looks like the crawler of a tank consisting of certain number of joints.The joints of crawler are freely turned round.
The same series of chain has same inner height and out height and same pitch but the inner height and bend radius R can be made per different specifications.
A unit chain joint is consisting of a left-right chain plate and a updown cover. Each chain joint can be opened up so as to facilitate assembly and dismantal without threading.Cables,oil pipes and ga pipes can be put into the drag chain after the cover plate is opened.
Spacers are available for use, which are able to divide the space inside the chain into divisions according to requirements
Basic parameters of cable drag chain
Material:reinforced nylon. It can stand with high pressure and has good tensile
strength,toughness and elasticity,wearing and falmable resistance
Resistances:It is oil and salt resistant.
operating speed and acceleration :Max.operating speed is 5m/sec.and max.acceeleration is 5m/sec.(specfic speed and acceleration depends on specific situation).
Service life: Under normal conditions,5million reciprocating motions can be reached (which is also related to the operating conditions.)
your wise choice of RUIAO,more than200 kinds of types can be offered,thank you for choosing,here,you can get any machine tools within 24hours,just believe me~
1. Whether raw materials is guaranteed?
Reply: we have stable supplier for our raw materials about decades, performance test reports can be provided if necessary
2. How to determine the model ?
Reply: we have professional and technical personnels to help you match the optimal strategy .
3. What is the life of the product?
Reply: with the high-performance raw materials and high-end processing machinery,we ensure the lifetime will be more than three years in the normal use.
4.how about the salesman service ?
Reply: we have the Service Department,Manager zhao will be ready for you in 24h everyday,QQ:1826839662 T:+863174958927
5. Are you the real manufacturer ?
Reply: our plant is located in Zhifangtou Industrial Estate, here is the gathering place for processing enterprises,welcome to HEBEI RUIAO!
6. how to choose a suitable size ?
Reply: the detail catalog can show out the whole sizes which can be offered at once.
7.can you suggest me a suitable type?
Reply: certainly, all the ESQ are professional ones in machine tools, once you provide some key words, the most suitable size can be choosen to meet your need.
8.what about the delivery time?
Reply: to be a big manufacture, the stock is really large, once your choice is about the model products, the time will be with three days, while, considering the customized ones, a week is the up line.
9.what your worktime?
Reply: all the time, any request should be replied within 24hours.
10.what’s your main market?
Reply: Europe and America, well, any countries can be our good buyer
11.do you have any angency outside CHINA?
Reply:all the RUIAO products sell out from the factory, so the price will be similar to every buyer.
12. what is your publicity campaigns?
Reply: by attending international exhibition
Have any questions, please contact the official customer service~~~
