Free sample cnc drag chain carrier cable chain for cnc machine
some model specification can be offered, according to your requirement ,some datas can be different
| TYPE | H*W(I) | H*W(O) | R | P | Non-support L | TYPE |
| TEZ35*50D | 35*50 | 58*77 |
75 100 125 150 200 250
|
66 | 8 |
Bridge/ Enclosed |
| TEZ35*75D | 35*75 | 58*102 | 8 | |||
| TEZ35*100D | 35*100 | 58*127 | 10 | |||
| TEZ35*125D | 35*125 | 58*152 | 10 | |||
| TEZ35*150D | 35*150 | 58*177 | 12 | |||
| TEZ35*175D | 35*175 | 58*202 | 12 | |||
| TEZ35*200D | 35*200 | 58*227 | 15 |
| TYPE | H*W(I) | H*W(O) | R | P | Non-support L | TYPE |
| TEZ45*50D | 45*50 | 68*79 |
75 100 125 150 200 250
|
66 | 8 |
Bridge/ Encolsed |
| TEZ45*75D | 45*75 | 68*104 | 8 | |||
| TEZ45*100D | 45*100 | 68*129 | 10 | |||
| TEZ45*125D | 45*125 | 68*154 | 10 | |||
| TEZ45*150D | 45*150 | 68*179 | 12 | |||
| TEZ45*175D | 45*175 | 68*204 | 12 | |||
| TEZ45*200D | 45*200 | 68*229 | 15 |
| TYPE | H*W(I) | H*W(O) | R | P | Non-support L | TYPE |
| TEZ56*100D | 56*100 | 83*139 |
150 200 250 300 350 400 500
|
91 | 8 |
Bridge Enclosed |
| TEZ56*125D | 56*125 | 83*164 | 8 | |||
| TEZ56*150D | 56*150 | 83*189 | 10 | |||
| TEZ56*175D | 56*175 | 83*214 | 10 | |||
| TEZ56*200D | 56*200 | 83*239 | 12 | |||
| TEZ56*250D | 56*250 | 83*289 | 15 | |||
| TEZ56*300D | 56*300 | 83*339 | 15 |
| TYPE | H*W(I) | H*W(O) | R | P | Non-support L | TYPE |
| TEZ65*100D | 65*100 | 95*147 |
150 200 250 300 350 400 500
|
96 | 8 |
Bridge/ Enclosed |
| TEZ65*125D | 65*125 | 95*172 | 8 | |||
| TEZ65*150D | 65*150 | 95*197 | 10 | |||
| TEZ65*175D | 65*175 | 95*222 | 10 | |||
| TEZ65*200D | 65*200 | 95*247 | 12 | |||
| TEZ65*250D | 65*250 | 95*297 | 15 | |||
| TEZ65*300D | 65*300 | 95*347 | 15 |
| TYPE | H*W(I) | H*W(O) | R | P | Non-support L | TYPE |
| TEZ80*100D | 80*100 | 111*151 |
200 250 300 350 400 500
|
110 | 13 |
Bridge/ Enclosed |
| TEZ80*125D | 80*125 | 111*176 | 13 | |||
| TEZ80*150D | 80*150 | 111*201 | 15 | |||
| TEZ80*175D | 80*175 | 111*226 | 15 | |||
| TEZ80*200D | 80*200 | 111*251 | 17 | |||
| TEZ80*250D | 80*250 | 111*301 | 20 | |||
| TEZ80*300D | 80*300 | 111*351 | 20 |
Guide for type selection of cnc drag chain carrier cable chain
1.Material: steel cable drag chain, SS cable drag chain, nylon cable drag chain.
2.Function: single row type, compound rows type, enclosed type,anti-noise type, S-type
3.Environment:oil/rain/salt/humidity/rubbish/high-TEMP/low-TEMP/load-bearing/long travel range/low noise~
4.Assembly: Unitary type,bridge type, semi enclosed type,total enclosed type.
5.RUIAO size: TP/TEZ/TLZ/TLJ/TLC/TL/TLG/JR-2/DGT
Brief introduction of cnc drag chain carrier cable chain
1. The cable chain is assembled by single unit, each unit can be disassembled easily by the flat screwdriver, welcome ask us for installation video!
2. For the same series,
they have the same'height'and pitch, while the width and bending radius can be difference,
you can choose the most suitable one according to our parameter list below,
or ask us to help you choose the right one at any time~
3. Above TEZ35*50 size,in order to manage your moving wires and tubes,you can add separators.
4. When the length of the cable tray is more than 7meters per piece, pls add support roller or guide bridge
No purchase experience about cable drag chain before? no related datum in hand?
First step:choose the material first
Second step: show me your target inside height and width
Third step :choose bridge type or enclosed type
Forth step: choose a suitable bending radius
Fifth step: provide me the QTY
Sixth step: place the order
CE /ROHS/ISO9001:2008
you can ask for any detail pictures about our products,these are some normal ones.

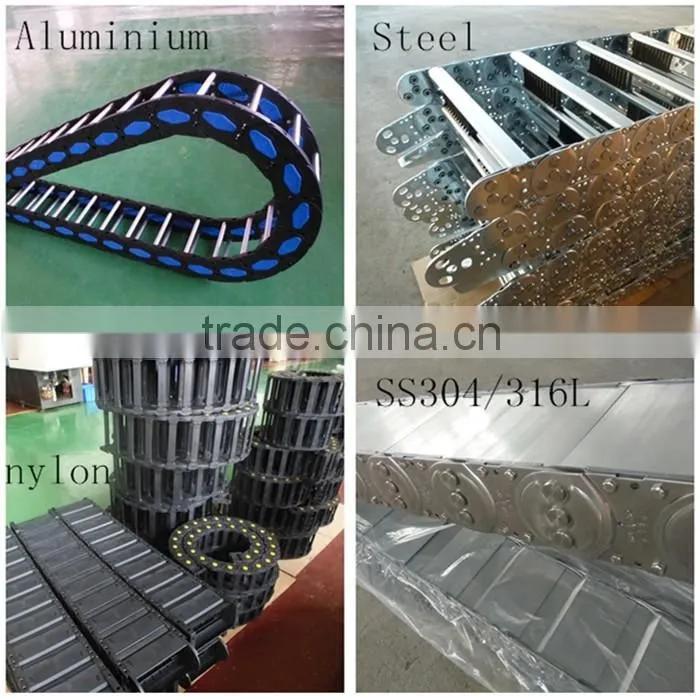

Step1. Choose material

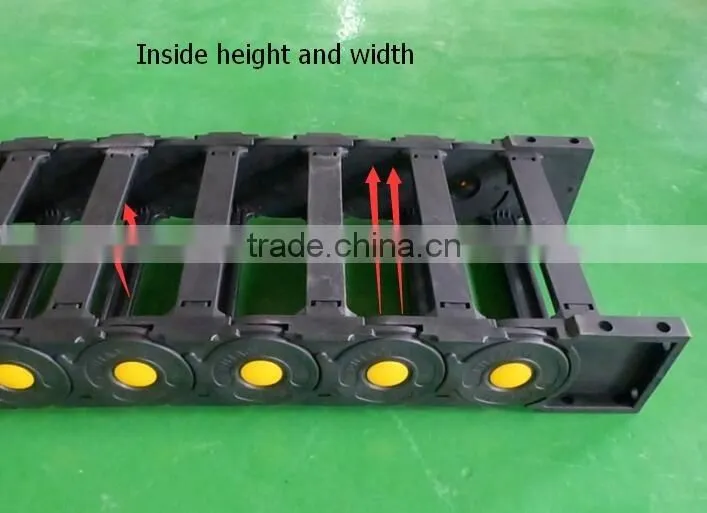

Step 2: Inside Height*Width

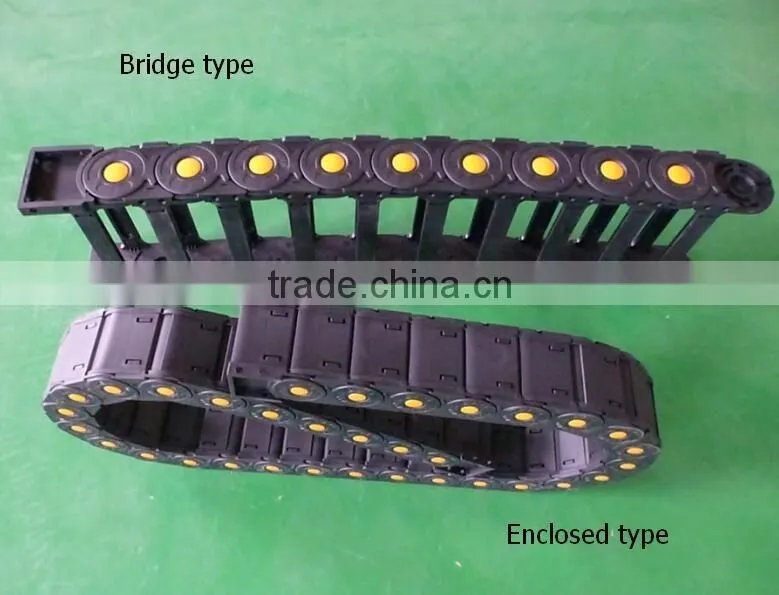

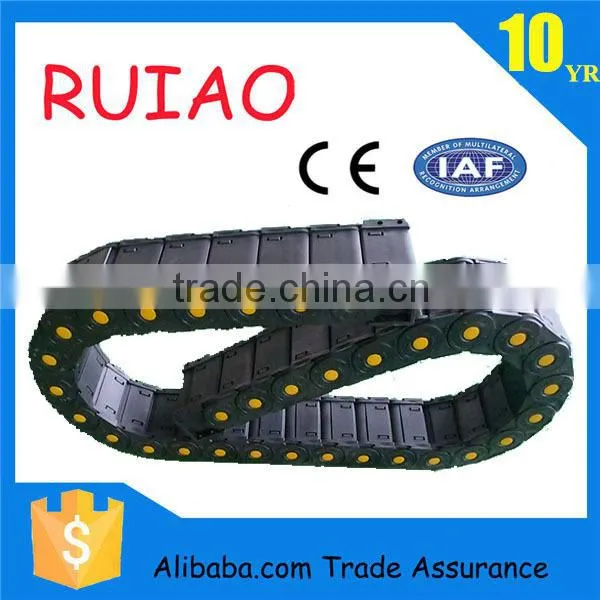

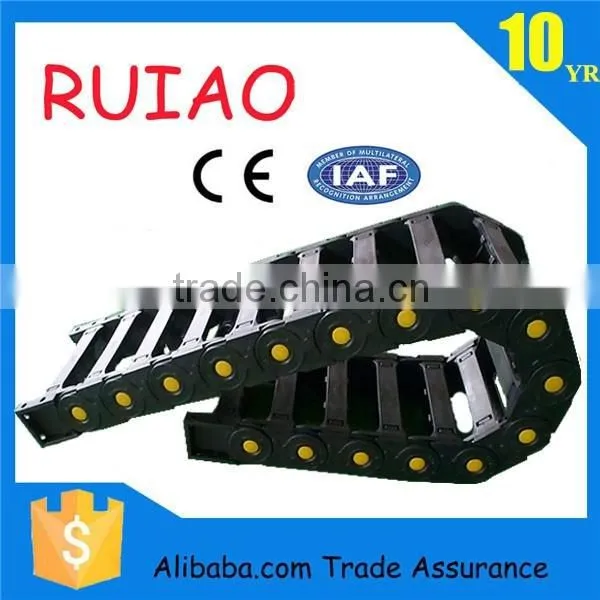

Step 3: Bridge or enclosed

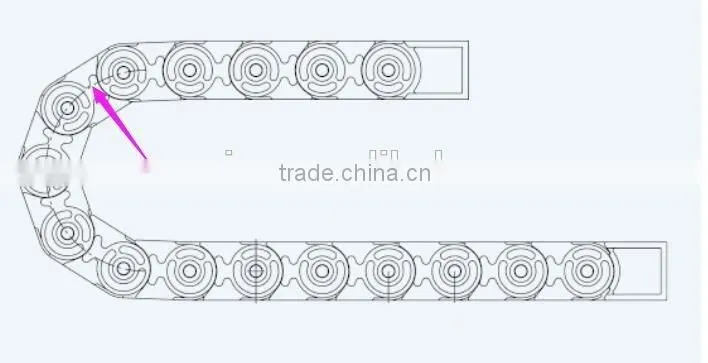

Step 4: Choose the Bending Radius
help the buyers to choose the suitable type,solve any question about the product, offer the related drawings,try our best to complete the order
Principle for selecting cnc cable carrier supplier cnc drag chain carrier cable chain
inner height :take the most thick piece of the internally installed cable ,oil pipe,gas pipe or water pipe as the reference height plus 10%of the space height at least as the inner height HI.if overlapping ,take the overlapped height as the actual height .
inner width :take the sum of the outside diameter of the thicker cables ,oil pipe,gas pipe or water pipe as the reference of the inner width and leave at least 10% of the space as a margin
radius of a bend :take the biggest radius of a bend of a cable ,oil pipe,gas pipe or water pipe as a reference value and leave 10%of the space as a margin
Instruction principles for internally laid cable ,oil pipe ,water pipe or gas pipe
15%of the space should be reserved as a margin so that the internally laid cables and oil pipes can move freely and there will not be any stress on the drag chains in the direction of radius .
for those cables that are quite different in diameter ,they should be laid separately and the weight should be balanced evenly .they can also be separated from each other by using spacers if necessary
when operating in high speed or high frequency ,the horizontally laid cables should be in a parted way and should not be overlapped ,if too many cables ,gas pipes and oil pipes laid together ,it is recommended that spacers be used
Installation for cnc drag chain carrier cable chain
Put a screw driver vertically into the opening hole at both ends of the cover and then open the cover .put the drag chain for cables and oil pipes according to the instructions provided .put the cover back .note that the fixed end and the moving end of a cable should be fixed by using a tension device.
when used in a long sliding service ,it is recommended to use a guiding grove,please ask our technical personnel about the usage of the guiding grove.
Characteristics and Applications of cnc drag chain carrier cable chain
The product can be used for such locations where repciprocating motions are required so that internally installed cables,oil pipes,gas tubes and water tubes can be draged and protected.
Each joint of the chain can be opened up so as to facilitate repairs and maintenance. It gives low noises and is of antiwearing while running. It can also be operated under high speed.
The drag chains have already extensively used in digital-controlled machine tools,electronic equipement,machinery for stone industry,machinery for glass industry,machinery for doors and windows,moulding injectors,manipulators,lifting and transport equipment and automatic warehouses,etc.

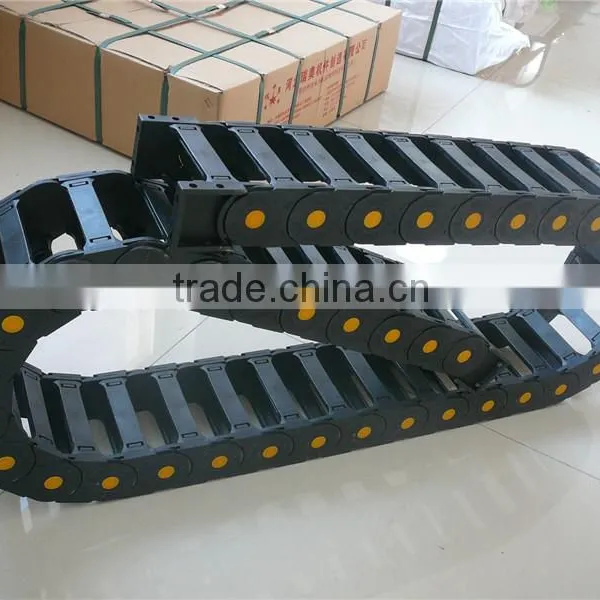

Construction of the cnc drag chain carrier cable chain
The appearance of the chain looks like the crawler of a tank consisting of certain number of joints.The joints of crawler are freely turned round.
The same series of chain has same inner height and out height and same pitch but the inner height and bend radius R can be made per different specifications.
A unit chain joint is consisting of a left-right chain plate and a updown cover. Each chain joint can be opened up so as to facilitate assembly and dismantal without threading.Cables,oil pipes and ga pipes can be put into the drag chain after the cover plate is opened.
Spacers are available for use, which are able to divide the space inside the chain into divisions according to requirements
Basic parameters of cnc drag chain carrier cable chain
Material:reinforced nylon. It can stand with high pressure and has good tensile
strength,toughness and elasticity,wearing and falmable resistance
Resistances:It is oil and salt resistant.
operating speed and acceleration :Max.operating speed is 5m/sec.and max.acceeleration is 5m/sec.(specfic speed and acceleration depends on specific situation).
Service life: Under normal conditions,5million reciprocating motions can be reached (which is also related to the operating conditions.)
