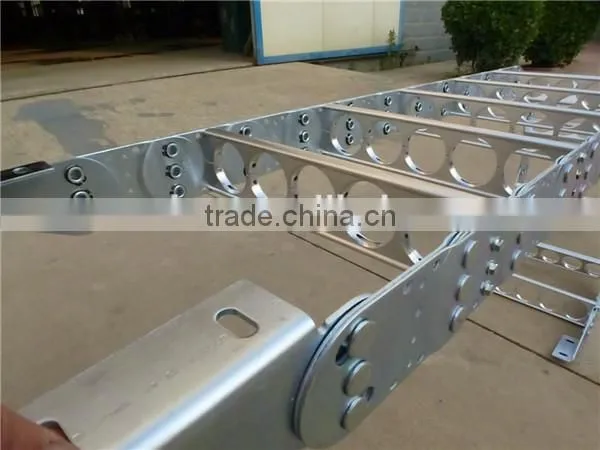

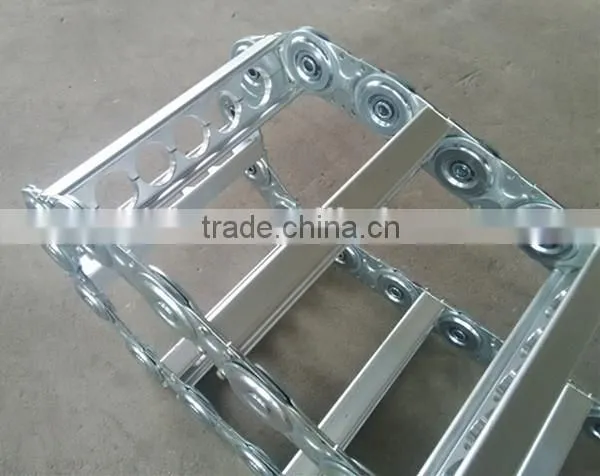

RUIAO TL steel flexible cable guide for heavy duty application
Steel cable guide includes TL type and TLG type,the material is carbon steel side plate and aluminium alloy isolation plate (assembled by the two ).they are mainly used to protect the pipes and wire of heavy huge machinery and equipment.
RUIAO manufactures world-class load bearing cable guide . We offer our services in selection and assembly as well, which needs experience and knowledge in the cable field in general and the area of assembly in particular. This lets you concentrate on doing your job without stress, letting the RUIAO team take care of selecting the types and components.
Order sample of steel cable guide :
1.Inside H*W
2.Bending raduis
3. Length
4.Frame type

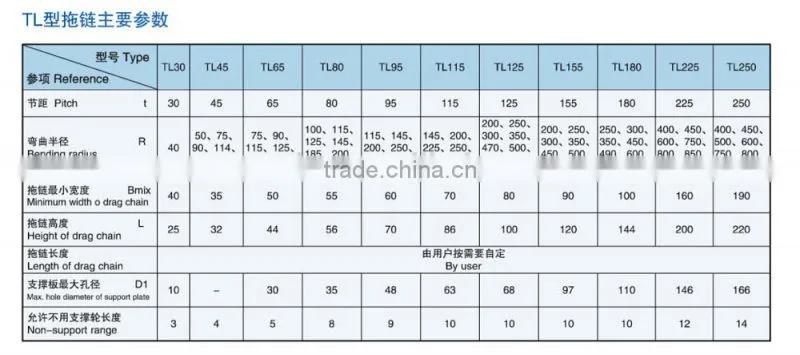

some model specification can be offered, according to your requirement ,some datas can be different

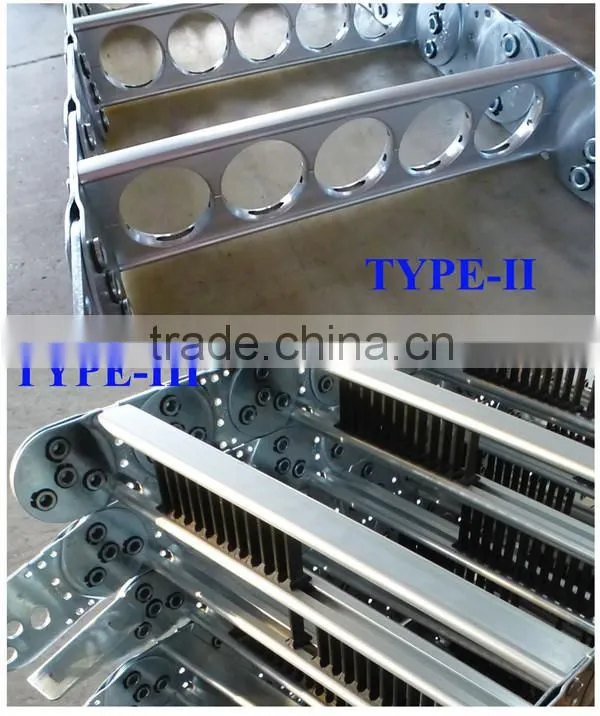

You can order TYPE-II with some holes on the supporting frame
You can order TYPE-III with some separators on the supporting frame
Instruction principles for internally laid cable ,oil pipe ,water pipe or gas pipe
15%of the space should be reserved as a margin so that the internally laid cables and oil pipes can move freely and there will not be any stress on the drag chains in the direction of radius .
for those cables that are quite different in diameter ,they should be laid separately and the weight should be balanced evenly .they can also be separated from each other by using spacers if necessary
when operating in high speed or high frequency ,the horizontally laid cables should be in a parted way and should not be overlapped ,if too many cables ,gas pipes and oil pipes laid together ,it is recommended that spacers be used
Main feature
1.Material:carbon steel. It can stand with high pressure and has good tensile strength,
toughness and elasticity,wearing and falmable resistance
2.Resistances:It is oil and salt resistant.
3.operating speed and acceleration :Max.operating speed is 5m/sec.and max.acceeleration is 5m/sec.(specfic speed and acceleration depends on specific situation).
4.Service life: Under normal conditions,5million reciprocating motions can be reached (which is also related to the operating conditions.)
your wise choice of RUIAO,more than200 kinds of types can be offered,thank you for choosing,here,you can get any machine tools within 24hours,just believe me~
Click here for more technical support~
