Home > Electrical & Electronics > Sensor > Pressure Sensor > Mini Aluminum Alloy Load Cell

Mini Aluminum Alloy Load Cell

Name: Mini Aluminum Alloy Load Cell
Brand: GOLDSHINE
SKU: 128761295

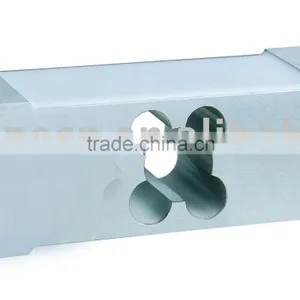

Mini Aluminum Alloy Load Cell thumbnail-1

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Japan

Brand Name:

GOLDSHINE

Model Number:

AM632

Contact Supplier Request Quote Chat Now

Ningbo Goldshine Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Japan

Brand Name GOLDSHINE

Model Number AM632

Usage Pressure Sensor

Theory Inductance Sensor

Output Analog Sensor

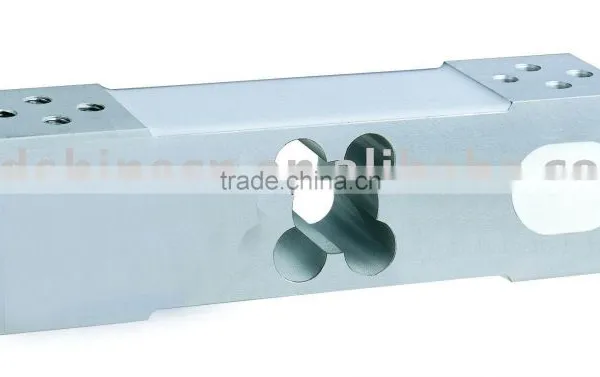

Aluminum alloy load cell/ Min sensor AM632

Product Characteristics:

AM632 Aluminum-alloy;Colorless anodized; Hermetically sealed with glue to IP65. Application Electronic counting scales, platform scales etc.

Technical Parameter:

Capacity	60Kg~350Kg
Outline size	35×40×150
Rated output	2.0mv/V±5%
Zero balance	±2%R.O.
Non-linearity	±0.015%R.O.
Hysteresis, Non-Repeatability	±0.02%R.O.
Creep(30 minute)	±0.02%R.O.
Temperature Compensated For Output	±0.03%R.O./10
Temperature Compensated For Zero	±0.03%R.O./10
Input resistance	405±10Ω
Output resistance	350±3Ω
Insulation Resistance	≥5000MΩ
Temperature Compensated	-10to+40
Operating Temperature Range	-20to+60
Excitation, recommended	5~12VDC
Excitation, maximum	18VDC
Safe overload	150%.R.C
Cable, and length	1.5m(φ5mm)

Note: The length of the cable can be adjusted according to customers requirement, but we suggest to use this standard length to ensure the output precision.
