30kg Aluminum Electronic Load Cell AM629
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GOLDSHINE
Model Number:
AM629
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
GOLDSHINE
Model Number
AM629
Usage
Pressure Sensor
Theory
Inductance Sensor
Output
Digital Sensor

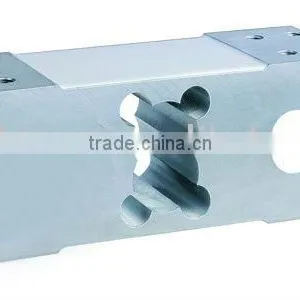

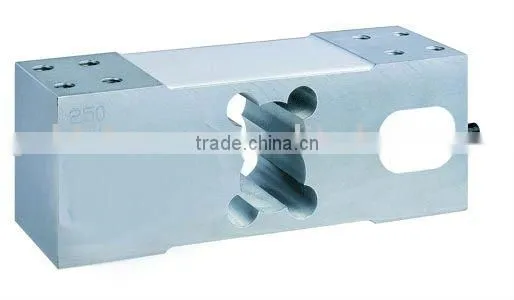

Aluminum alloy load cell/ Min sensor AM629
AM629 Aluminum-alloy; Colorless anodized; Hermetically sealed with glue to IP65. Applications for electronic counting scales, platform scales etc
Parameters:
| Capacity | 60kg - 800Kg |
| Outline size | 64*60*174 |
| Rated output | 2.0mv/V±5% |
| Zero balance | ±2%R.O. |
| Non-linearity | ±0.015%R.O. |
| Hysteresis,Non-Repeatability | ±0.02%R.O. |
| Creep(5 minute) | ±0.02%R.O. |
| Temperature Compensated For Output | ±0.03%R.O./10 |
| Temperature Compensated For Zero | ±0.03%R.O./10 |
| Input resistance | 405±10Ω |
| Output resistance | 350±5Ω |
| Insulation Resistance | ≥5000MΩ |
| Temperature Compensated | -10to+40 |
| Operating Temperature Range | -20to+60 |
| Excitation,recommended | 5~12VDC |
| Excitation,maximum | 18VDC |
| Safe overload | 150%.R.C |
| Cable,and length | 2m(φ5mm) |
Note: The length of the cable cab be adjusted according to customers requirement, but we suggest to use this standard length to ensure the output precision.
