AM630 -Pressure sensor:
Size: 192x43x76(mm) Thread hole: 8-M8
It uses 4-core shielded cable(f5x3000mm). The length of the cable can be adjusted according to clients' request, but we suggest to use this standard length to ensure the output precision.
Product Characteristics:

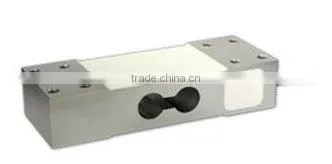

AM630 Aluminum-alloy sensor; Colourless anodized; Hermetically sealed with glue to IP65. Application Electronic counting scales, platform scales etc. Recommended Platform size: 600×600(mm).

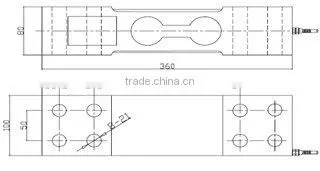

Dimensions:
.
AM630 -Pressure sensor:
Technical Parameter:
Rated load |
100/150/200/300/500/750/1000kg |
Comprehensive error: |
0.017%F.S & 0.02%F.S |
Rated output: |
1±0.1 & 2±0.1mV/V |
Non-linearity: |
0.017%F.S & 0.02%F.S |
Hysteresis: |
0.017%F.S & 0.02%F.S |
Repeatability: |
0.01%F.S & 0.02%F.S |
Creep: |
0.017%F.S/30min & 0.02%F.S/10min |
Zero balance: |
±1%F.S |
Input resistance: |
405±10Ω |
Output resistance: |
350±3Ω |
Insulation resistance: |
≥5000MΩ(100VDC) |
Excitation voltage: |
9VDC~12VDC |
Compensated temp. range: |
-10°C~+40°C |
Use temp. range: |
-20°C~+60°C |
Temp. effect on zero: |
0.017%F.S/10°C & 0.03%F.S/10°C |
Temp. effect on span: |
0.014%F.S/10°C & 0.02%F.S/10°C |
Safe overload: |
120% |
Ultimate overload: |
150% |
Defense class: |
IP65 |
Mode of Connection |
Red(Input+),Black(Input-),Green(Output+),White(Output-) |
Note: The length of the cable cab be adjusted according to customers’ requirement, but we
