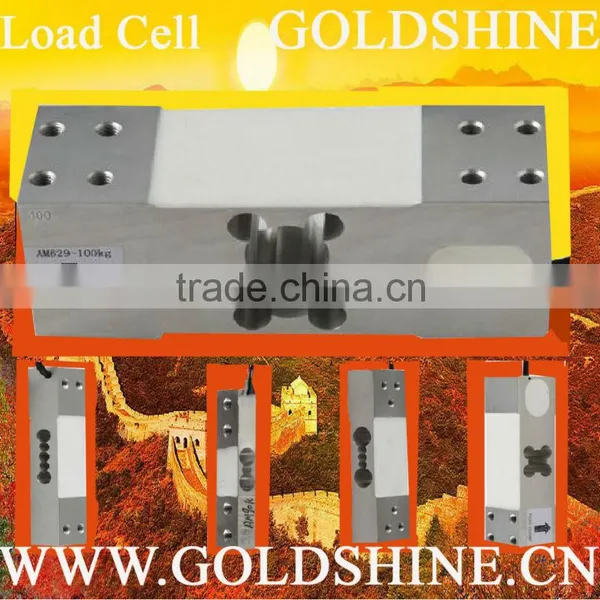

Help CenterMiniature Load Cell
US$ 36 - 240
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GOLDSHINE
Model Number:
AM601X
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
GOLDSHINE
Model Number
AM601X
Usage
Pressure Sensor
Theory
Inductance Sensor
Output
Digital Sensor
Rated load: 0.3~2(kg) |
Precision: C2 |
Size: 130x29x11 |
Thread hole: 4-M3 |
Comprehensive error: 0.02%F.S |
Insulation resistance: ≥5000MΩ(100VDC) |
Rated output: 2±0.1mV/V |
Excitation voltage: 9VDC~12VDC |
Non-linearity: 0.017%F.S & 0.02%F.S |
Compensated temp.range: -10~+40 |
Hysteresis: 0.02%F.S |
Use temp.range: -20~+60 |
Repeatability: 0.01%F.S & 0.02%F.S |
Temp.effect on zero: 0.017%F.S/10 & 0.03%F.S/10 |
Creep: 0.017%F.S/10min & 0.02%F.S/10min |
Temp.effect on span: 0.014%F.S/10 & 0.02%F.S/10 |
Zero balance: ±1%F.S |
Safe overload: 120% |
Input resistance: 405±10Ω |
Ultimate overload: 150% |
Output resistance: 350±3Ω |
Defense class: IP67&IP68 |
