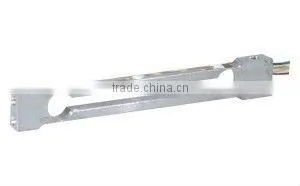

Help CenterAluminum Miniature Load Cell
Negotiable
MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GOLDSHINE
Model Number:
AMQ84
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum Load Cell AM90RUS$ 15 - 135MOQ: 10 Pieces -
Aluminum Alloy Load Cell /sensor AM629US$ 15 - 21MOQ: 10 Pieces
-
AM630 Aluminum Load CellUS$ 20 - 50MOQ: 10 Pieces
-
Durable Small Capacity 3kg Load Cell Sensor/AMAD-AUS$ 3 - 10MOQ: 200 Pieces
-
With High Precision China Mini Single Point Aluminum Load Cell AM601US$ 3.5 - 5MOQ: 50 Pieces
Place of Origin
Zhejiang, China
Brand Name
GOLDSHINE
Model Number
AMQ84
Usage
Pressure Sensor
Theory
Resistance Sensor
Output
Analog Sensor
Products Specification:
Model: |
AM2F |
Capacity: |
20,30,50,100g |
Combined Error: |
0.05 |
Output Sensitivity: |
0.5±0.15mV/V |
Non-Linearity: |
±0.05%F.S |
Repeatability: |
±0.05%F.S |
Hysteresis: |
±0.05%F.S |
Creep: |
±0.05 (3min)%F.S |
Temp.Effect On Zero: |
±2.0%F.S/10°C |
Temp.Effect On Span: |
≤+0.05%F.S/10°C |
Zero Balance: |
±0.5mV/V |
Input Resistance: |
1055±10Ω |
Output Resistance: |
1000±10Ω |
Insulation Resistance: |
≥2000MΩ(50V) |
Excitation Voltage: |
≤10V |
Operation Temp.Range: |
-10--+40°C |
Overload Capacity: |
150%F.S |
Recommended Application: |
Handable Scales |
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2008
Factory Size
Below 1,000 square meters
Total Employees
51 - 100 People
