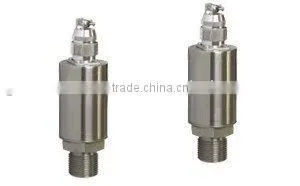

Help CenterElectronic Pressure Sensors YL15
Related Products
Specifications
1.Airproofed structure with high stability2.Small volume,light weight and very convenient to use
3.Material: Aluminum Alloy
Features:
High accuracy and high reliability
Airproofed structure with high stability
Small volume, light weight and very convenient to use
It's suitable for precision measuring all kinds of static states or the no-crystal liquid, gas and the high capacity pressure measurement that changes very slowly, It also can be used to match numeral pressure indicators or record instruments.
Specifications:
Capacity: |
MPa |
6/8/10/15 |
Output Sensitivity: |
mV/V |
1.5±0.2 |
Non-Linearity: |
%FS |
0.1 |
Non-Repeatability: |
%FS |
0.1 |
Hysteresis: |
%FS |
0.1 |
Temperature Effect On Zero: |
%FS/10°C |
0.1 |
Temperature Effect On Span: |
%FS/10°C |
0.1 |
Zero Balance: |
mV |
≤±1 |
Terminal Resistance, Output: |
Ω |
700±7 |
Insulation Resistance: |
MΩ |
≥1000(100VDC) |
Excitation, Recommended: |
V |
9-12(DC/AC) |
Excitation, Permission: |
V |
6-18(DC/AC) |
Temperature, Compensated: |
°C |
-10-+50 |
Temperature, Operating: |
°C |
-20-+65 |
Safe Overload: |
%FS |
150 |
Ultimate Overload: |
%FS |
200 |
Note

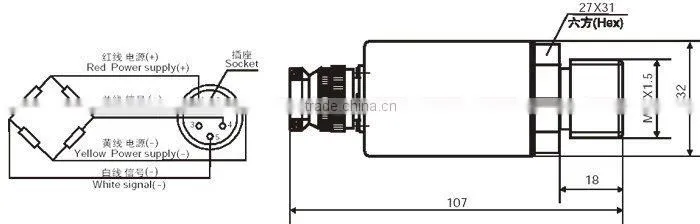

When installing please use the flat end airproofed connector with the screw thread of M20×1.5 (If the customers need the connector with other screw thread, please give the special order to the company).
The medium material that meets: Aluminum Alloy.
The pressure transducers are connected with indicator through sockets.
