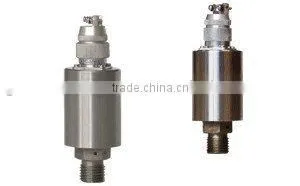

Help CenterPressur Transmitter and Sensor YB1
Related Products
Specifications
1.The medium material that meets:Stainless steel2.High accuracy and high reliability
3.suitable for precision measuring,gas
Features:
High accuracy and high reliability
Airproofed structure with high stability
Small volume, light weight and very convenient to use
It's suitable for precision measuring all kinds of static states or the no-crystal liquid, gas and the high capacity pressure measurement that changes very slowly. It also can be used to match digital pressure indicators or record instrument.
Specifications:
Capacity: |
MPa |
1/1.5/2/3/3.5/4/5/6/8/10/12/15/20 |
Non-Linearity: |
%FS |
0.1, 0.2 |
Hysteresis: |
%FS |
0.1, 0.2 |
Repeatability: |
%FS |
0.1, 0.2 |
Temperature Effect On Zero: |
%FS/10°C |
0.1, 0.2 |
Temperature Effect On Span: |
%FS/10°C |
0.1, 0.2 |
Terminal Resistance, Output: |
Ω |
350+3 |
Insulation Resistance: |
MΩ |
1000(100VDC) |
Output Sensitivity: |
mV/V |
1.0+0.1 |
Excitation, Recommended: |
V |
9-12 |
Excitation, Permission: |
V |
6-18 |
Temperature, Compensated: |
°C |
-10-+50 |
Temperature, Operating: |
°C |
-20-+65 |
Safe Overload: |
%FS |
120 |
Ultimate Overload: |
%FS |
150 |
Note:

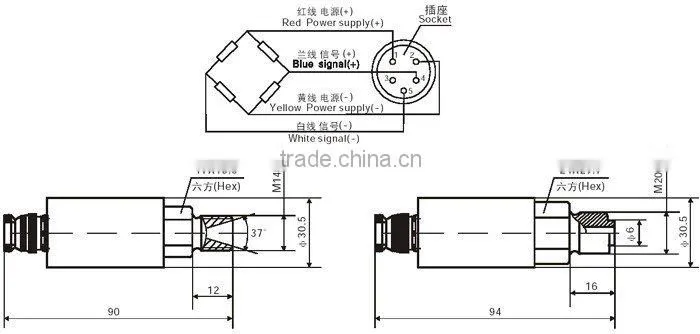

When installing please use the flat end airproofed connector with the screw thread of M14×1.5,inside
wimble is 37°(There is the screw thread of M20×1.5 for the customer to select)
The medium material that meets: Stainless steel
The pressure transducers are connected with indicator through sockets
