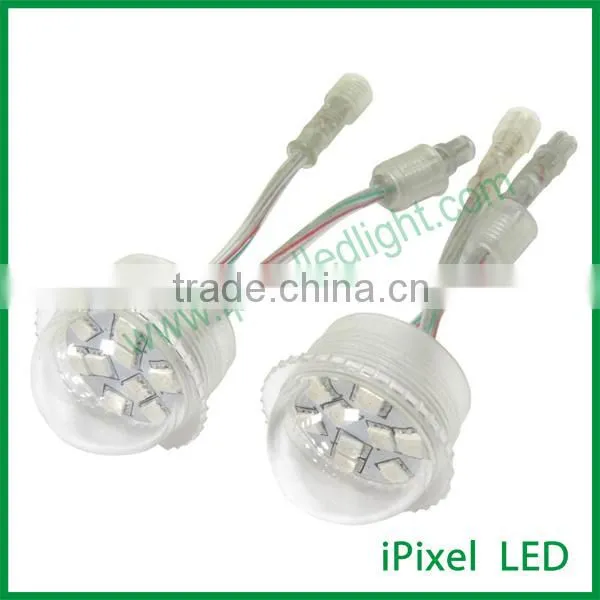

Shenzhen digital rgb 35mm pixel led node, ucs1903
1. Individually control: 6PCS LED & 1IC (UCS1903)

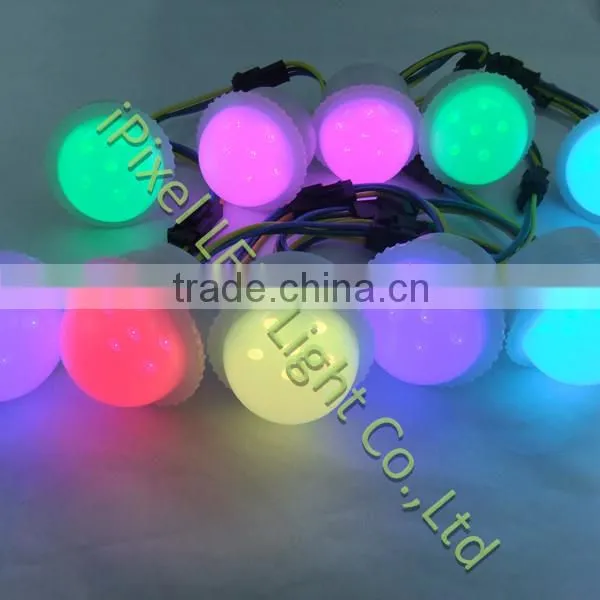

2. Color and effect: addressable lights you can set to any color, or animate, like running water,chasing
and scanning etc. depending on the different installation methods may compose different dynamic
effect of different color's character and design
3. Combination: PVC shell(thermostability, cold-resistant, resistant to UV) and PCB board, connector cables...
4. Waterproof: Yes IP66, with silicon glue waterproof protection.
5. Installation: Easy to install, you'd better drill the hole about 36 - 40mm.
6. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.
7. Power supply: You must use a 24V DC power supply to power this pixel, do not use higher than 25V
or you can destroy the entire pixel.
8. Connetors: 3PIN JST female and male connectors, also can be waterproof connectors, DAT, DC12V+, GND-,
each led pixel is seperate, you can connect them one by one via male and female connectors easliy.
9. Factory sales directly, good quality and price, offer 2 years warranty and quikly after-sale service.
10. Brand: iPixel LED
| Product Name | 35mm 6LEDs/pcs led pixels |
| Product No. | P356V24 |
| LED Chip | Epistar SMD 5050 RGB LED chip |
| IC Chip | UCS1903 |
| Input Voltage | DC24V |
| Watts | 1.44W/PCS |
| Cover Color | transparent cover, Milky cover |
| Connectors | 3PIN JST, also can be waterproof connectors |
| Beam angle | 140 |
| Certification | CE, RoHS |
| LED Qty | 6LEDs/pcs |
| Cable Length | 10cm usually, also can be customized |

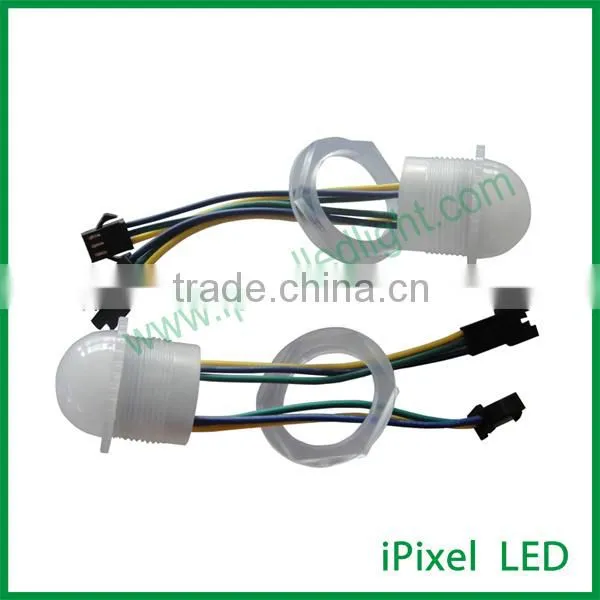

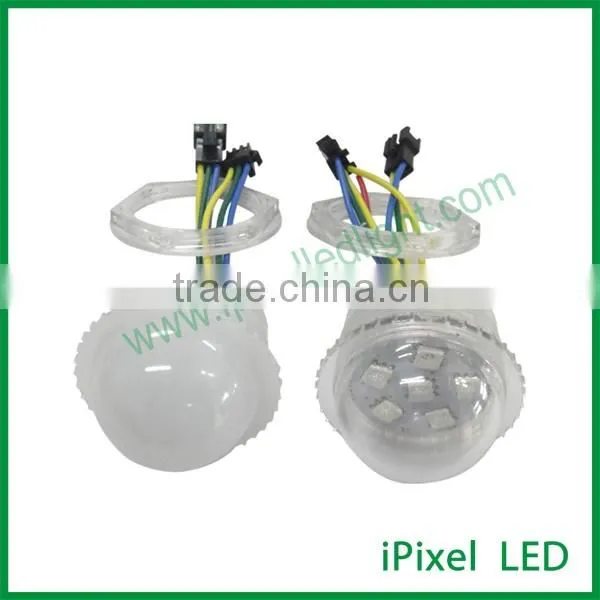

35mm led pixels, with 6LEDs/pcs——Frost(Milky) Cover, 3PIN JST connectors

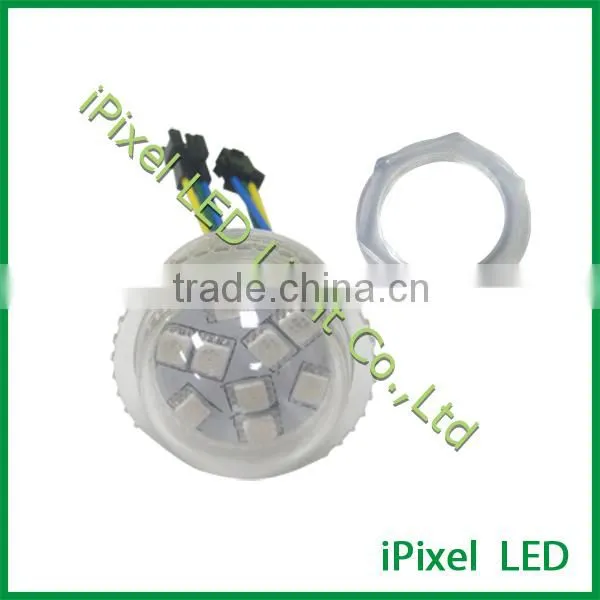

35mm led pixels, with 6LEDs/pcs——Transparent(Clear) Cover, 3PIN JST connectors
1. channel letter
2. Advertisements sign
3. KTV,Disco
4. LOGO, advertising billboard,exposed luminous characters,
5. LED display screen, painted screen
6. Stage, Disco

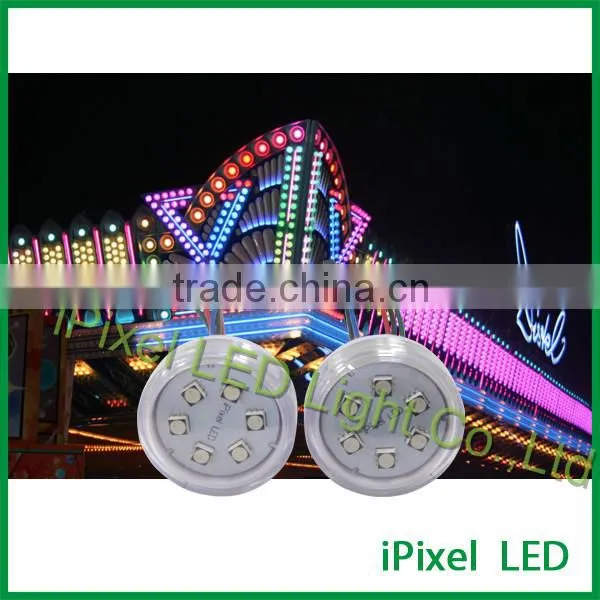

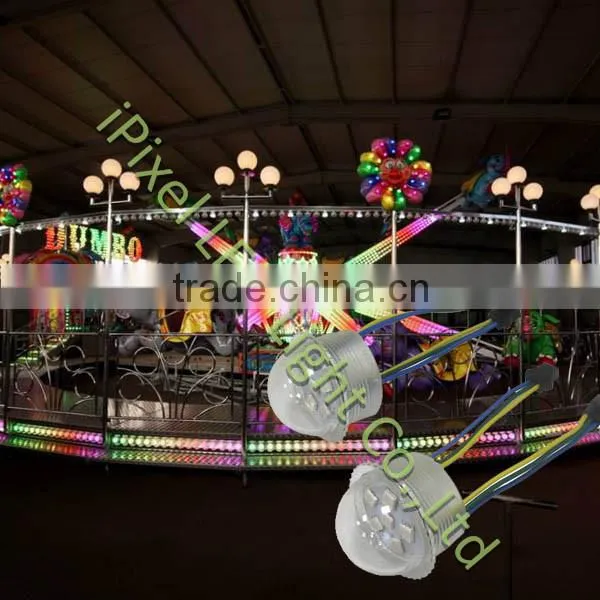

7. amusement project , Roller Coaster and Theme Park

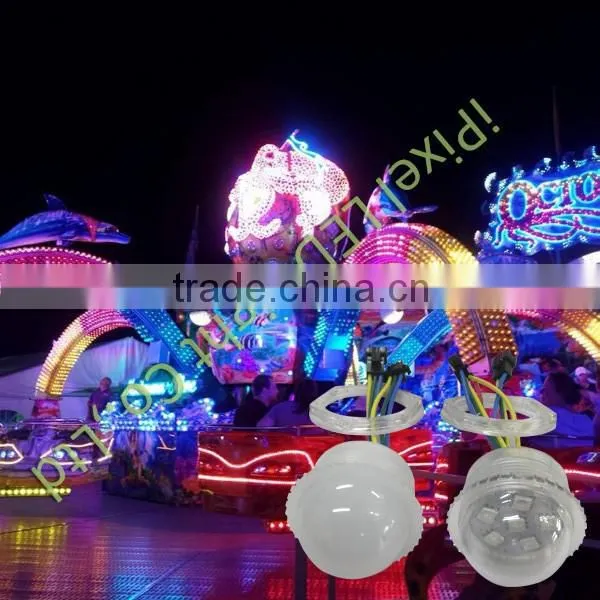

8. amusement rgb pixel led point light lunapark ferry fairground ride
We also have other similar types:
1. 35mm led pixels, 9LEDs/pcs, dc12v, Frost / transparent cover
2. 26mm led pixels, 3LEDs/pcs, dc12v, Frost / transparent cover
3. 45mm led pixels, 6LEDs/pcs, dc24v, transparent cover
4. 45mm led pixels, 9LEDs/pcs, dc24v, transparent cover
