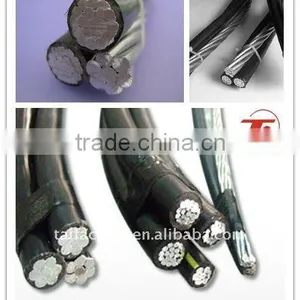

Overhead Aluminum alloy XLPE/PE insulation ABC cable
Overhead Aluminum alloy XLPE/PE insulation Aerial bundle cable(ABC) is applied to overhead power line with rated voltage 0.6/1kv and 10KV.
Detailed Description
The cable is made by extruding internal screen with waterproof XLPE or black weatherproof high density PE or weatherproof PVC insulation and outer screen over compact Cu or Al conductor.(No internal and outer screen in 1KV aerial insulated cable at rated voltage of 1KV).The cable has excellent mechanical,physical property and electrical property.Simple construction and reliability.It is track resistant and weatherproof.Compared with bare wire; the cable is laying gap is narrow. Which save the line and reduce the voltage drop of line.Especially, the cable avoid the accident when supplying electricity.
Application Character
Rated Voltage Cable Types: 1.0.6/1kV; 2.10kV ; 3.35kV
Permissible Long-term Operating Temperature: 1. For PVC Insulation: 70 ℃ 2.For PE Insulation: 70 ℃ 3.For XLPE Insulation: 90 ℃
Max. Short-circuit Temperature(within 5s): 1. For PVC Insulation: 160℃ 2.For PE Insulation: 130 ℃ 3.For XLPE Insulation: 250 ℃
Ambient Temperature: -40 ℃ to 40 ℃
Relative Humidity: ≤90%
Bending Radius: ≥4D(when D<25mm); ≥6D(when D≥25mm)
ABC Cable, XLPE or HDPE Insulated Aerial Cable Aerial Bundled Cable, overhead distribution line ABC power cable 1*16+16
Standard: National Standard IEC and ASTM
Rated Voltage: 0.6/1KV
Construction: Phase conductor: aluminum stranded(AAC)
Neutral conductor: aluminum stranded(AAC), aluminum alloy stranded(AAAC), aluminum conductor steel reinforced(ACSR)
Insulation: XLPE or HDPE
Application: The cables are designed for aerial power lines and room-entrance wires with voltage up to and including 0.6/1KV.
Uesd for overhead service application such as street linghting, outdoor lighting and temporary service for cunstruction.which improves the safety and reliance of electrified wire netting.
Specification:
| SPEC mm2 | conductor structure | Approx. | ||||||
| Phase | Neutral(Bare ACSR) | insulation | insulation | Overall | Approx. | packing | ||
| (Compacted AL) | Aluminium | Steel | material | Thickness | Diameter | Weight | Meters Per | |
| (No./mm) | (No./mm) | (No./mm) | (mm) | (mm) | (kg/km) | Drum | ||
| 1x16+1x16 | 7/1.72 | 6/1.72 | 1/1.72 | XLPE | 1.2 | 12.5 | 121.9 | 250-4000m |
| 1x25+1x25 | 7/2.15 | 6/2.15 | 1/2.15 | 1.2 | 14.9 | 182.2 | 250-4000m | |
| 1x35+1x35 | 7/2.54 | 6/2.54 | 1/2.54 | 1.4 | 17.5 | 254.7 | 250-3500m | |
| 1x50+1x50 | 7/2.92 | 6/2.92 | 1/2.92 | 1.4 | 20.1 | 333.9 | 250-3000m | |
| 1x70+1x70 | 19/2.15 | 12/2.15 | 17/2.15 | 1.4 | 23.6 | 382.2 | 250-3000m | |
| 1x95+1x95 | 19/2.54 | 12/5.24 | 17/5.24 | 1.6 | 27.6 | 528.2 | 250-3000m | |
| 2x16+1x16 | 7/1.72 | 6/1.72 | 1/1.72 | (HDPE) | 1.2 | 14.2 | 187.6 | 250-4000m |
| 2x25+1x25 | 7/2.15 | 6/2.15 | 1/2.15 | 1.2 | 16.7 | 273.8 | 250-3500m | |
| 2x35+1x35 | 7/2.54 | 6/2.54 | 1/2.54 | 1.4 | 19.7 | 386.9 | 250-3500m | |
| 2x50+1x50 | 7/2.92 | 6/2.92 | 1/2.92 | 1.4 | 22.5 | 506 | 250-3000m | |
| 2x70+1x70 | 19/2.15 | 12/2.15 | 7/2.15 | 1.4 | 26.1 | 617.2 | 250-3000m | |
| 2x95+1x95 | 19/2.54 | 12/5.24 | 7/5.24 | 1.6 | 30.5 | 850.9 | 250-3000m | |
| 3x16+1x16 | 7/1.72 | 6/1.72 | 1/1.72 | 1.2 | 16.3 | 253.3 | 250-3500m | |
| 3x25+1x25 | 7/2.15 | 6/2.15 | 1/2.15 | 1.2 | 19.1 | 371.9 | 250-3500m | |
| 3x35+1x35 | 7/2.54 | 6/2.54 | 1/2.54 | 1.4 | 22.5 | 519.1 | 250-3000m | |
| 3x50+1x50 | 7/2.92 | 6/2.92 | 1/2.92 | 1.4 | 25.7 | 678.1 | 250-3000m | |
| 3x70+1x70 | 19/2.15 | 12/2.15 | 7/2.15 | 1.4 | 29.7 | 1024.3 | 250-3000m | |
| 2x95+1x95 | 19/2.54 | 12/2.54 | 7/2.54 | 1.6 | 34.6 | 1413.7 | 250-3000m |
|

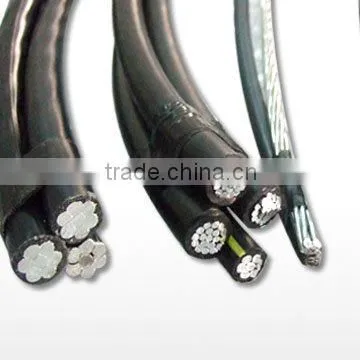

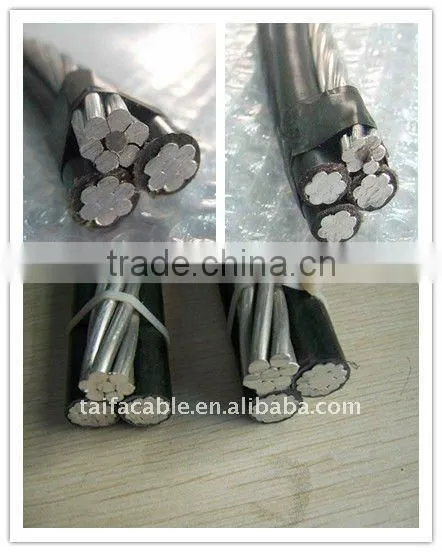

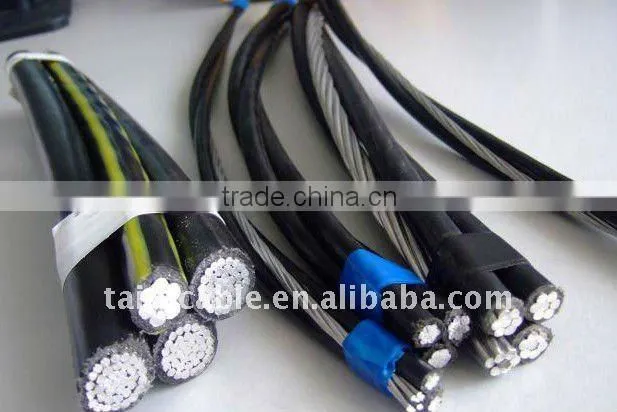

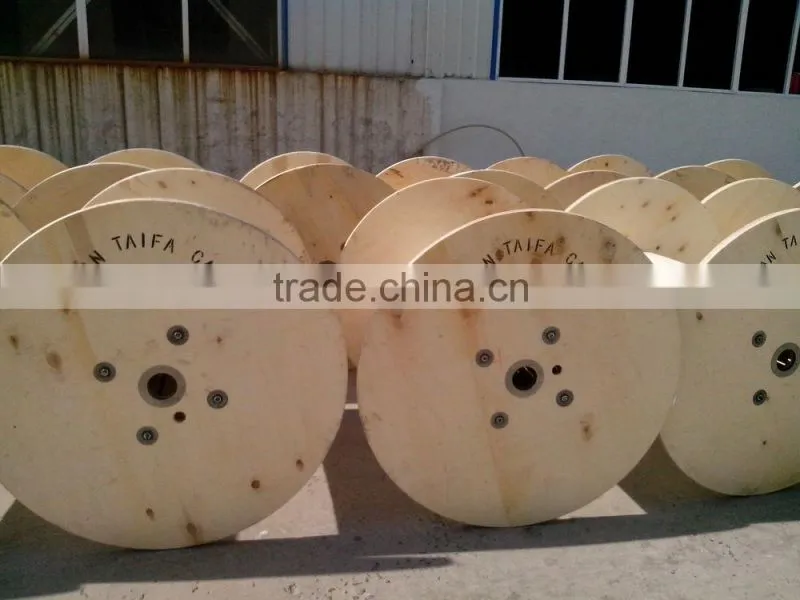

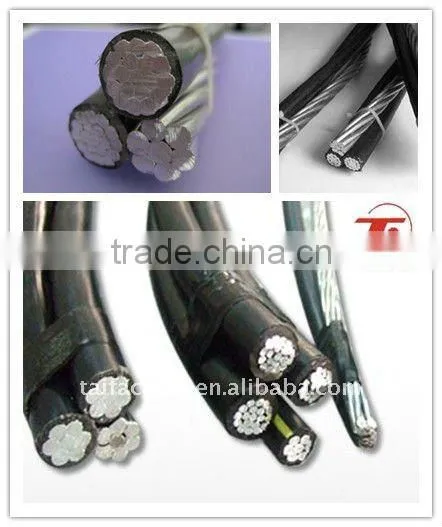

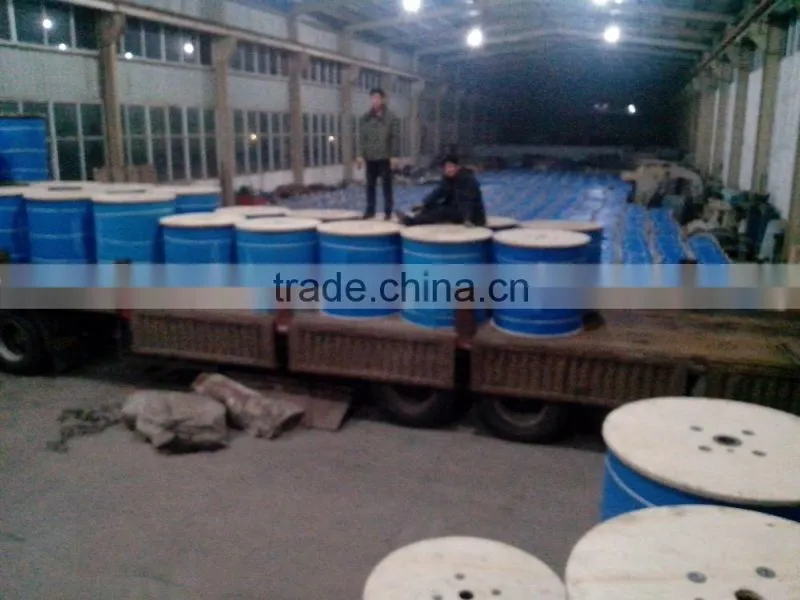

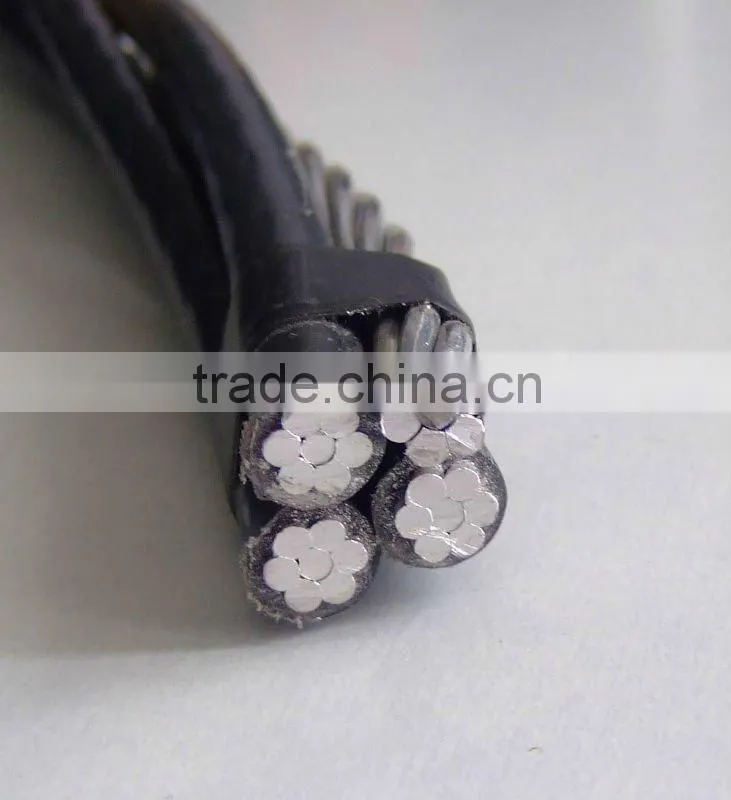

Product pictures:
