Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Quandruplex Stranded Aluminum Conductor 11kv ABC Cable

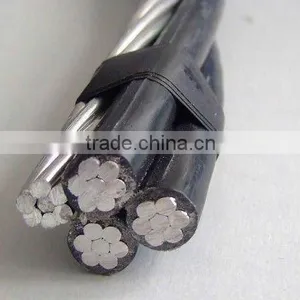

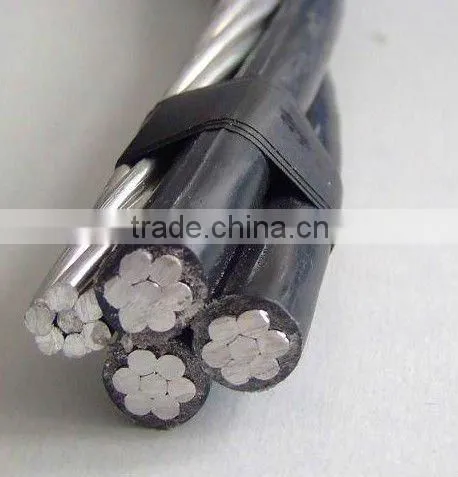

Quandruplex Stranded Aluminum Conductor 11kv ABC Cable
US$ 0.11 - 99.98
MOQ: 5000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
taifa
Model Number:
quandruplex ABC cable
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aerial Bundle Cable Complying to AS/NZS 3560.1US$ 0.11 - 99.98MOQ: 5000 Meters -
Aerial Bundle Cable (ABC) - Bundled Aluminium Overhead Cable - NFA2X-TUS$ 0.11 - 99.98MOQ: 10 Kilometers
-
Fashional Duplex Abc Cable With Neutral ConductorUS$ 0.11 - 99.98MOQ: 5000 Meters
-
1000V Aerial Bundle Cable/quadruplex ABC Cable/service Drop Cable Insulated Overhead CableUS$ 0.11 - 99.98MOQ: 10 Kilometers
-
11KV XLPE Insulated Overhead ABC CableUS$ 0.11 - 99.98MOQ: 1000 Meters
Place of Origin
Henan, China
Brand Name
taifa
Model Number
quandruplex ABC cable
Insulation Material
XLPE
Type
Medium Voltage
Application
Overhead
Conductor Material
Aluminum
Jacket
Other, no
Specification
1 professional cable & wire manufacturer
2 competitive price, prompt delivery
3 provide OEM service
We can produce abc cable as per GB, IEC,ASTM Standard.ABC Cable
Description
Aerial Bundled Cable (ABC cable) has characters of power-transmitting and strong mechanical. In comparison with bare wire, aerial bundled cable (ABC cable) boasts many advantages, such as small span in laying, higher safe reliability, better atmosphere aging resistence property. Aerial bundled cable has the priority to be used in urban and rural power-transmitting construction project.
Technical characteristics
| Cores | Nominal cross-sectional area | Phase Conductors insulation |
Dia. Of cable | R. of conductors at 20°C | Break strength of conductor | ||
| Ω/km | KN | ||||||
| 3C+1C | mm2 | Thickness (mm) | mm | Phase cores | Neutral cores | Phase cores | Neutral cores |
| 3C+1C | 3x25+54.6 | 1.4 | 23.57 | 1.2 | 0.630 | 16.6 | 16.6 |
| 3C+1C | 3x35+54.6 | 1.6 | 26.08 | 0.868 | 0.630 | 16.6 | 16.6 |
| 3C+1C | 3x50+54.6 | 1.6 | 28.15 | 0.641 | 0.630 | 16.6 | 16.6 |
| 3C+1C | 3x70+54.6 | 1.8 | 32.15 | 0.443 | 0.630 | 16.6 | 16.6 |
| 3C+1C | 3x70+54.6 | 1.8 | 32.15 | 0.443 | 0.630 | 16.6 | 16.6 |
| 3C+1C | 3x70+70 | 1.8 | 32.75 | 0.443 | 0.500 | 20.5 | 20.5 |
| 3C+1C | 3x95+70 | 1.8 | 35.78 | 0.32 | 0.500 | 20.5 | 20.5 |
| 3C+1C | 3x120+70 | 1.8 | 37.93 | 0.253 | 0.500 | 20.5 | 20.5 |
| 3C+1C | 3x120+70 | 1.8 | 37.93 | 0.253 | 0.500 | 20.5 | 20.5 |
| 3C+1C | 3x120+95 | 1.8 | 39.26 | 0.253 | 0.343 | 27.5 | 27.5 |
| 3C+1C | 3x150+95 | 1.9 | 41.81 | 0.206 | 0.343 | 27.5 | 27.5 |
Package & Delivery
wooden drums seaworthy or according to your requirements
delivery within 15 working days
