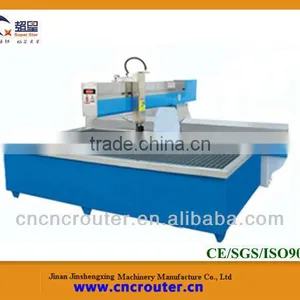

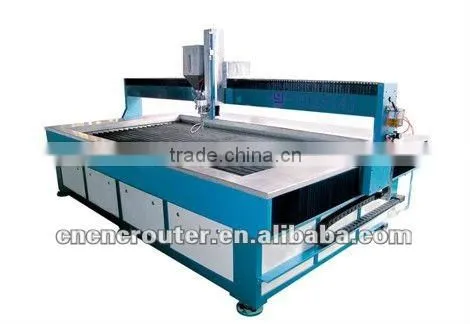

Help CenterWater Jet Machine no Heat and High Precision Cutting Machine for Metal and Nonmetal Cutting China
Related Products
-
JXS-1520 Water Jet Cutting Machine/marble Cutting Machine/5-50mm ThicknessNegotiableMOQ: 1 Set -
Water Jet Machine no Heat Cutting Machine With One Year Factory Warranty ChinaNegotiableMOQ: 1 Set
-
High Speed 3D Arm Type CX1520 Water Jet Cutting Machine for Cutting Stainless Steel, Aluminium Sheet and MarbleUS$ 27,000 - 40,000MOQ: 1 Set
-
High Speed 3D CX1520 Water Jet Cutting Machine for Cutting Stainless Steel, Aluminium Sheet and MarbleUS$ 27,000 - 40,000MOQ: 1 Set
-
CX-1530 China CNC Water Jet Cutting Machine/ Water Jet Cutter/ With Imported Intensifier PumpNegotiableMOQ: 1 Piece
Specifications
Water Jet machine:1 CE, ISO certificate
2 500 Mpa water pressure
3 Y axis two motor
This Water Jet machine has the following features:
1. Adopt imported intensifier pump to pressurize normal tap water to 500Mpa, provide a stable pressure 440Mpa within 24 hours
2. Adopt three-phase 75KW 160L hydraulic stabilizing system, the maximum displacement of accumulator is 3.7L/min, two in one system 0.05mm water filter
3. Taiwan HIWIN ball screw with a protective system insures the accuracy, stable processing
4. Y axis adopts double driver system, high system, high accuracy, stable processing.
Technical Specification
Model |
CX-1520 |
Machine size |
2000× 2500mm |
Working size |
1500mm× 2000mm ×350mm |
Control system |
Water jet system American Match 3 |
Reposition Precision |
0.1mm |
Cutting precision |
0.25mm/TBI Graphics input |
The cutting speed(mm/min) and cutting thickness
Material |
5mm |
10mm |
20mm |
50mm |
glass |
6000 |
2600 |
1200 |
--------- |
marble |
5600 |
2600 |
1100 |
400 |
ceramic |
12000 |
5500 |
---------- |
------------ |
granite |
3600 |
1600 |
700 |
220 |
aluminum |
2300 |
1000 |
460 |
160 |
Stainless steel |
760 |
340 |
150 |
50 |
