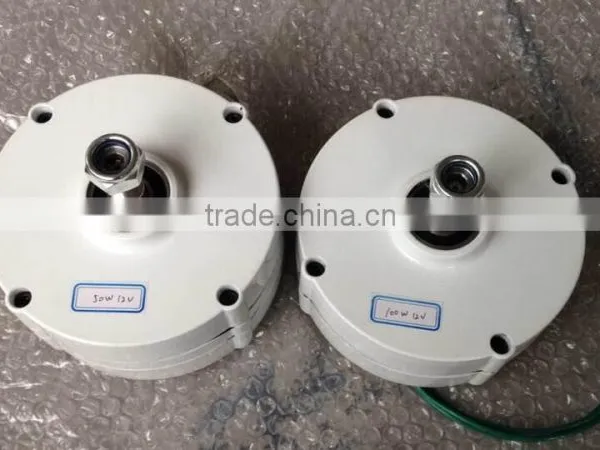

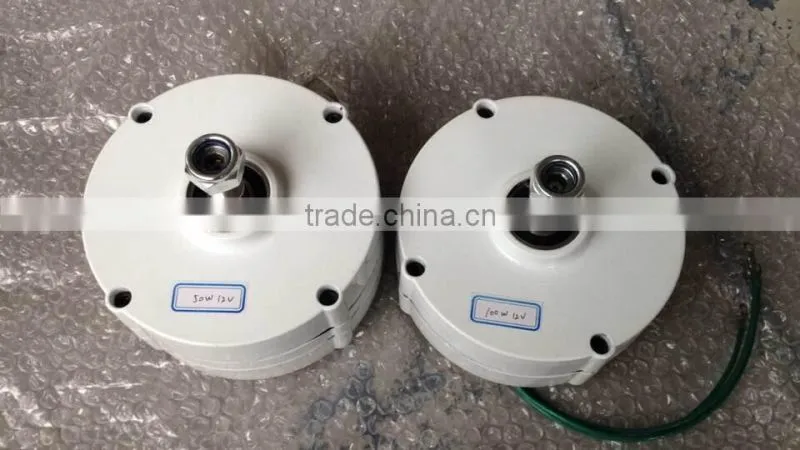

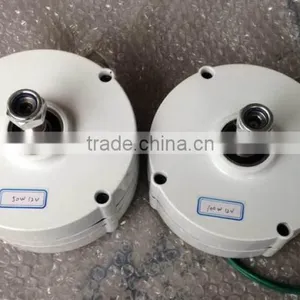

100w Permanent Magnet Generator
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Xinchang
Model Number:
XCH-100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Speed Permanent Magnet GeneratorNegotiableMOQ: 100 Pieces -
AC 380V 200RPM 10kw Permanent Magnet GeneratorUS$ 1,000 - 6,000MOQ: 1 Piece
-
Low Rpm Permanent Magnet GeneratorNegotiableMOQ: 100 Pieces
-
Low Speed 12v Permanent Magnet GeneratorNegotiableMOQ: 100 Pieces
-
Low Speed Permanent Magnet ac GeneratorNegotiableMOQ: 100 Pieces
Place of Origin
Shandong, China
Brand Name
Xinchang
Model Number
XCH-100
Type
Wind Power Generator
Specifications
100w permanent magnet generatormagnet :NdFeB
Generator case:High standard casting Aluminium alloy
100w permanent magnet generator
| Model | XCH-100S |
| Rated power | 100w |
| Maximum power | 130w |
| Rated voltage | 12/24v |
| Start-up wind speed | 2.0m/s |
| Rated wind speed | 10m/s |
| Survival wind speed | 55m/s |
| weight | 3.6kg |
| Wheel diameter | 1.2m |
| Number of blades | 3 or 5 |
| Blades material | Nylon fiber |
| Generator | Three phase permanent magnet ac synchronous generator |
| Magnet | NdFeB |
| Generator case | Casting aluminum alloy |
| Control system | Electromagnet/wind wheel yaw |
| Speed regulation | Automatically adjust windward direction |
| Working temperature | subzero 40 TO 80 centigrade |
| tower height (m) | 6 M |
| Cable tower size(mm) | 48*2.5 |
| Suggested solar panels(W) | 80-150 |
| wind solar hybrid controller(w) | universal type:100w-600w |
| Suggested Inverter | 500w |
| Batteries(AH) | 100AH*1 |
| can supply power for | Lighting, charging |
