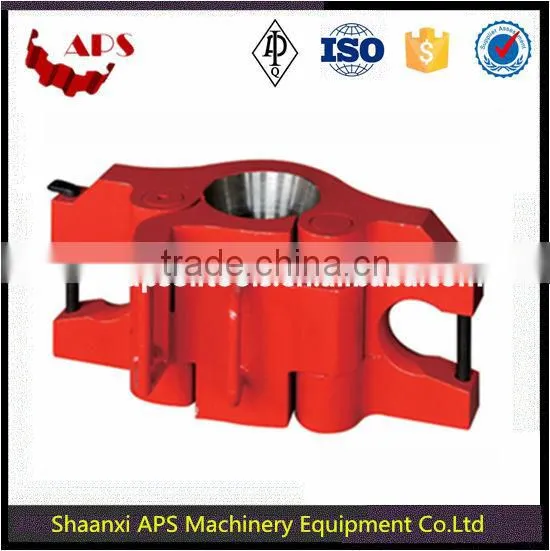

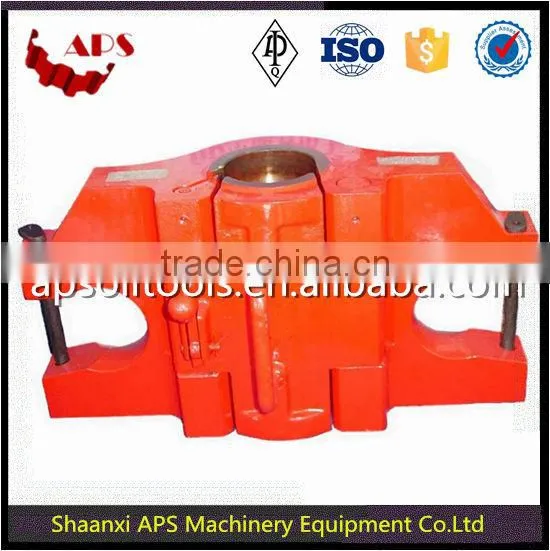

API standard Oil and gas CD Series Side Door Elevators/Drill pipe API elevator for drilling operation
The type CD side door elevators with square shoulder are suitable for handling tubing, casing, drill pipe and drill collar in oil and natural gas drilling, well construction. The products shall be designed and manufactured according to the requirements in API Spec 8C Specification for drilling and production Hoisting and Equipment.
CD elevators are forged from high quality alloy steel, heat-treated, and NDT tested.
The rated loads range from 150t to 750t, and cover pipe sizes from 2.3/8" to 9.7/8"O.D .
Type |
Size(in) |
Rated Cap. |
CD-150 |
2.3/8-14 |
150 |
CD-200 |
2.3/8-14 |
200 |
CD-250 |
2.3/8-20 |
250 |
CD-350 |
4.1/2-20 |
350 |
CD-500 |
4.1/2-14 |
500 |
CD-750 |
4.1/2-9.7/8 |
750 |
