Specifications

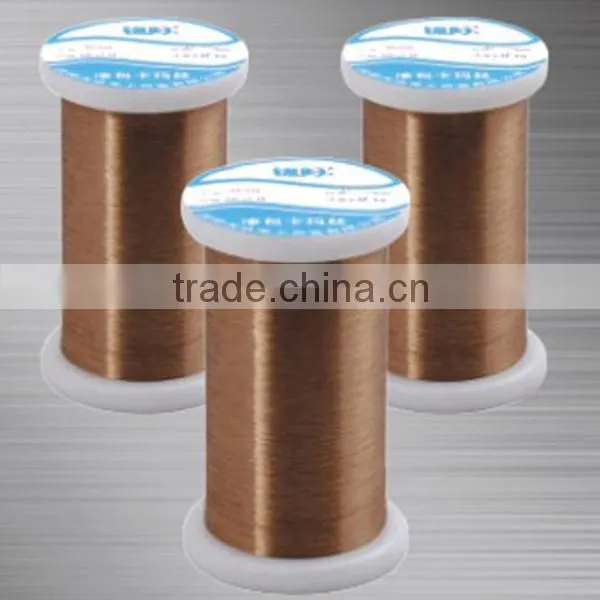

Product name:silicon bronze welding wireOther names:silicon bronze;silicon bronze alloy wire
Product features
1) Stabile characteristics of the chemical constituents
2) A high strength against tension, and uniform elongation
3) Low resistivity
4) Good processing performance and welding technological properties
The description of products
|
product name |
brand |
chemical composition,% |
Executive standard |
|||||||||||
Si |
Mn |
Ni |
Sn |
Fe |
Pb |
Zn |
Mg |
C |
S |
P |
Cu |
|||
|
Special Silicon bronze |
TQSi1.5-0.5 |
1.35-1.85 |
0.1-0.6 |
≤0.2 |
_ |
≤0.3 |
≤0.03 |
≤0.3 |
_ |
_ |
_ |
|
remain |
Q/STZD01-2008 |
|
Special Tin bronze |
TQSn0.7-0.02 |
≤0.1 |
- |
≤0.2 |
0.4-1.0 |
≤0.3 |
≤0.03 |
- |
≤0.1 |
≤0.03 |
≤0.01 |
0.015-0.035 |
remain |
Q/STZ01-2008 |
|
Mn copper Nickel Alloy wire |
BMn0.6-0.6 |
≤0.1 |
0.2-1.0 |
0.4-0.7 |
- |
≤0.2 |
- |
- |
≤0.1 |
≤0.03 |
≤0.01 |
≤0.1 |
remain |
Q/STZD02-2007 |
Properties of Products
Brand |
status |
Mechanical properties |
Resistivity Ω·mm2/m |
executive standard |
||
|
Diameter (mm) |
Tensile strength N/mm2(not less than) |
elongation,%(less than) |
||||
TQSi1.5-0.5 |
M |
0.03-0.10 |
300 |
15 |
0.167±0.03 |
Q/SZD.01-2008 |
>0.10~0.30 |
280 |
20 |
||||
>0.30~1.00 |
260 |
25 |
||||
>1.00~6.00 |
235 |
30 |
||||
TQSn0.7-0.02 |
M |
>0.03~0.10 |
225 |
12 |
0.032±0.005 |
Q/SZD.01-2008 |
>0.10~0.30 |
216 |
15 |
||||
0.30~0.60 |
205 |
20 |
||||
>1.00~6.00 |
196 |
25 |
||||
BMn0.6-0.6 |
M |
>0.03~0.10 |
225 |
12 |
0.054±0.003 |
Q/SZD.01-2007 |
>0.10~0.30 |
216 |
15 |
||||
>0.30~1.00 |
205 |
20 |
||||
>1.00~6.00 |
196 |
25 |
||||
