Cutting Wheel for Metal, Abrasive Cutting Wheel, Resin Cutting Wheel

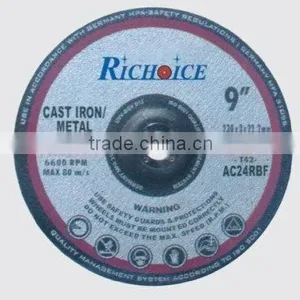

Cutting Wheel for Metal, Abrasive Cutting Wheel, Resin Cutting Wheel thumbnail-1
Cutting Wheel for Metal, Abrasive Cutting Wheel, Resin Cutting Wheel photo-1
US$ 0.143 - 2.36 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Richoice
Model Number:
RQAC0310025
Contact Supplier Request Quote Chat Now
Zhenjiang Richoice Machinery Imp. & Exp. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Richoice
Model Number RQAC0310025
Type Abrasive Disc
Size 100mm to 230mm

Cutting wheel


Cutting wheel for metal

System of quality correspond to DIN, EN, ISO9001-2000

Use in accordance with Germany MPA safety regulations Germany MPA31055,31056,31057

EN12413

Packed: color stickers on the back





Art No. Dimension Max.operation speed Standard package
(D*T)(mm) Bore R.P.M. M/S Pcs/box Pcs/ctn Kg/ctn
RQAC0310025A/B 100*2.5 16(5/8") 15300 80 25 400 20
RQAC0310030A/B 100*3.0 16(5/8") 15300 80 25 400 21.1
RQAC0311525A/B 115*2.5 22.2(7/8") 13300 80 25 200 11.9
RQAC0311530A/B 115*3.0 22.2(7/8") 13300 80 25 200 12.5
RQAC0312525A/B 125*2.5 22.2(7/8") 12200 80 25 200 13.1
RQAC0312530A/B 125*3.0 22.2(7/8") 12200 80 25 200 15
RQAC0315025A/B 150*2.5 22.2(7/8") 10200 80 25 200 18.4
RQAC0315030A/B 150*3.0 22.2(7/8") 10200 80 25 200 21.1
RQAC0318020A/B 180*2.0 22.2(7/8") 8500 80 50 200 21.1
RQAC0318025A/B 180*2.5 22.2(7/8") 8500 80 25 100 13.5
RQAC0318030A/B 180*3.0 22.2(7/8") 8500 80 25 100 15.4
RQAC0318030A/B 180*3.0 16(5/8")-Diamond Bore 8500 80 25 100 15.4
RQAC0318035A/B 180*3.5 22.2(7/8") 8500 80 25 100 17.3
RQAC0323020A/B 230*2.0 22.2(7/8") 6600 80 50 100 18.2
RQAC0323025A/B 230*2.5 22.2(7/8") 6600 80 25 50 12.5
RQAC0323030A/B 230*3.0 22.2(7/8") 6600 80 25 50 14.9
RQAC0323035A/B 230*3.5 22.2(7/8") 6600 80 25 50 16.3





Standard Code of Specification for Wheels
The following table is an example of the stnadard code of specification for identifying Cutting Wheels/Grinding Wheels/Cup Wheels.
A 24 R B F
Primary Grain Grain Size Bond Hardness Bond Type Reinforcement
A=Aluminum Oxide Coarse/Medium/Fine/Very Fine  16/24/30/36/60-400 Soft--Medium--Hard  M N O P Q R S T B=Resinoid Fibre Glass Nets F1=1 layer net F2=2 layers net  F2.5=2 and half layers net
C=Silicon Carbide
AC=Aluminum Oxide/Silicon Carbide combination
Z=Zirconia Aluminum Oxide
ZA=Zirconia Aluminum Oxide/Aluminum Oxide combination



If you want to know more about our products, please inquire us for more information!
