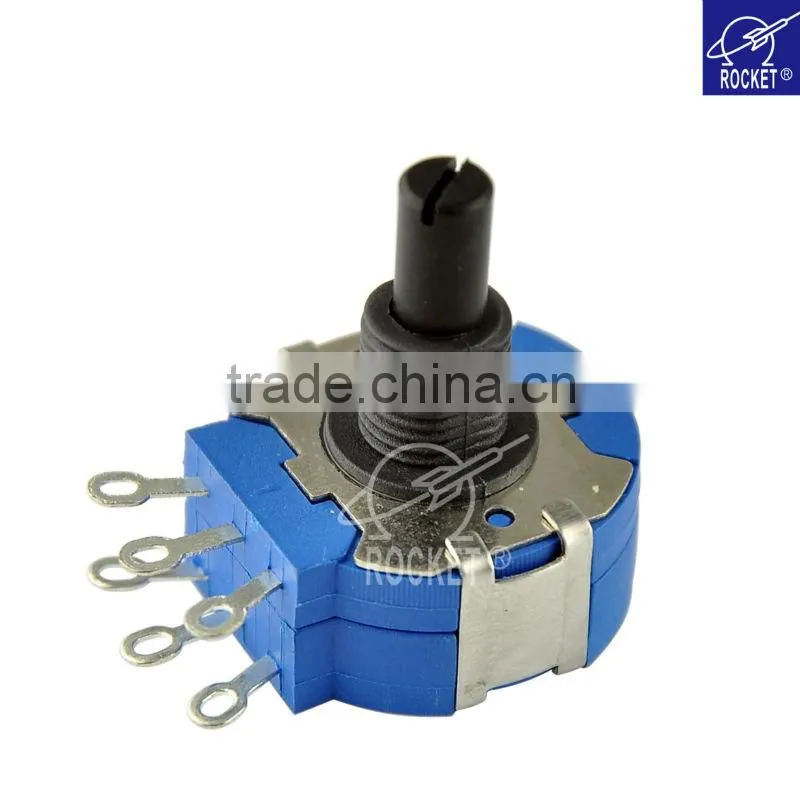

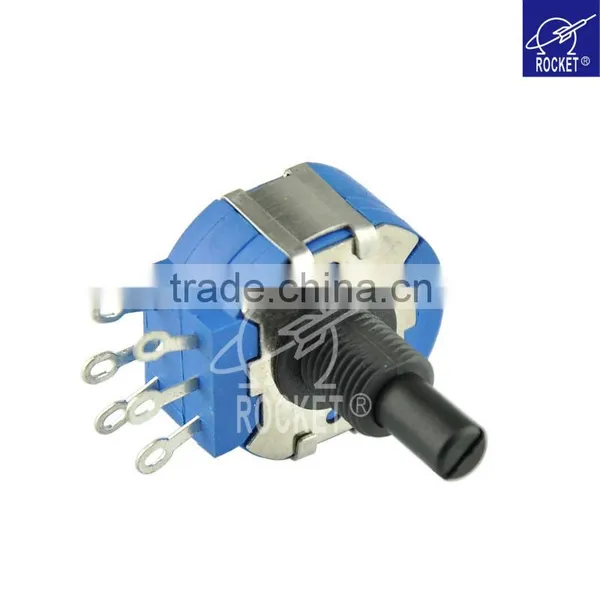

Long Shaft Potentiometer
US$ 0.267 - 0.325
MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Brand Name:
rocket
Model Number:
RV28GP1
Type:
Other, Rotary Potentiometer, rotary carbon composition potentiometers
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Potentiometer ManufacturersUS$ 0.267 - 0.325MOQ: 10000 Pieces -
Plastic Pot Directly Deal With ManufacturersUS$ 0.267 - 0.325MOQ: 10000 Pieces
-
Plastic Knob PotentiometerUS$ 0.267 - 0.325MOQ: 10000 Pieces
-
Potentiometer B10kUS$ 0.267 - 0.325MOQ: 10000 Pieces
-
Potentiometer Push Push SwitchUS$ 0.2 - 2MOQ: 10000 Pieces
Brand Name
rocket
Model Number
RV28GP1
Type
Other, Rotary Potentiometer, rotary carbon composition potentiometers
Technology
Carbon Film
Resistance
100Ω-2MΩ
Resistance Tolerance
±20%
Rated Power
1-1.5w
Max. Operating Voltage
500V
Operating Temperature
60°C
Specifications
1) long shaft potentiometer2)plastic shaft with sleeve,can be metal shaft
3)potentiometers since 1967 years
4)brand:rocket
Ningbo Huayu Electronics Co.,LTD
-
Rated power A:1-1.5W ing voltage 500V Resistance range & tolerance 100Ω --2MΩ ±20% Resistance tape A. B . C. End resistance 20 Ω max Rotational noise ≤ 47mV Shaft material metal shaft,can be with plastic shaft Rotation torque 2--20mN.m Total mechanical travel 260°±10° Mechanical life 10000cycles All resistance below
-
-
B101-100Ω
B501--500Ω
B102--1k
B202--2k
B502--5k
B103--10k
B203--20k
B503--50k
B104--100k
B204--200k
B254--250k
B504--500k
B105--1M
-
Item No.: RV28GP1 long shaft potentiometer
