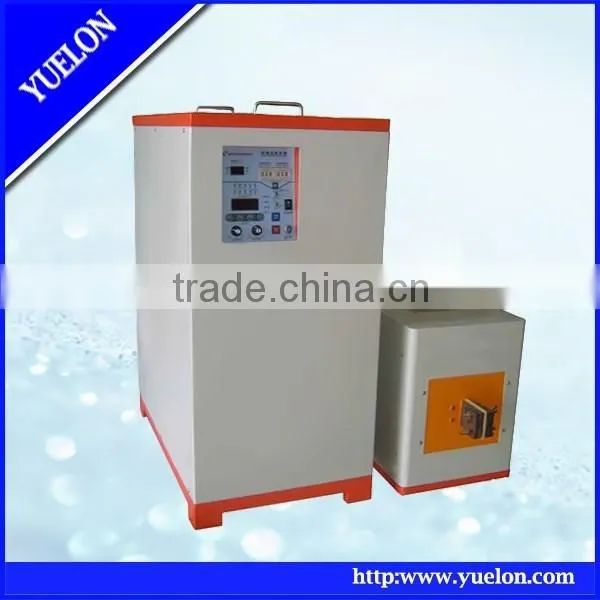

UF-160AB
Main specifications:
Maximum input power: 160KW
Oscillating frequency: 30-120KHz
Maximum input current: 240A
Input voltage: 3phases 380VAC, 50 or 60Hz
Duty cycle: 100%
Cooling water: ≥0.2Mpa 15L/min
Auto heating time: 0.1-99.9seconds
Auto retaining time: 0.1-99.9seconds
Auto cooling time: 0.1-99.9seconds
Generator Weight: 104KG
Generator size: 860x500x980mm
Transformer weight:51KG
Transformer size: 600x500x520mm
Packing weight: 198KG
Packing size: 980x1100x1100mm
Ultrahigh frequency (0.1-1.1MHZ)
General introduction of UF series:
The oscillating frequency of UF series machines is above 100KHZ, from 100KHZ to 1100KHZ, and machines
of this frequency are suitable for brazing, forging and heat treatment and a lot of other applications, especially
suitable for surface heat treatment and wire annealing and so on.
Power range of UF series is from 3KW to 160KW, UF series machines are of the most advanced technology,
and unique technology. Wide application for all metal heating areas.
Model explanation: UF-XXX AB
UF-- Ultrahigh frequency series
XXX – rated input power
AB – additional function A – with timer function B – split type that is with separated transformer
