Specifications
Low cost4 digitals display
Anti- jamming, High precision
Digital Pressure Indicator with relay alarm N80
Discription
N80 digital pressure indicator is a 1/8 DIN or ¼ DIN, panel-mount, dual 4-digit indicator, which takes the advantage of latest state-of-art technology and comes in small-size, light-weight and in low-power.
This pressure indicator has been specifically designed for use with mv/Volt output transducers from different famous manufacturers such as Dynisco, Gefran, ONEhalf20 and so on. This series indicator can match ZHYQ’s melt pressure transducer also.
Application
The pressure indicator can be widely used in situation of display and autocontrol in Hydraulic pressure, oil, plastics, latex, printing and dyeing, textile industry; AND also can be compound with resistance strain guage press sensor of other manufactory
Specification
(1) |
Display |
Dual 4-digit Green and Red LEDs |
(2) |
Resolution |
0.2% FSO ± 1 |
(3) |
LEDs |
Out, Alarm-1, Alarm-2, CALibration |
(4) |
Input Sensibility |
2.5mv/V or 3.3 mv/V (automatic selection) |
(5) |
Sampling Speed |
20 per second |
(6) |
Excitation Voltage |
+9 VDC (output to transducer) |
(7) |
All Output Relays |
Relay 220V 1A |
(8) |
Retransmission |
4~~20 mA standard current loop |
(9) |
Communication |
RS-485 MODBUS( PY500 Only) |
(10) |
Alarm Range |
0001 – 9999 PSI or Bar (configurable) |
(11) |
Temperature |
0 - 55°C |
(12) |
Humidity |
<= 80% RH |
(13) |
Calibration |
80% FSO (Full Scale Output) |
(14) |
Power Supply |
110/220VAC or +24VDC (designated while purchasing) |
(15) |
Size |
N80: 96mm x 48mm x 100 mm (W x H x D) |
(16) |
Panel Cutout |
N80: 92mm x 44mm |
(17) |
Weight |
200grams |
Panel Dimensions

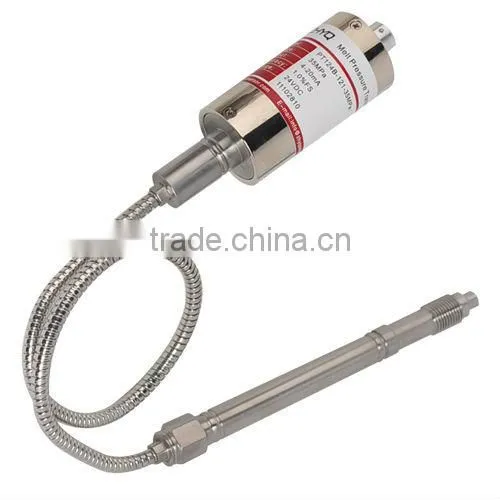

Matching with our Amplified Melt Pressure transmitter with flexible stem PT124B-123 Series Melt pressure transmitters:
Order Guide :with "* "are required , with "---"is optional
Remarks the pressure range when order instrument and pressure transmitter. It could not modify the pressure range for the indicator and transducer by customer. The transducer must match with the digital transmitter supplier by ZHYQ.
Maintenance
The operating temperature is 0-55°C, the relative humidity is no more than 80% RH, it can be used in the conditions without dirt or corrosive gas. It can be free repaired in 12 months from leaving our company. If there is something wrong with the use of customer or the beyond the maintenance, we should charge for the service of repair.
Price, Package and Service
1, T/T, Western Union, MoneyGram
2, Any questions from your are welcome and will be replied in 24 hours.
3, 7 days replacement and 12 months repair free of charge for quality problem.
4, All goods will be fully checked by our QC.
5, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
6. Package: The goods will be put into the packing box with instructions and certificate of quality first.
