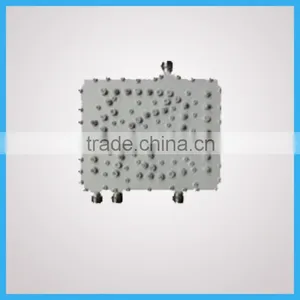

GSM &DCS/ WCDMA/WLAN RF Combiner
US$ 60 - 80
MOQ: 1 Box
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
xinlun
Model Number:
CM-JPTX3-IN1A
Payment & Shipping
Payment Methods:
Port of Shipment:
huangpu
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
xinlun
Model Number
CM-JPTX3-IN1A
| Specification | PORT1 |
PORT2 |
PORT3 |
|
Frequency Range (MHz) |
885~954 |
1710~1830 |
1880~2025 |
2300~2400 |
wideband (MHz) |
69 |
120 |
145 |
100 |
Insertion loss (dB) |
≤0.6 |
|||
ripple in band (dB) |
≤0.5 |
|||
VSWR |
≤1.25 |
|||
out-of-Band rejection (dB) |
≥80@1880~2400MHz |
≥80@885~1830MHz ≥80@2300~2400MHz |
≥80@885~2025MHz |
|
Third-order intermodulation (dBc) |
145@2×43dBm,160@2×43dBm |
|||
Max.powe (W) |
300,1000 |
|||
Working temperature |
-25℃~+55℃ |
|||
Working humidity |
≤95% |
|||
Work pressure |
86kPa~106kPa |
|||
Joint type |
N-K |
|||
Dimensions(mm) |
190mm×138mm×40.5mm |
|||
