Specifications

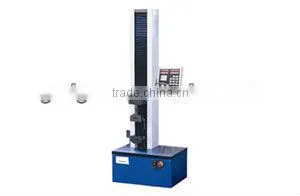

WDS Series Digital Display Type Electronic Universal Testing Machine (Single beam, 1kN, 2kN, 5kN)WDS Series Digital Display Type Electronic Universal Testing Machine (Single beam, 1kN, 2kN, 5kN)
1. Introduction:
WDS Series digital electronic universal testing machines are suitable for tensile, compression, shearing, peeling, tearing etc test of metal materials and non-metal materials, like rubber, plastic, cable wire, composite material, plastic profile, spring, etc. It conforms to GB, ISO, JIS, DIN, ASTM, etc standards. It also supports customized designed software, which is an ideal testing machine for quality control department, scientific research, universities and colleges, industrial and mining enterprises.
2. Main Technical Parameters:
|
Model Specification |
WDS-1A |
WDS-2A |
WDS-5A |
WDS-1 |
WDS-2 |
WDS-5 |
Range of testing force (kN) |
0.02~1 |
0.04~2 |
0.1~5 |
0.02~1 |
0.04~2 |
0.1~5 |
Accuracy of testing force |
±1% of indicated value |
|||||
|
Resolution of crosshead displacement measurement (mm) |
0.01 |
|||||
Speed Range of crosshead |
0.01mm/min~500mm/min, servo control |
|||||
Effective testing space (mm) |
800 |
|||||
Power supply |
220V±10%, 50Hz |
380V±10%, 50Hz |
||||
Working environment |
Room temperature~30°C, relative humidity<80% |
|||||
Main configuration |
Chinese AC Servo motor and driver |
Imported AC Servo motor and driver |
||||
Overall dimension (mm) |
600×420×1700 |
|||||
Weight (kg) |
300 |
|||||
