Help CenterANL Series Digital Torque Gauge
US$ 800 - 1,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GRAIGAR
Model Number:
ANL
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AST-J/S Manual Test Stand(Max Load 500N)US$ 90 - 140MOQ: 1 Set -
ASZ Rope Tension Equipment (20KN-200KN)US$ 2,400 - 3,200MOQ: 1 Set
-
LD-J Test Stand for Shore DurometerUS$ 120 - 180MOQ: 1 Set
-
LAC-J Test Stand for Shore DurometerUS$ 100 - 150MOQ: 1 Set
-
AMH Manual Horizontal Test Stand(Max Load 500N)US$ 220 - 280MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
GRAIGAR
Model Number
ANL
Power
Other
Usage
Other
Specifications

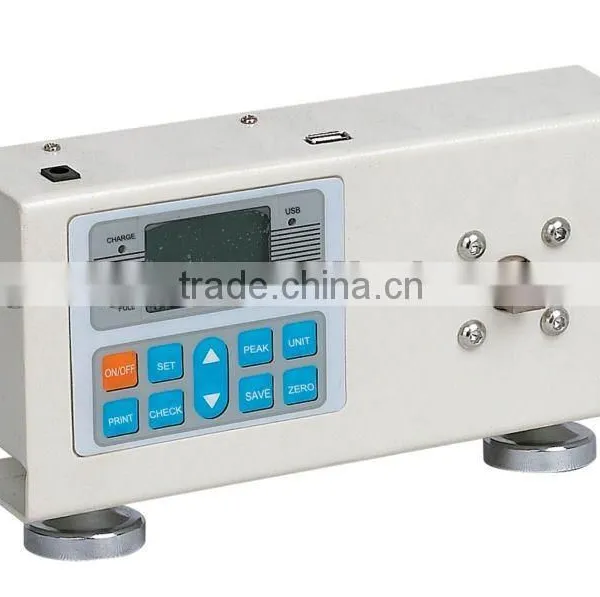

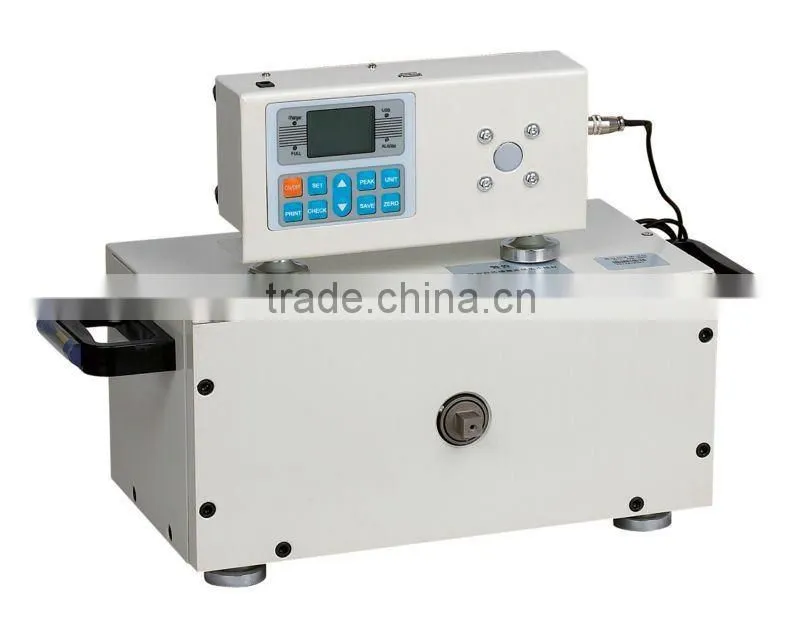

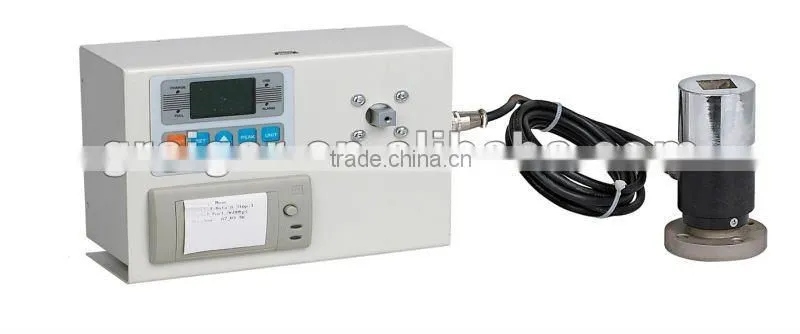

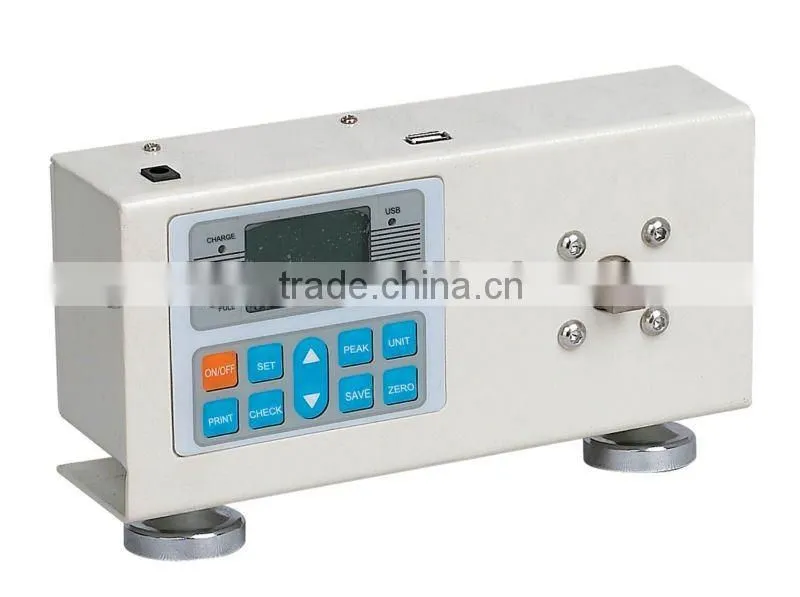

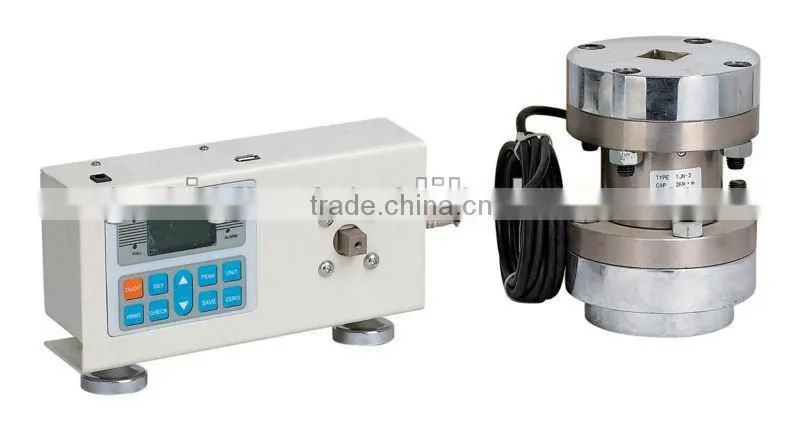

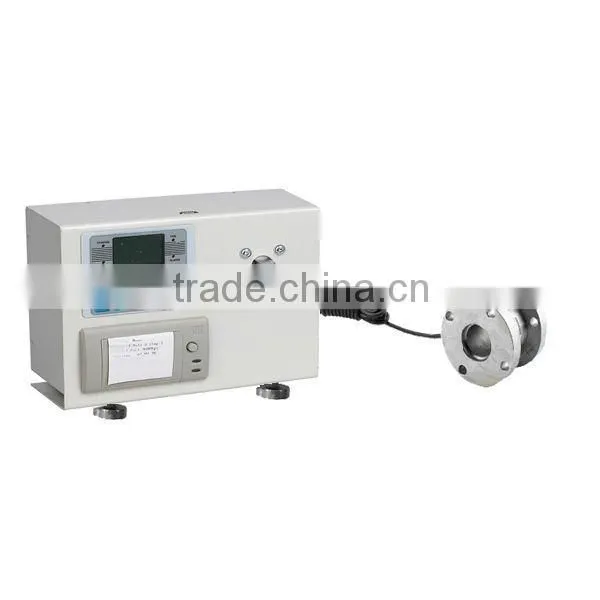

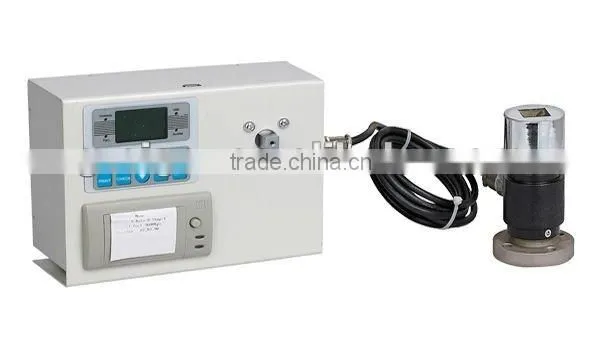

ANL Series Digital Torque GaugeANL Series Digital Torque Gauge
Function:
Digital torque meter is an intelligent multifunctional measuring instrument which is designed
for testing various kinds of torque. It main used in testing and calibrating various kinds of
electric pneumatic screwdriver set, the torque of torque wrench, all kinds of products refer
to testing of screw down force, parts torsion destructive testing etc.
Main features:
1. High precision, high resolution, quick sampling speed, full-screen display.
2. Adopting high precision torque sensor, with torque direction display.
3. Upper and lower limit value setting, red and green indicating lights and buzzer audible
and visual alarm.
4. Three units can be switched each other (N·m,kgf·cm,Ib·in).
5. Real-time, peak, automatic peak three models of optional switch.
6. Use USB interface and PC communications, synchronous test function can connect to
the computer
7. Peak holding, remove automatically function, remove time to set freely.
8. Large storage, can save 99 groups of test data.
9. Without automatic shutdown function, time can be set freely.
Parameter:
| Item No. | Measuring range / division value | ||
| N.m | Kg.cm | Ib.in | |
| ANL-1 | 1.0000/0.0001 | 10.210/0.001 | 8.862/0.001 |
| ANL-2 | 2.0000/0.0001 | 20.421/0.001 | 17.724/0.001 |
| ANL-3 | 3.0000/0.0001 | 30.631/0.001 | 26.586/0.001 |
| ANL-5 | 5.0000/0.0001 | 51.052/0.001 | 44.311/0.001 |
| ANL-10 | 10.000/0.001 | 102.10/0.01 | 88.62/0.01 |
| ANL-20 | 20.000/0.001 | 204.21/0.01 | 177.24/0.01 |
| ANL-50 | 50.000/0.001 | 510.52/0.01 | 443.11/0.01 |
| ANL-100 | 100.00/0.01 | 1021.0/0.1 | 886.2/0.1 |
| ANL-200 | 200.00/0.01 | 2042.0/0.1 | 1772.4/0.1 |
| ANL-300 | 300.00/0.01 | 3063.1/0.1 | 2658.6/0.1 |
| ANL-500 | 500.00/0.01 | 5105.2/0.1 | 4431.1/0.1 |
| BIG | |||
| ANL-1000 | 1000.0/0.1 | 10210/1 | 88622/1 |
| ANL-2000 | 2000.0/0.1 | 20420/1 | 17724/1 |
| ANL-3000 | 3000.0/0.1 | 30630/1 | 26586/1 |
| ANL-5000 | 5000.0/0.1 | 51051/1 | 44311/1 |
