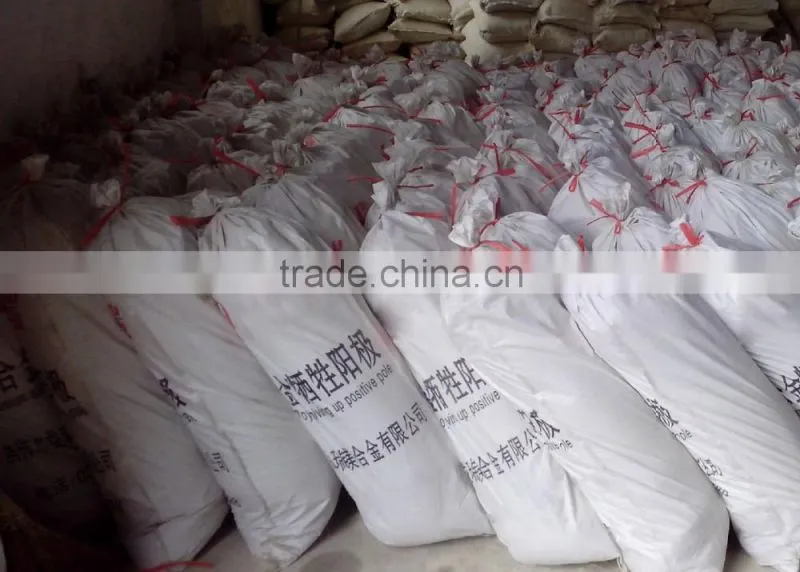

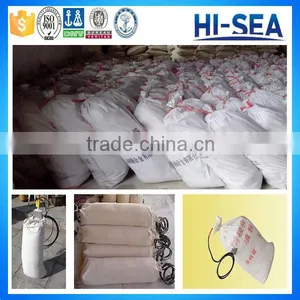

Prepackaged Magnesium Sacrificial Anode with Backfill
Prepackaged Magnesium Alloy Sacrificial Anode with Backfill is developed in order to ensure the construction quality of cathodic protection engineering and simplify the construction procedure, making the construction convenient and rapid. This prepackaged magnesium alloy anode makes the original operations done in the construction site completed in the factory itself, effectively ensuring the construction and installation quality of anode ground bed.
Assembly Configuration
1.Any type of sacrificial anode;
2.A cable lead: length and size as customer required, welded in sacrificial anode, and according to the proportion of epoxy resin and two butyl ester, using glass fiber cloth or PVC heat shrinkable sleeve for sealing;
3.A bag of special filling;
4.A set of Aluminum welding agent;
5.An anode bag.
Magnesium Alloy Sacrificial Anode

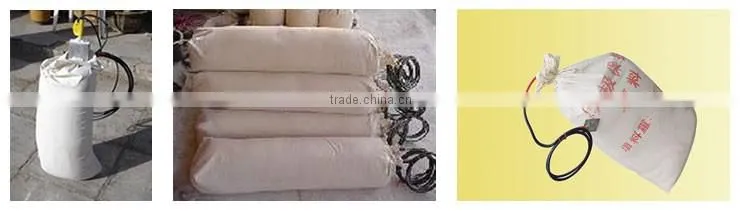

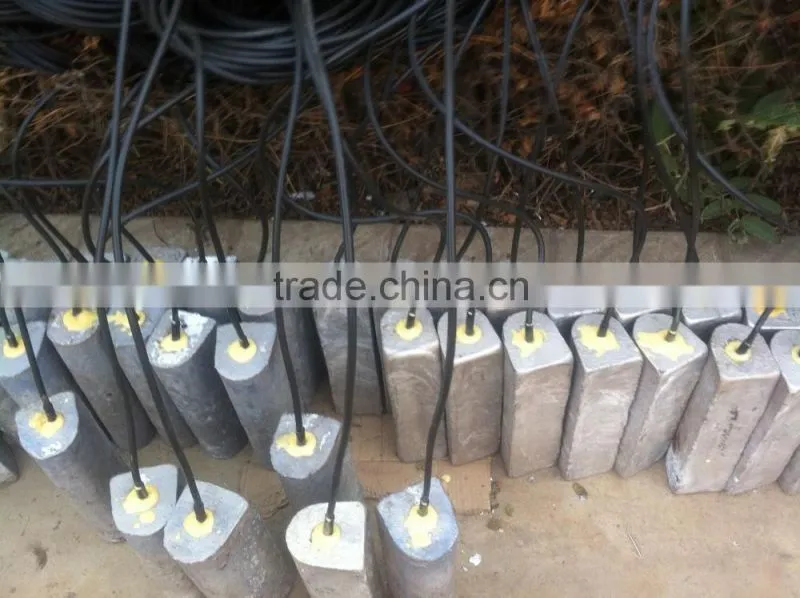

Complete sets of sacrificial anode is composed of one magnesium sacrificial anode, a cable with VV-10mm² and 3m long, 50kg filling bag, a cotton bag and a plastic woven bag, that is to say, there is a magnesium sacrificial anode with whose iron core welding a VV-10mm²and 3meters cable in the cotton bag. The welding point is made of insulation treatment and cased with a heat shrinkable tube. 50kg filling materials are evenly distributed around the magnesium sacrificial anode. The cotton bag is covered by a plastic woven bag.
The Quality Index of the Installation of Magnesium Anode:
Cable Connection Resistance: ＜0.001Ohm
Cable Connection Strength: more than 5 times the weight of the assembled anode.

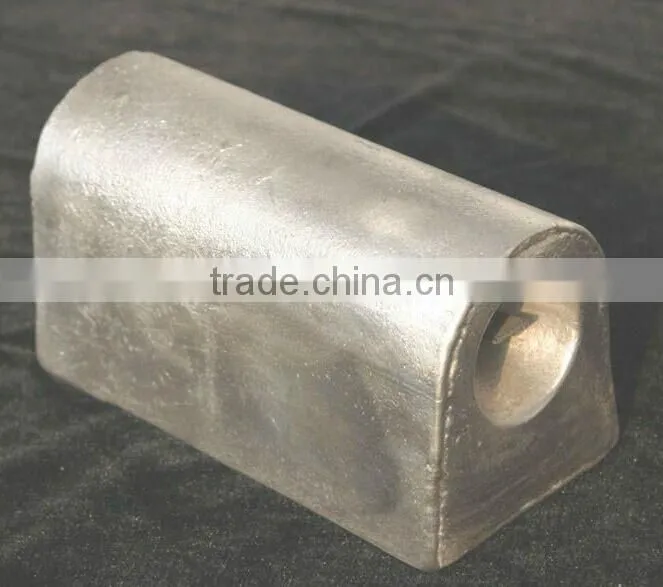

D Type High Potential Magnesium Anode

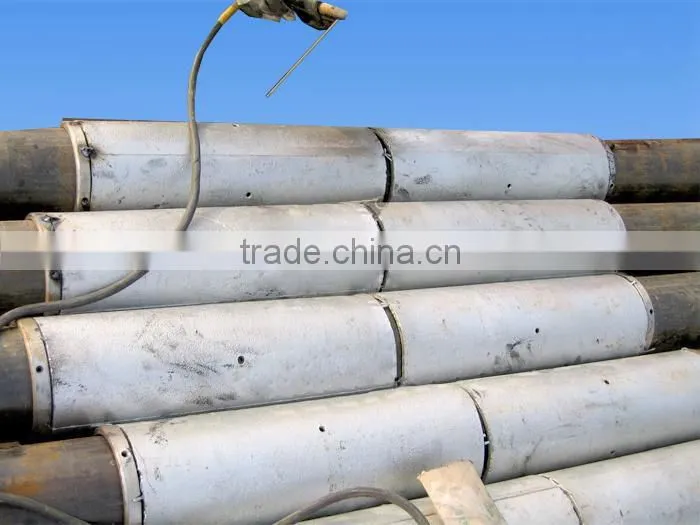

Magnesium Alloy Anode for Oil Well Casing

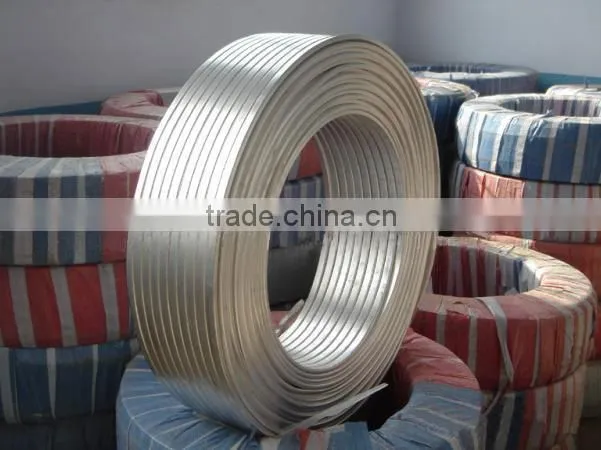

Magnesium Ribbon Sacrificial Anode
Magnesium Alloy Sacrificial Anode

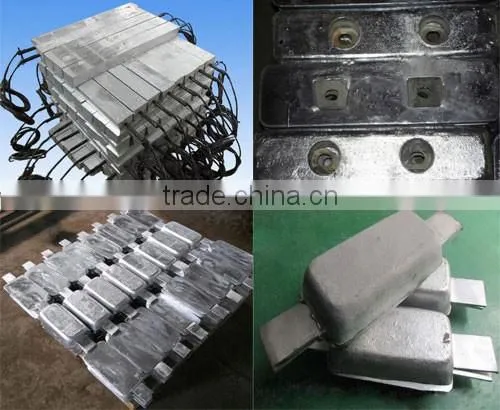

Bolt Connection Type Sacrificial Anode

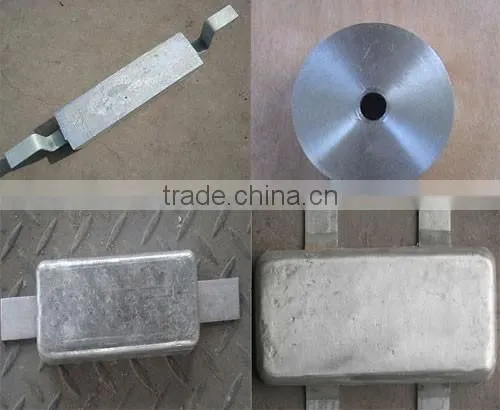

Aluminium Alloy Sacrificial Anode

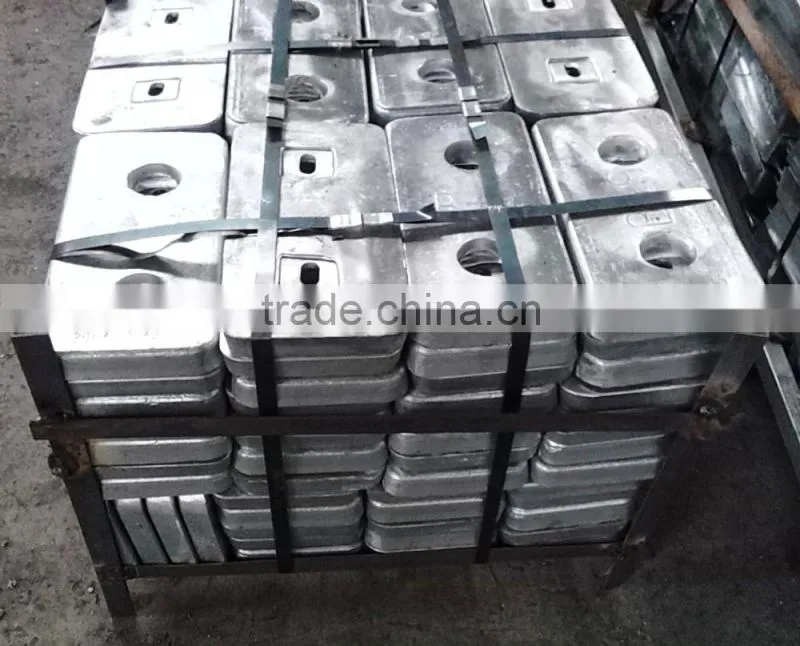

Zinc Alloy Sacrificial Anodes

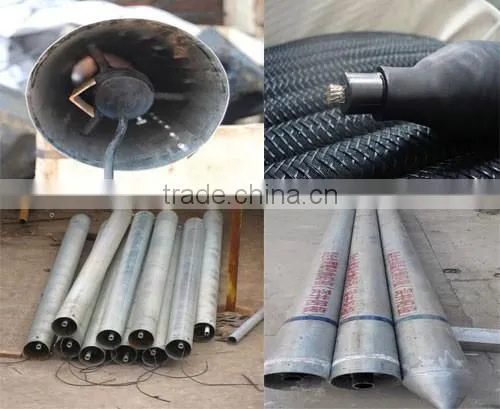

Impressed Current Anodes
Deep Well Anode Under Construction

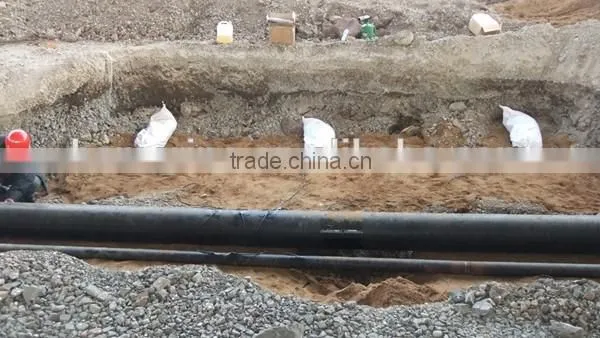

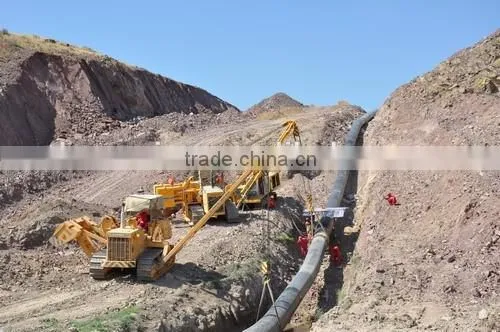

Anode Installation for Oil Pipeline

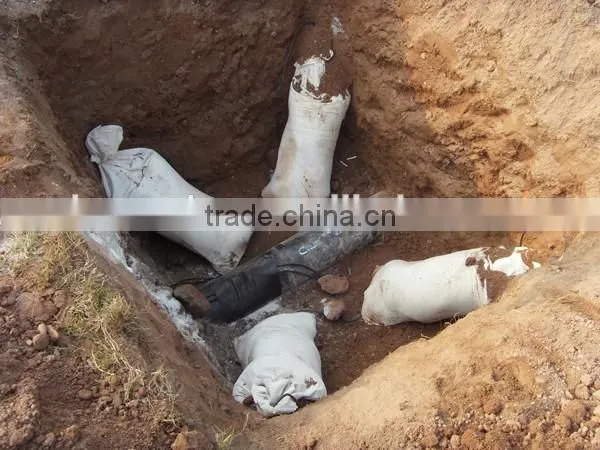

Magnesium Anode Under Construction
Anode Construction Site

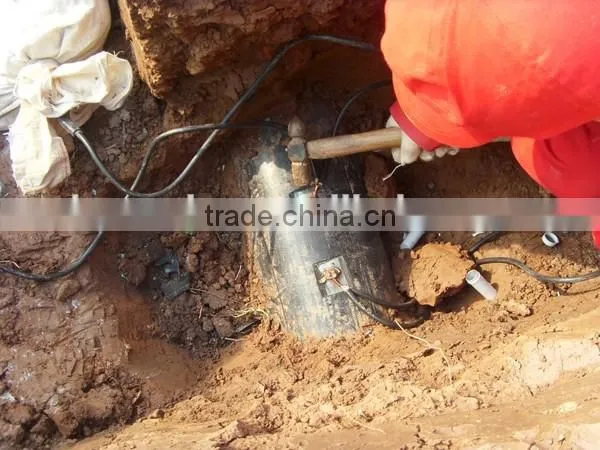

Thermite Welding

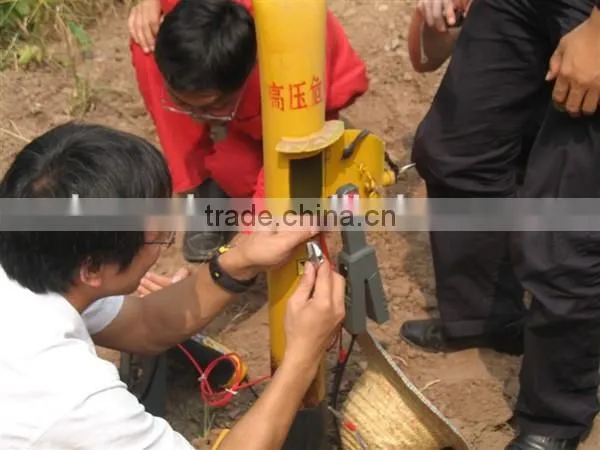

Stray Current Testing

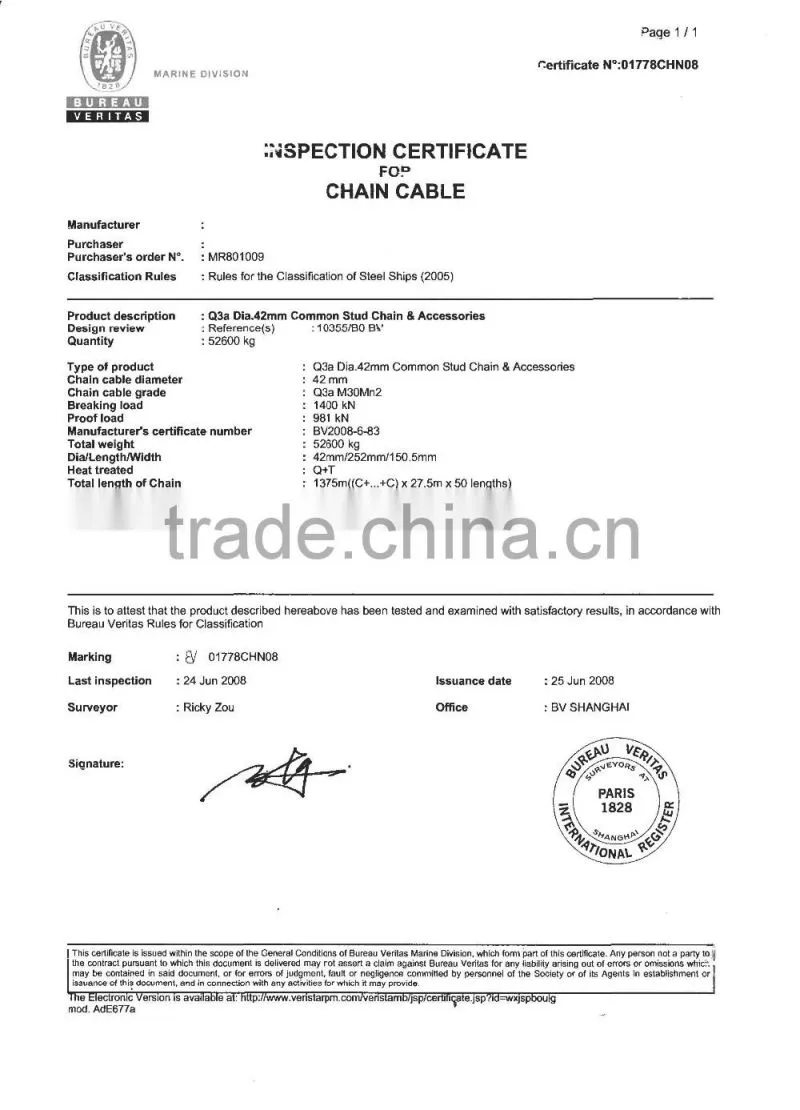

BV

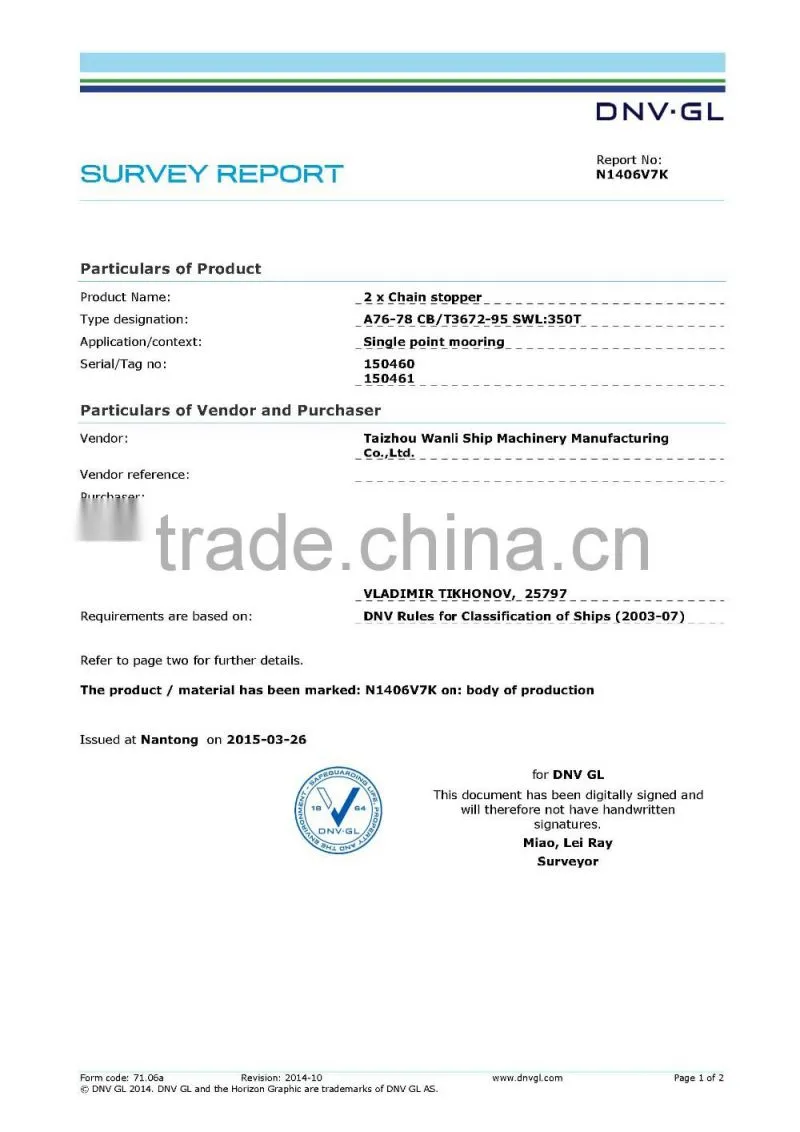

DNV
1.Quality Assurance
All our products are strictly manufactured in accordance with the production standards. Before being issued the product quality certification, all products are inspected and accepted by the technical inspection department of the manufacturing plant.
2.Product Customization Service
Our company can supply both standard and non-standard products to meet your various needs. We can customized products according to your drawings.

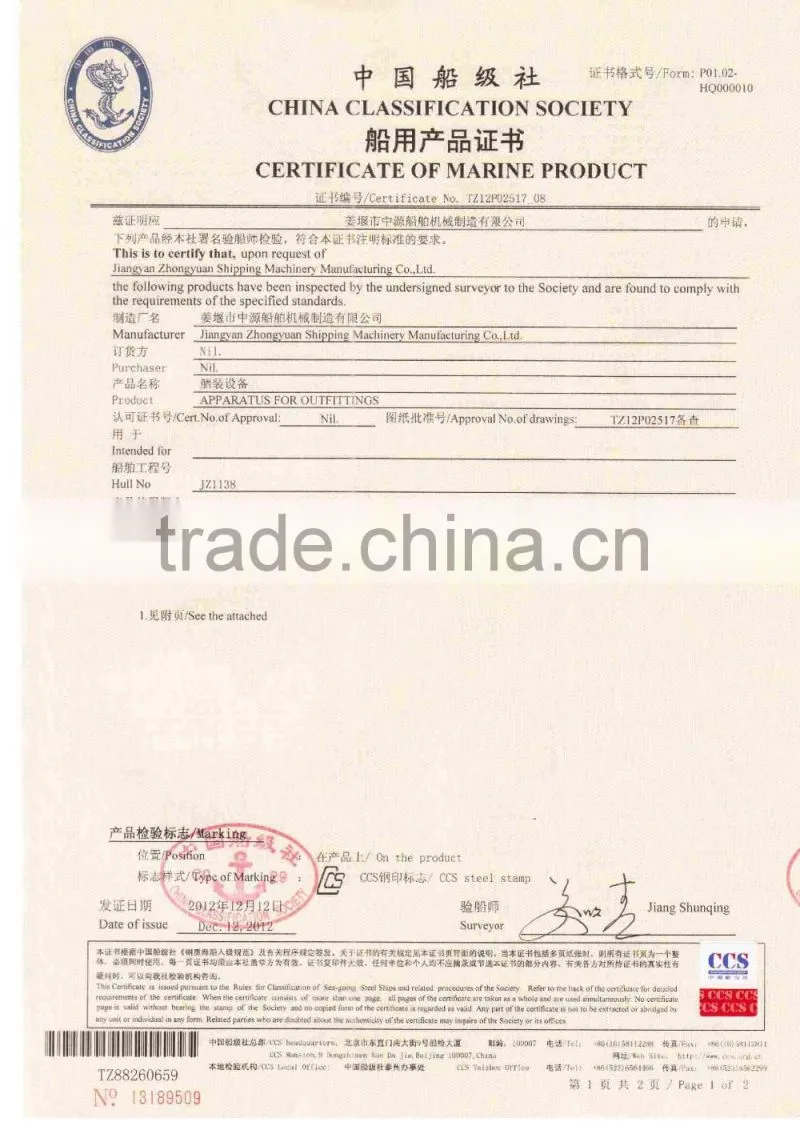

3.Providing Classification Society Certificates
We can supply various certificates of Classification Societies: CCS, ABS, BV, DNV, GL, LR, NK, KR, RINA, RS etc..
4.Excellent Pre-sale and After-sale Service
Our salesmen are adhering to the trading principles of being honest and trustworthy, fair and equitable to provide excellent and satisfactory service for our customers.
Chongqing Hi-Sea Marine Equipment Import & Export Co., Ltd. locates in Chongqing, one of the largest industrial cities in China. We have been engaged in the field of marine and offshore equipment since 1996.
Our main products are as follows: marine deck equipment, marine mooring equipment, marine cables and other electric equipment, marine light fittings, marine lifesaving and safety equipment, marine pipe system fittings (e.g. pumps, valves etc.).
We have two stock factories in Chongqing and more than 20 long-term cooperation factories throughout China.
Our aim is to provide the superior quality products, reasonable price and efficient and professional service. We can also provide ABS, LR, BV, GL, FNV, KR, NK, RINA,CCS certificate for our marine products.
“Integrity, Win-Win and Nonstop Improvement” is our enterprise spirit. We’re looking forward to your visit and negotiation. We believe that we’ll be your reliable partner in China.
Chongqing Hi-Sea Marine Equipment Import & Export Co., Ltd.
Add: 15-1, Jinshan Matrix A, Saidi Rd., New North Zone, Chongqing 401122, China
Fax:+86-23-67956622
