Help CenterLarge Roof Span Roll Forming Machine
Related Products
-
Large Roof Span Cold Roll Forming MachineUS$ 30,000 - 800,000MOQ: 1 Set -
1000-700 Arch Sheet Roll Forming Machine /Large Roof Span Forming MachineUS$ 30,000 - 80,000MOQ: 1 Set
-
600-300 Roof Roll Forming Machine or Steel Sheet Roll Forming MachineUS$ 30,000 - 80,000MOQ: 1 Set
-
914-400 Roof Roll Forming MachineUS$ 30,000 - 80,000MOQ: 1 Set
-
914-650 Roof Roll Forming MachineUS$ 30,000 - 80,000MOQ: 1 Set

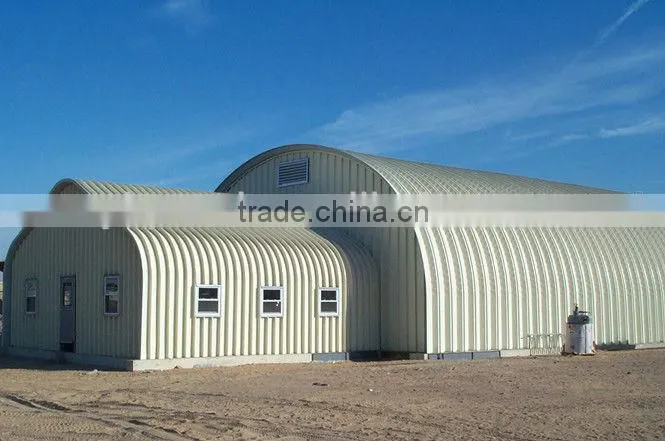

Super large span roll forming machine
Model list of PRO Roll Forming Machine
Model |
Feeding width (mm) |
Effective width (mm) |
Depth of groove (mm) |
utilization ratio |
Thickness of steel coil (mm) |
Largest span (m) |
BH-600-300 |
600 |
300 |
100 |
50% |
0.6-1.5 |
30 |
BH-600-305 |
600 |
305 |
109 |
50.8% |
0.6-1.5 |
28 |
BH-914-400 |
914 |
400 |
210 |
43.7% |
0.6-1.5 |
40 |
BH-914-610 |
914 |
610 |
203 |
66.7% |
0.6-1.5 |
38 |
BH-914-650 |
914 |
650 |
181 |
71.1% |
0.6-1.5 |
26 |
BH-914-700 |
914 |
700 |
123 |
76.5% |
0.6-1.5 |
22 |
BH-914-750 |
914 |
750 |
180 |
82% |
0.6-1.5 |
14 |
BH-1000-610 |
1000 |
610 |
243 |
61% |
0.6-1.5 |
42 |
BH-1000-680 |
1000 |
680 |
223 |
68% |
0.6-1.5 |
38 |
BH-1000-700 |
1000 |
700 |
175 |
70% |
0.6-1.5 |
30 |
BH-1000-750 |
1000 |
750 |
138 |
75% |
0.6-1.5 |
24 |
BH-1000-800 |
1000 |
800 |
114 |
80% |
0.6-1.5 |
18 |
BH-1200-800 |
1200 |
800 |
265 |
67% |
0.6-1.5 |
40 |
BH-1220-800 |
1220 |
800 |
355 |
66% |
0.6-1.5 |
42 |

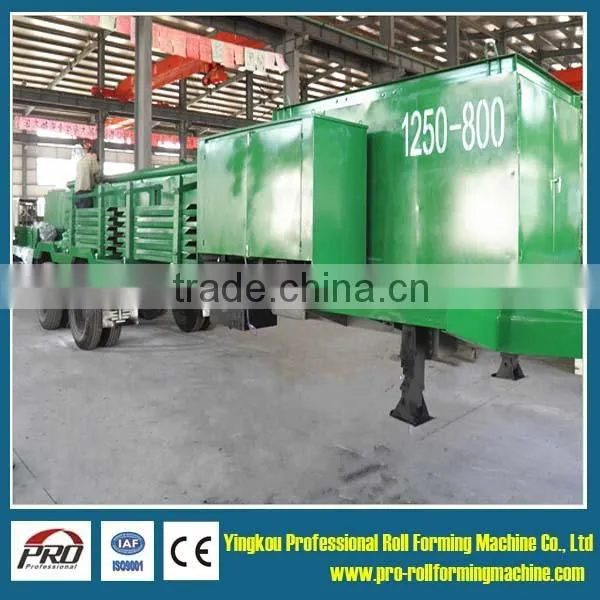

BH-1250-800 |
1250 |
800 |
320 |
64% |
0.6-1.5 |
45 |
Yingkou Professional Roll Forming Machine Co., Ltd.is a professional manufacture of roll forming machine. We can produce many kinds of different models equipments: single axle, double axles, three axles, floor type, whole hydraulic type etc. PLC, servo motor and generator provide software support. We can instruct clients to do projects, offer technical support for clients, including project design, drawing supplied and engineer supplied. Clients who purchase our equipments can create largest profit space.
