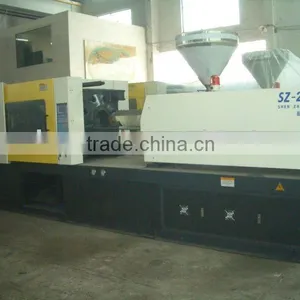

PET Preform Injection Molding Machine SZ-2400A
US$ 24,000 - 26,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Preform Injection
Style:
Horizontal
Brand Name:
SHENZHOU
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Injection Molding Machine SZ-1300ANegotiableMOQ: 1 Set -
Plastic Injection Molding MachineNegotiableMOQ: 1
-
Plastic Injection Molding Machine SZ-3800ANegotiableMOQ: 1
-
PET Preform Injection Molding Machine SZ-3000ANegotiableMOQ: 1
-
Syringe Injection Molding MachineUS$ 10,000 - 100,000MOQ: 1 Set
Type
Preform Injection
Style
Horizontal
Brand Name
SHENZHOU
Model Number
SZ-2400A
Place of Origin
Jiangsu, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
845gram
Injection Rate
245g/s
Clamping Force
240tons
Opening Stroke
530mm
Specifications

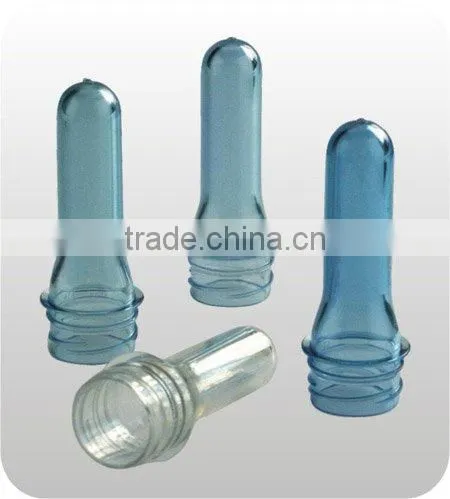

Suitable for Different Kinds of Plastic Items Production, Easy Operation and Simple MainteancePET Preform photo
Screw diameter |
mm |
55 |
60 |
65 |
Screw L/D ratio |
L/D |
22.9 |
21 |
19.4 |
Shot weight |
gram |
605 |
720 |
845 |
Injection capacity |
cm3 |
665 |
791 |
929 |
Injection pressure |
Mpa |
210 |
176 |
150 |
Theoretical injection rate |
g/s |
176.5 |
210 |
245 |
Plastic capacity |
g/s |
26.4 |
32.5 |
40 |
Injection stroke |
mm |
280 |
||
Screw torque |
N.m |
2000 |
||
Max screw rotate speed |
r/min |
150 |
||
Clamping force |
ton |
240 |
||
Opening stroke |
mm |
530 |
||
Space between tie bars |
mm |
555×555 |
||
Mould height |
mm |
200~570 |
||
Max daylight |
mm |
1100 |
||
Ejector force |
ton |
6.15 |
||
Ejector stroke |
mm |
135 |
||
Ejector quantity |
|
9 |
||
Oil pump motor |
kw |
22 |
||
Pump pressure |
Mpa |
16 |
||
Heating power |
kw |
18.5 |
||
Machine size |
M |
6.2*1.6*2.1 |
||
Machine weight |
ton |
8.0 |
||
Oil tank capacity |
L |
440 |
||
International designation |
|
2400-1390 |
||
