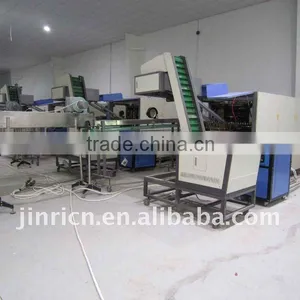

Help CenterBlow Moulding Machine
Related Products
Specifications
Blow moulding Machine; Max. 2L, 3000pcs/hBlow Moulding Machine
1. Water chiller
This is to cooling the mold from the high temperature, there by increase the operation speed and extends the mold's life time. Because during the operation, the mold's temperature will go up, we need to use the water or fan type of chiller to cooling down the mold.
2. High pressure air compressor
It is the air source for the PET stretch blowing molding machine, it carries out the process of compression air from atmosphere to the required pressure, in order to blow up the preform into request bottle shape.
3. Low pressure air compressor
It is supply the air for the cylinder's closing, clamping and machine's movement.
- air filter
It is to clear up the impurities out of the compressed air, like carbon-hydrogen, tiny durst and solid particles.
5. Air cooling dryer
It is to purify, remove and moisture from the compressed air and lower tempearature of the compressed air in the heat exchanger.
6. Air storage tank
It is to receive and supply air for the machine as storage. Only requested by the full automatic, 2 or more than 2 cavity blow molding machine, because these machine consumption more air, evertime compressor produce the air need times, thereby, need the air receiving tank to storage the air.
Remarks:
- Providing the 2D drawing from you.
- our machine's electricity is 220V/Hz50-60, if you need other form of electricity, please DO NOT FORGET to inform us.
- Mold guarantee: 15 million shots.
- mold steel material P20.
SPARE PART'S BRAND NAME
serial no |
DESCRIPTION |
BRAND NAME |
|
1 |
CLOSING CYLINDER |
GERMAN FESTO |
|
2 |
STRETCHING CYLINDER |
GERMAN FESTO |
|
3 |
MOVING CYLINDER |
GERMAN FESTO |
|
4 |
MOLD LIFTING CYLINDER |
GERMAN FESTO |
|
5 |
CLOSING MAGNETIC VALVE |
GERMAN FESTO |
|
6 |
STRETCHING MAGNETIC VALVE |
GERMAN FESTO |
|
7 |
BLOWING MAGNETIC VALVE |
GERMAN FESTO |
|
8 |
MOVING MAGNETIC VALVE |
GERMAN FESTO |
|
9 |
VOLTAGE REGULATOR |
DELEX-JAPAN |
|
10 |
VOLTAGE SWITCH |
GERMAN FESTO |
|
11 |
COMPUTER CONTROLLER |
MITCHBISHI |
|
12 |
COMPUTER CHECKING SWITCH |
OMLON-JAPAN |
|
13 |
INFRARED LAMP |
CHINA |
|
14 |
MOVING VALVE |
GERMAN FESTO |
|
15 |
OPEN CIRCUIT CONTROLLER |
DELEX-JAPAN |
|
16 |
HEAT CONTINUE CONTROLLER |
DELEX-JAPAN |
