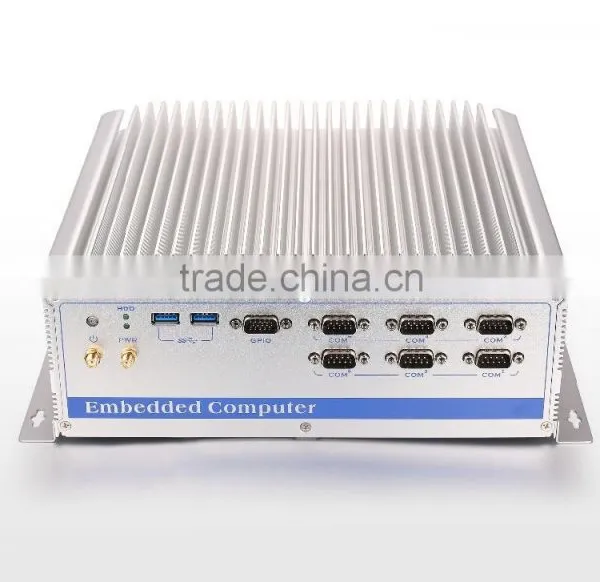

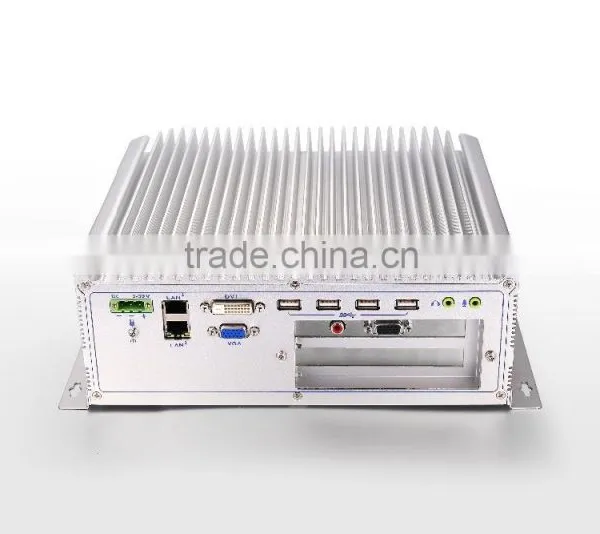

Intel Broadwell I3/I5/I7 CPU PCI Industrial Embedded Computers NIS-H899
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Embedded Computer
Brand Name:
YACOO
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Intel Haswell/Broadwell U-series CPU Industrial Embedded Computers NIS-898NegotiableMOQ: 1 Piece -
Intel Haswell/Broadwell U-series Industrial Computers NIS-H899NegotiableMOQ: 1 Piece
-
Intel Atom Industrial Fanless Mini PC NIS-928 Embedded PCNegotiableMOQ: 1 Piece
-
Intel Haswell I3/I5/I7 CPU 4*LAN Embedded Industrial Computer NIS-H892NegotiableMOQ: 1 Piece
-
Intel Atom N2600/2800 CPU Fanless Industrial PC NIS-928 Embedded Box PC Barebone SystemNegotiableMOQ: 1 Piece
Products Status
Stock
Type
Embedded Computer
Brand Name
YACOO
Model Number
NIS-899
Place of Origin
Guangdong, China
| Specification | ||
| Processor | CPU | Intel® Haswell/Brodwell U-series CPU (Duo Core),Celeron/I3/I5/I7 CPU compatible,15-28W CPU |
| CPU Package | Onboard | |
| FSB | DMI | |
| Chipset | Intel® Haswell/Brodwell U-series | |
| BIOS | System BIOS: SPI BIOS,Chargeable CMOS battery 65mah | |
| Memory | Architecture | Single Channel Low voltage DDR3 1666 MT/s |
| Capacity | MAX 16GB | |
| Socket | SODIMM | |
| Display | Graphic Controller | Intel® HD4000/5000/6000 series Graphic media accelerator |
| DVI | DVI-I port, Max. resolution:4K | |
| VGA | Support VGA output | |
| Dual Display | VGA+DVI Synch. Or Asynch. Display | |
| LAN | Controller | LAN1: Intel®I210 GbE network |
| LAN2: Intel®I210 GbE network | ||
| POE POWER Module (optional) | ||
| Audio | Controller | Realtek HD ALC662 audio decoder(right&left channel + MIC) |
| Super I/O | Controller | NTC6106 SIO |
| H/W Monitoring | Watch Dog Timer | 0-255 sec., provide watch dog routine |
| Temp. Detect | Support CPU/Motherboard/HDD temp. detect | |
| I/O | USB 3.0 | 2 x USB 3.0 PORT |
| USB 2.0 | 4* USB2.0 / 1.1 (compatible),support max.+5V@1A. | |
| Serial Port | Com1 9-wire RS232/RS485 optional ,PIN9 jumper select +5V/+12V/RING,TX/RX signal, support 4000V surge protection | |
| Com2 3-wire RS232TX/RX signal, support 4000V surge protection | ||
| Com3-COM4 3-wire RS232/RS485 optional,RS232 TX/RX signal,support 4000V surget protection,RS485 support isolation protection | ||
| COM5-COM6 3-wire RS232TX/RX signal, support 4000V surge protection | ||
| GPIO | 12 bit, provide routine, freely degine I/O,3.3V@24mA level | |
| Expansion BUS | LPC BUS | Support,4*COM scalable |
| SMBUS | Support,multi GPIO scablable | |
| Mini-PCIe | 1* half-size Mini-PCIe socket, support PCIe & USB device | |
| 1*full-size Mini-PCIe socket, support USB 3G/4G communication module | ||
| 3G UIM socket | ||
| 3 Extended Modes | 1.2-way PCI extendible | |
| 2. 1-way PCIE 4X, and 1-way PCIE 1X extendible | ||
| 3. 1-way PCIE 4X, and 1-way PCI extendible | ||
| TPM Encryption | Optional | |
| Storage | SATA | 2*standard 7PIN SATA connector,plus externalSATA HDD power connector |
| M-SATA | 1* full-size m-SATA scoket, max transmission rate: 3Gb/s | |
| Power | Power Type | AT/ATX mode via jumper selection,DC+9V-30V input, LTM3780 power design, support power reverse and over-voltage protection. 3PIN 5.08mm phoenix connector. |
| LED Status Indicator | LED | HDD LED |
| POWER LED | ||
| Environment | Operating Temp. | -20°C ~ 60°C |
| Storage Temp. | -40°C ~ 80°C | |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing | |
| Storage Humidity | 0% ~ 90% relative humidity, non-condensing | |
| Dimensions | 260 x 225 x 105mm | |
| Weight | 4.2KG | |
| Certificate | FCC, CE, RoHS standard |
