New Tester for Common Rail System

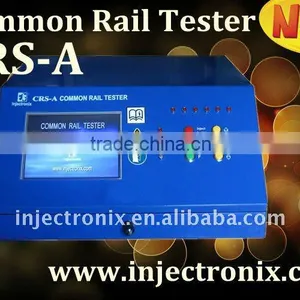

New Tester for Common Rail System thumbnail-1
New Tester for Common Rail System photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
Injectronix
Model Number:
CRS-A
Contact Supplier Request Quote Chat Now
Injectronix Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name Injectronix
Model Number CRS-A
Power Electronic
Usage Auto Testing Machine

Specifications

Integrate the mature technologies to test all types of common rail injectors and pumps by Bosch, Delphi, Denso and Siemens.

New Tester for Common Rail SystemNew Tester for Common Rail System

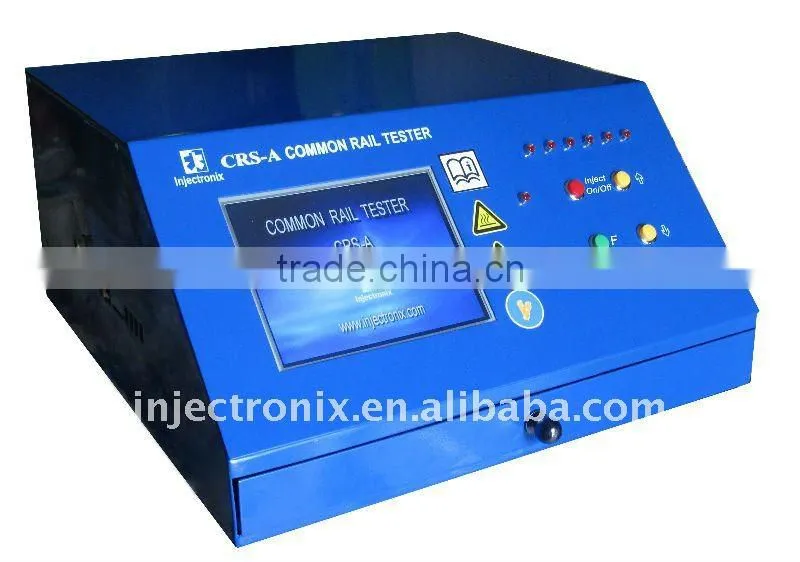

CRS-A Common Rail Tester is the electronic equipment for testing all kinds of common rail fuel injection injectors and pumps by Bosch, Delphi, Denso and Siemens. Upgrade a traditional diesel high pressure pump test bench to a full functioned equipment for all tests of repairing common rail injectors, pumps or CR systems

CRS-A Applications



CR Injector Drivers:

     6 solenoid injectors

      High voltage for Bosch, Denso injectors

     Low voltage for Delphi injectors

     6 piezoelectric injectors, made by Siemens

     Short circuit protection for both solenoid and piezo injector drivers





CR Pump Drivers:

Multiple independent PWM (Pulse Width Modulation) output channels to drive pump solenoids

Testing pumps with single regulation valve

Bosch CP1/CP2/CP3

Delphi CRSP

Denso HP3/HP4

Testing Siemens DCP pump with two regulation valves

Drive 3 DRVs for testing pump capability

2 special output channels synchronous with pump speed to drive the two control solenoids on Denso HP0 (ECD-U2)pump



 Fuel Rail Pressure Sensor

        Pre-calibrated for Bosch, Delphi, Denso pressure sensors

         User calibrateable for different pressure sensor

        Automatic rail pressure control

        Software based over-pressure protection



 User Interface

Touch screen with a simple 4-key panel

User friendly multi-language interface

User manageable test database

Standard keyboard and mouse

Standard SD card port for system software upgrade, a SD card is included in the package

6 LED to indicate injector status

Standard VGA port for external large screen display



 Others

        One year manufacture warranty

        One year software free upgrade

        Injector and pump test procedure and database

        DRV adaptor for pump flow rate test (Optional)

        Rich accessories

        Matching supporting cabinet with 4-wheels(Optional)
