Specifications
1)We have passed ISO9001 Quality System Certificate2)Competitive price
3)Best Quality
4)Various specification
high quality gabion cages :
1.Brief introduction

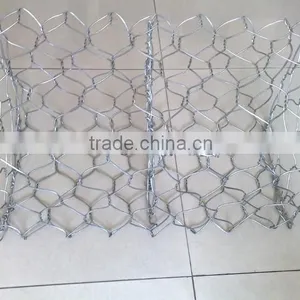

Woven mesh gabion boxes are hexagonal, double-twistedwire-meshstructures.
The gabion boxes are divided into chambers by inserting diaphragms every meter. The wire used for making the boxes is made of thickly plated mild steel. The gabion units are delivered to the site flat-packed.
The double-twisted mesh connections of the woven mesh prevent the mesh from coming apart if the wire is cut or snaps, in each case the location of the fault is restricted to the neighbouring areas. The units are attached to each other using stitching wire and/or staples.
Technical characteristics
material: low carbon iron wire wire dia: 2mm~5mm width of a roll:0.9m~1.95m length of a roll:10m~50m... Material: Galvanized Iron Wire
2.the specification of the gabion wire mesh
Mesh |
Wire Dia.(mm) |
Aperture(mm) |
2meshx2mesh |
wire dia.1.60 |
11.10 |
4meshx4mesh |
wire dia.1.0 |
5.35 |
6meshx6mesh |
wire dia.0.80 |
3.43 |
8meshx8mesh |
wire dia.0.60 |
2.57 |
10meshx10mesh |
wire dia.0.50 |
2.04 |
12meshx12mesh |
wire dia.0.50 |
1.61 |
16meshx16mesh |
wire dia.0.40 |
1.18 |
20meshx20mesh |
wire dia.0.30 |
0.97 |
30meshx30mesh |
wire dia.0.23 |
0.62 |
40meshx40mesh |
wire dia.0.21 |
0.43 |
50meshx50mesh |
wire dia.0.19 |
0.32 |
60meshx60mesh |
wire dia.0.15 |
0.27 |
If you have any questions,please don't hesitate to contact me.
