MPEG-2 IP Decoder12 channel Ip in, CVBS out

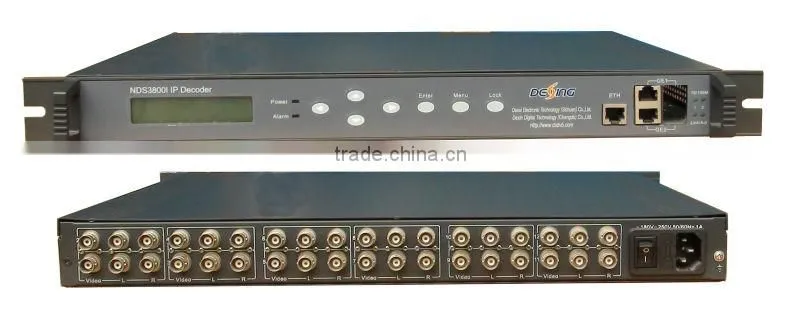

MPEG-2 IP Decoder
Outline:
NDS3800I MPEG-2 Multi Channels IP Decoder is an embedded digital image communication product, which is developed by our company with independent intellectual property rights. It’s an advanced digital broadcasting and television system. It supports IP trans TS stream, combined with AV output. Based on PID package exchange technology, it can decode the input multi path digital bit rate signal, analyze the input MPTS, and can input EPG, CA, and data broadcast at the output bit rate. Besides, IP decoder is capable to receive 1 giga Ethernet interface of one path , which including 12 TS stream, and for digital television transmission. Definitely, it conforms to the MPEG-2 transport layer standards.
Feature:
Compliance with ISO13818 and EN300 468 standards
12 MPEG-2 decoders in a true 1RU chassis
Supporting MPEG-2 decode
Up to 12 different transport stream over IP
Dual GbE port for link redundancy
With 12 AV output
With GE input interface, support more than 900Mbps input code stream maximally
Support multicast and uni-cast input simultaneously
Real-time code stream monitoring
Support local and remote control
LCD display, flexible and user-friendly in operation
High reliability design, stable in running
Specification:
Input interface |
IP |
2 Routes (including 12 TS transport stream) |
|
Decode Output |
12 AV output |
||
PID Re-mapping | |||
PCR calibration | |||
Generated PSI/SI table automatically | |||
MPEG IP |
Maximum TS bit rate 1Gbps |
||
Maximum program 128 per stream | |||
Maximum stream quantity 12 | |||
Ethernet/IP/UDP encapsulation | |||
AV output |
Resolutions |
MPEG2 PAL 720*576 NTSC 720*480 |
|
Video frame rates |
PAL 25frame/second; NTSC 30frame/second |
||
Audio decode |
MPEG-1,MPEG-2 layer I and II |
||
Audio frequency |
12 analog audio stereo balanced interfaces |
||
Sampling frequency |
32,44.1,48Khz |
||
Management Interface |
Asynchronous serial interface |
RS232 |
Ethernet interface |
10/100M |
|
Control |
SNMP |
|
LCD front panel | ||
Management interface |
10/100Base-T,RJ45 |
|
Remote service interface |
10/100Base-T,RJ45 |
|
Local service interface |
RS-232,DB-9 male, local control key-press |
|
Miscellaneous |
Dimension |
44mm×400mm×430mm |
Temperature |
0~45°C(Operating);–20~80°C(Storage) |
|
Power | ||
