Help CenterDigital to Analog Video Decoder
Related Products
Specifications
digital to analog audio decoder4 ASI input, 4 CVBS output
MPEG2 compatible
digital to analog video decoder
Brief Introduction

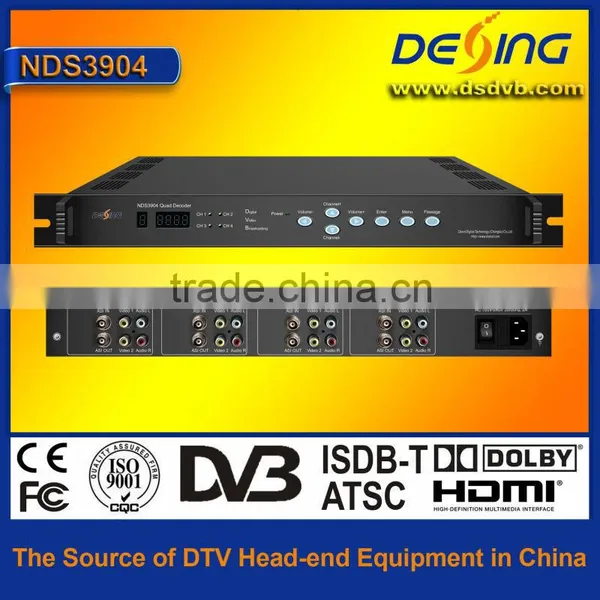

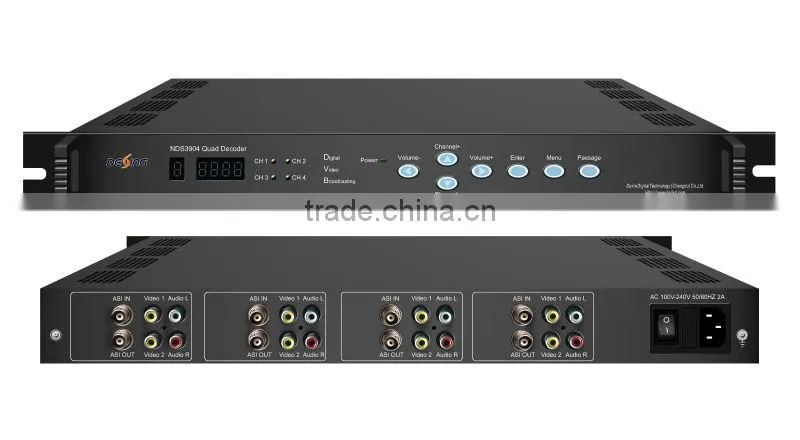

NDS3904 quad decoder is DEXIN’s new design 4-in-1 MPEG2 TS decoders. It supports 4 ASI input and after decoding progress, it outputs 4 separate A/V signal. It also support TS loop out over ASI port. This modularized design largely saves the cost of the transport freight, the space of frame rack and power consumption. In general, it can provide users with more convenient operating and maintenance experience. .
Key Features
l
4 separate modules in 1U case
4 channels ASI input, 4 channels A/V output, 4 ASI loop out
User-friendly and easy operating
Auto-switching PAL/NTSC
Auto-saving the latest channel
l Standard 19″1U structure
Technical Specifications
Signal Input |
4×ASI (BNC interface) |
|
Decoding Standard |
MPEG-2 |
|
Video OUT |
4×CVBS (RCA interface) |
|
Audio OUT |
4×Stereo Audio (L/R) |
|
ASI Loop OUT |
4×BNC interface |
|
Miscellaneous |
Management |
LED /Control Buttons |
Dimension |
44mm×482mm×410mm |
|
Temperature |
0~45°C(Operating), -20~80°C(Storage) |
|
Power |
AC 90~220V, 50/60Hz, 25W |
|

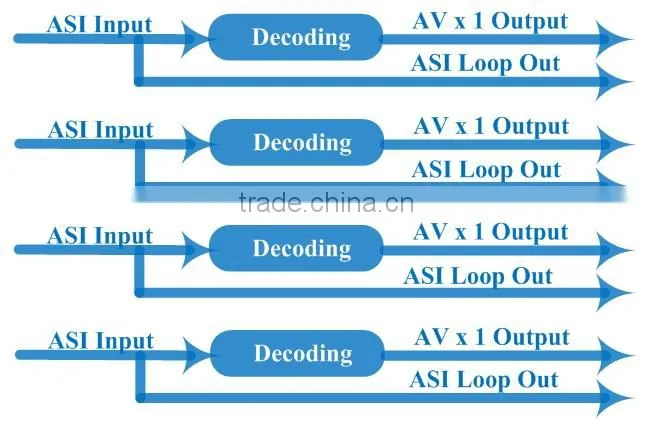

Principle Chart
