Model

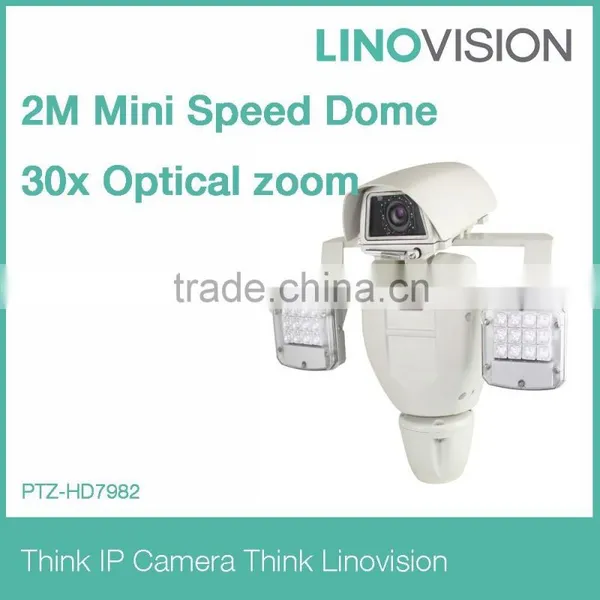

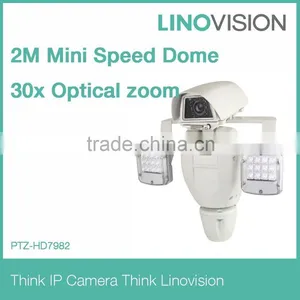

PTZ-HD7982: 2.0M CMOS High-Speed Positioning system, 25/30fps@1080p/720P resolution, 30x optical zoom, 4.3-129mm lens, Support DWDR, ICR Day/Night, IP66, IR 200m
Feature
> 1080P Full and 720P HD excellent image quality
> Powerful 30x optical zoom
> Pan range: 360° endless, speed up to 100°/s
> Up to 255 Presets, 8 Tour, 5 Pattern, 5 Auto scan
> Support intelligent 3D positioning
> IR Distance up to 200m, IP66
> Free CMS, free mobile phone APPs
Specification
Model |
PTZ-HD7982 |
Camera | |
Camera Model |
DH-SDZ2030EB-N |
Image Sensor |
1/3" Exmor CMOS |
Effective Pixels |
1920(H) x 1080(V), 2 Megapixels |
Scanning System |
Progressive |
Electronic Shutter Speed |
1/1 ~ 1/10,000s |
Min. Illumination |
Color: 0.05Lux[at]F1.6, B/W: 0.005Lux[at]F1.6 |
S/N Ratio |
More than 50dB |
Day/Night |
Auto(ICR) / Color / B/W |
Backlight Compensation |
BLC / HLC / DWDR(Digital WDR) |
White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
Gain Control |
Auto / Manual |
Noise Reduction |
2D / 3D |
Privacy Masking |
Up to 24 areas |
Digital Zoom |
16x |
Video Output |
BNC(1.0Vp-p/75Ω), PAL / NTSC |
Lens | |
Focal Length |
4.30mm ~ 129mm (30x Optical zoom) |
Max Aperture |
F1.6 ~ F5.0 |
Focus Control |
Auto / Manual |
Angle of View |
H: 65.1° ~ 2.34° |
Close Focus Distance |
10mm ~ 1200mm |
Video | |
Compression |
H.264 / MJPEG |
Resolution |
1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/ |
Frame Rate |
Main Stream: 25/30fps@1080P/720P |
Sub Stream: 25/30fps@D1/CIF | |
Bit Rate |
H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps |
Network | |
Ethernet |
RJ-45 (10/100Base-T) |
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
ONVIF |
ONVIF Profile S |
Max. User Access |
20 users |
Smart Phone |
iPhone, iPad, Android, Windows Phone |
Pan/Tilt System | |
Pan Range |
360° endless |
Pan Speed |
0.1° ~ 75°/sec |
Tilt Range |
-90° ~ 40° |
Tilt Speed |
0.1° ~40°/sec |
Positioning Accuracy |
±0.02° |
Preset |
255 |
Tour |
8 |
Pattern |
5 |
Auto Scan |
5 |
Idle Motion |
Support |
3D Positioning |
Support |
Preset Auto-Calibration |
Support |
Remote P/T/Z Reset |
Support |
Wiper |
Built-in |
LED Infrared Light | |
IR Distance |
200m |
IR Wave Length |
800~900nm |
IR Emission Angle |
≤30° |
Auxiliary Interface | |
Memory Slot |
Micro SD, Max 64GB |
RS485 |
Duplex |
Alarm |
2/1 channel In/Out |
General | |
Power Supply |
AC 24V/5A |
Power Consumption |
≤100W |
Working Environment |
-40ºC ~ 60ºC / Less than 90% RH |
Protection |
IP66, All-metal aluminum alloy, 6000V anti-lightning surge |
Weight |
21Kg |

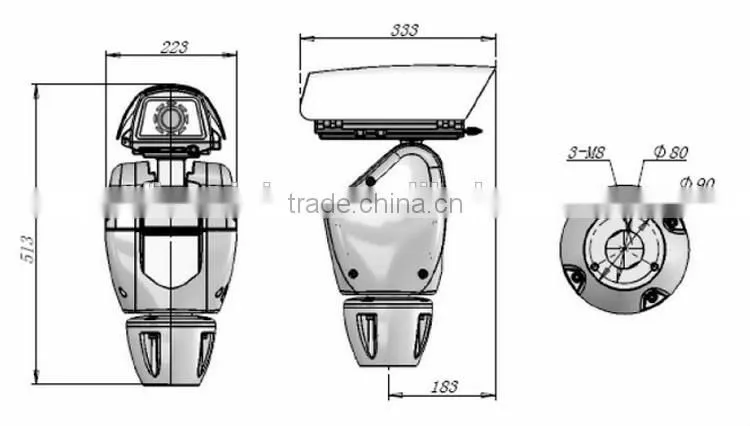

Dimension (mm)
WEB, Mobile App and CMS:
Package:
All of our products are neutral packing.
Shipping:
- Lead time: for most of our popular models, we have them in stock for small quantity. And we will ship them immediately after payment is confirmed. For other products, it will take about 2-3 weeks for manufacturing and quality control process;
- We generally ship goods via express couriers like DHL, FedEx, which we have special discount with them. You can also arrange shipping agent to pick up goods from our stock house.
OEM:
We provide OEM service, including Logo, Sticker, Software, etc.
Warranty:
- 2 year hardware warranty
- life-time software upgrade and technical support
Think IP camera, think Linovision.
In the last 8 years, we are proud of designing and manufacturing a complete line of IP cameras, as well as DVRs, NVRs, IP Speed Domes, PC based DVRs, management software, PoE switches, etc.
With headquarters in the city of Hangzhou (China), we are working closely with several world-leading manufacturers here, like Hikvision, Dahua, etc.
Our Core Competence includes:
- Excellent product quality as you can expect from other big brands;
- Capable of hardware/software customization according to your specific requirements;
- Faster response and speed delivery;
- We insist on win-win cooperation, most of our partners are growing together with us in the last 5 years.
