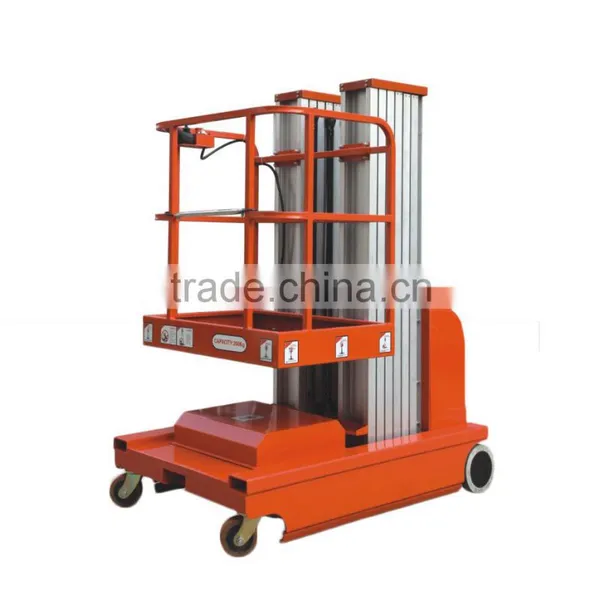

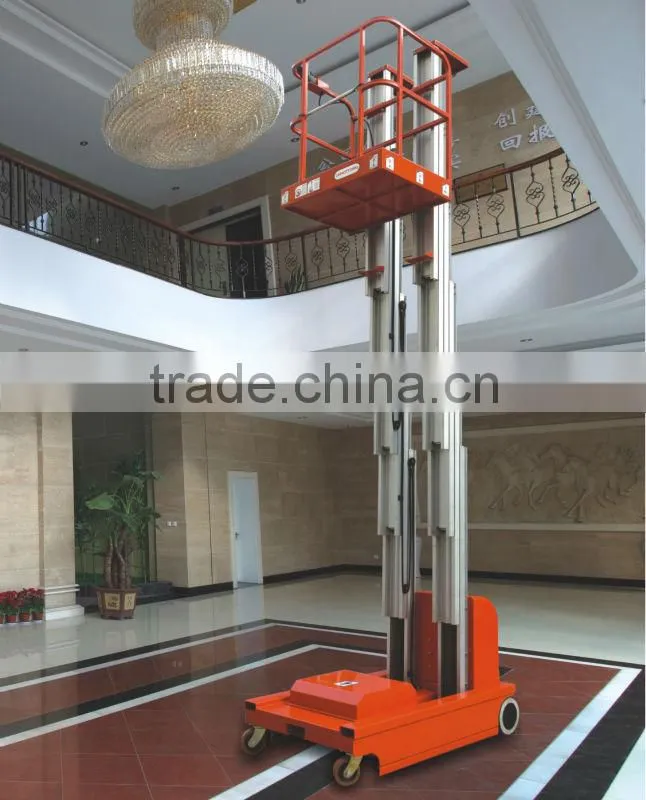

Help Center9.0m Self-Propelled Double Mast Aluminium Work Platform
Related Products
-
10m Tilting Aluminium Alloy Lifting PlatformUS$ 1 - 4,000MOQ: 1 Unit -
8.0m Tilting Aluminium Alloy Lifting PlatformUS$ 1 - 4,000MOQ: 1 Unit
-
6.0m Tilting Aluminium Alloy Lifting PlatformUS$ 1 - 4,000MOQ: 1 Unit
-
6.0m Whole-electromotion Scissor-type Aloft Lifting Platform.US$ 1 - 9,000MOQ: 1 Unit
-
7.4m Whole-electromotion Scissor-type Aloft Lifting Platform.US$ 1 - 9,000MOQ: 1 Unit
Specifications
Aluminium working platform1. Platform size:1000*700*1150mm
2. Max.machine height:10500mm
3. Capacity:150Kg
4. With CE
Advantages
The double mast lifting equipment has the following characteristics:
1.Lift or fall steadily: The seamless transmission is used between the lifting masts, thus minimizing the amount of sway after lifting.
2.Safe and reliable: The four turning stabilizers of the unit connected to the four corners of the chassis support the MEWP during work.
They are designed for leveling regulation and preventing inclination. They are composed of stand bars and turning legs.
The stand bars are installed in the turning legs. Extending out the turning legs before operating the unit enlarges the area of supporting.
Therefore, the steadiness of the whole platform is guaranteed.
3.Convenient: The whole work platform is light because the lifting masts are made of alloy aluminum.
The structure is compact and the volume is small, so only one person can move the equipment and carry it through a very narrow passage.
Specifications
| Model number | FAWP9-2000 | |
| Max.platform height | mm | 9000 |
| Max.machine height | mm | 10500 |
| Min.platform height | mm | 530 |
| Ground clearance | mm | 70 |
| Rated lift capacity | kg | 150 |
| Platform size | mm | 1000x700x1150 |
| Max.travel speed(platform stowed) | km/h | 3-4 |
| Min.travel speed(platform Elevated) | km/h | 0.6-1 |
| Minimum turn radius | mm | 1600 |
| Max. Climbing Capacity | % | 10-15 |
| Caster size | in | 6 |
| Driving wheel size | mm | Φ230x80 |
| Drive motor | V/kw | 2x24/0.4 |
| Lifting motor | V/kw | 24/2.2 |
| Aneroid battery | V/Ah | 2x12/150 |
| Charger | V/Ah | 24/15 |
| Pothole protection system | / | Mechinery control |
| Overall length | mm | 1500 |
| Overall width | mm | 1000x700x1150 |
| Overall Height | mm | 1960 |
| Overall weight | kg | 1250 |
Product details
Our Services
At Shintool machinery, we supply ONE-STOP-SHOP solution service for warehouse equipments and Chinese brand forklift parts.
Depends on 7 years experience and profession on the Chinese export business, any customer who have the business with us and also any other Chinese suppliers, we can be the position of supplying ONE-STOP-SHOP export service.
Our nearest export port is Shanghai, and Ningbo.We can be the main exporter who is in charger of connecting other suppliers, organizing the shipment, LCL load, one B/L supply and other export issue service.
Warranty details
SHINTOOL provide the warranty period to Motorcycle hydraulic scissor lift, for a period of 1 year after the date of Bill of Lading.
During the warranty period SHINTOOL guarantee to supply free replacement parts to any defective of SHINTOOL product which proved to be
defective in material or workmanship when under proper operation during warranty period.
After the period of warranty, the customer can send the required parts no.s which shows on the parts book, SHINTOOL will sendquotation for
the new replacement parts. Any technical questions can send to SHINTOOL and SHINTOOL will reply in 24 hours.
