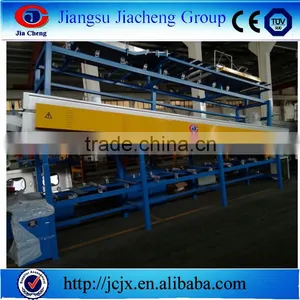

Help CenterHigh Speed Offline Annealing and Tin-coating Machine 40H/6
Related Products
-
High Speed Offline Annealing and Tin-coating Machine 40H/4.5/6/7.5US$ 1 - 1MOQ: 1 Set -
Whole Line Offline Annealing and Tin-coating MachineUS$ 1 - 1MOQ: 1 Set
-
Online Continuous Annealing and Tinning MachineNegotiableMOQ: 1 Set
-
Annealing and Tinning MachineNegotiableMOQ: 1 Set
-
On-line Annealing Tin-coating MachineNegotiableMOQ: 1 Set
Specifications
1) High production capacity2) For the annealing of copper, Al-Mg alloy wire, CCAW, CCSW
3)OEM
4)TUV
JIANGSU JIACHENG MACHINERY CO., LTD
Our company occupied 70000 square meter,with 9 storys office building and multiple workshops.We would like to service for the manufacture of Cable and Wire ,enameled wire ,magnetic wire,electron beam,cutting line, and S.S.wire with all our heart. Sincerely welcome you to visit us!
Company

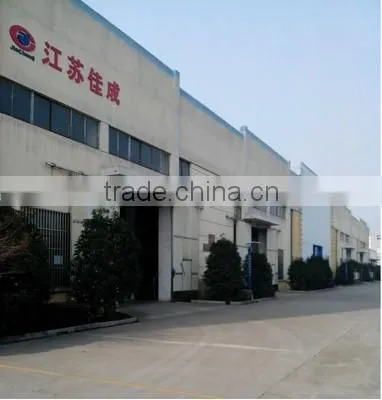

Office building The factory
Our exhibition
Main usage: to increase the amount of wire softening, conductive, tin
Main feature :
1) Dual tinning tank design
2) Can produce 2 kinds of tin-coated copper wires
3) Spooler arranged in double layers, saves space
Technical parameter:
Machine type |
JCJX-40H/4.5 |
JCJX-40H/6 |
JCJX-40H/7.5 |
No.of wire |
40 |
40 |
40 |
Length of Annealing tank (m) |
4.5m |
6m |
7m |
Wire dia (mm) |
0.08~0.32 |
0.1~0.65 |
0.1~0.7 |
Pressure regulator (kw) |
0.75 |
||
Pay-off stand |
Brush or overhead |
||
Tinning type |
Hot coating |
||
Max speed (m/min) |
300m/min |
||
Pay-off bobbin size (mm) |
φ300mm |
||
Take-up bobbin size |
5’’~8’’ |
5’’~10’’ |
5’’~10’’ |

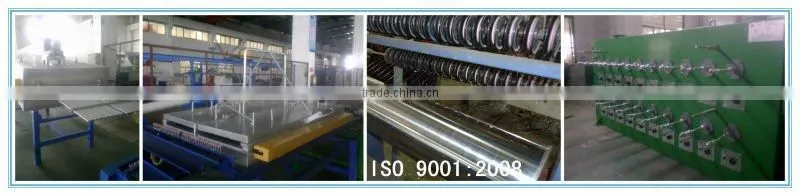

The wire production line:
The competitive advantage:
1. our industry has more than 12 years experience in wire and cable machinery and equipment manufacturing.
2. 40 head of high speed pipe type annealing furnace, 50cm thickening, four-side reflecting, uniform heating, thermal insulation and energy saving, has been granted the national patent.
3.40 high-speed take-up machine, it has high work efficiency, suitable for users who need great production.
our shanghai exhibition:
Our location:
After-sell service
1. Pre-sale training:
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
2. Guarantees
Since the shipment date, 12 month for mechanical part, and 6 month for electrical part.
