1-2T/H capacity broilers laying hens feed pellet production line, chicken feed production line
How to build 1-2T/H capacity broilers laying hens feed pellet production line, chicken feed production line ?
1-2t/h broilers laying hens feed production line:
grain hammer mill→feed mixer machine→feed pellet machine→feed pellet cooler machine→pellets packing.

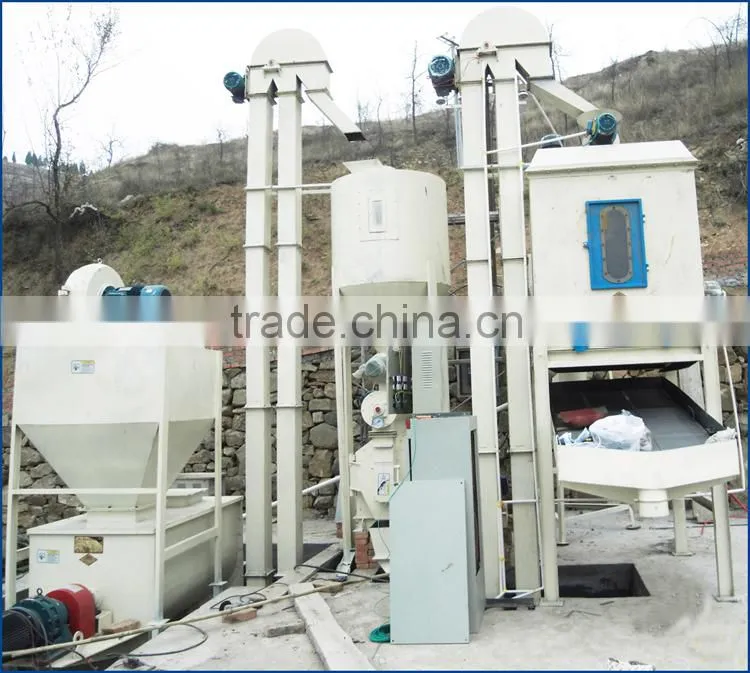

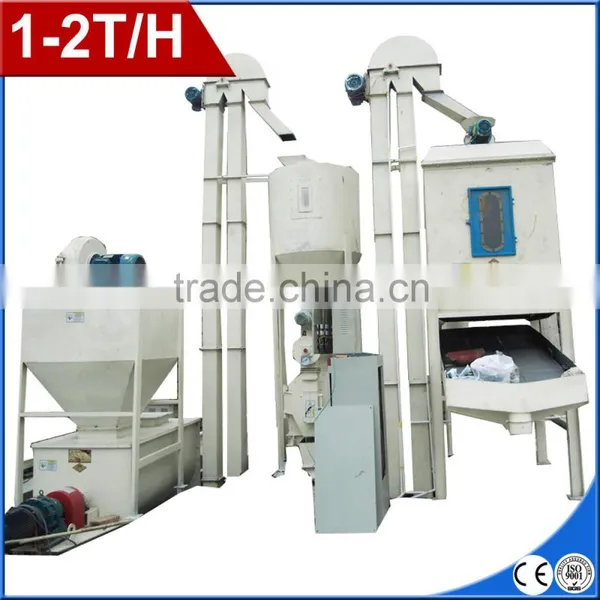

Project case of 1-2ton capacity broilers laying hens feed pellet production line, chicken feed production line

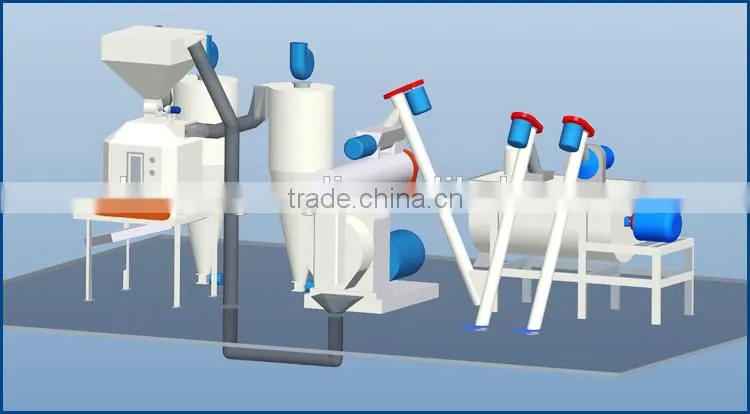

Flow chart of 1-2t/h capacity broilers laying hens feed pellet production line, chicken feed production line
This small pellet line also can manufacture feed pellet for animal,chicken,cattle cow and sheep.
Main equipments power:
1) Grain hammer mill: 15-200 (11 kw);
2) Pellet mill : SZLH-250 (22 kw);
3) Conditioner: stainless steel conditioner (2 kw);
4) Mixer: Ribbon mixer (7.5 kw);
5) Cooler: Counterflow cooling machine SKLN1.0*1.0 (1 kw);
6) Pellet crumbler: SSLG15*100 (5.5 kw).
Final products of 1-2t/h feed production line
This chicken feed pellet production line is specially designed for the small farm owners, and the animal feed suppliers who firstly begins to enter the poultry feed production industry;
1.For Baby chicken feed:the feed size is 1mm.
2.For meat chicken feed:the size is 3.5mm or 4mm.
3.For laying hens feed:powder

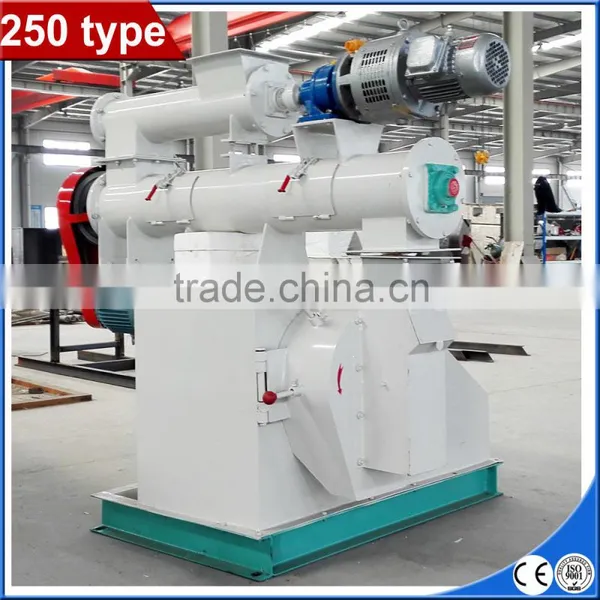

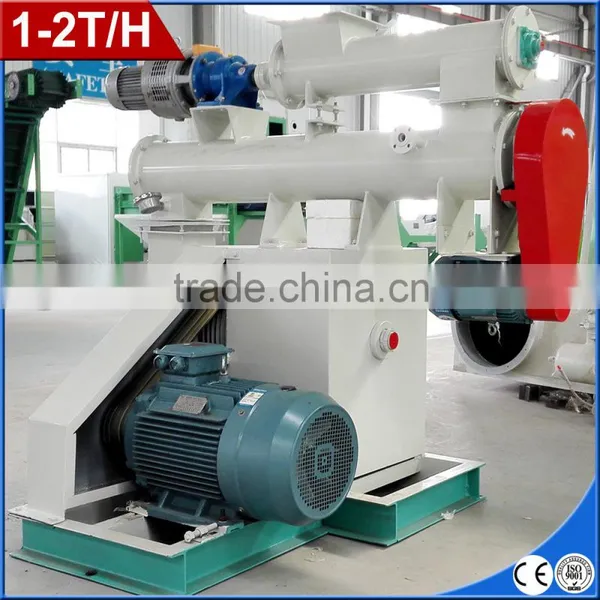

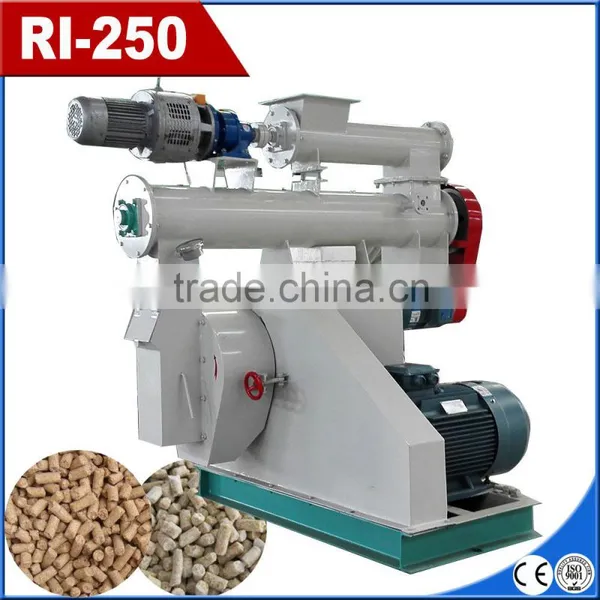

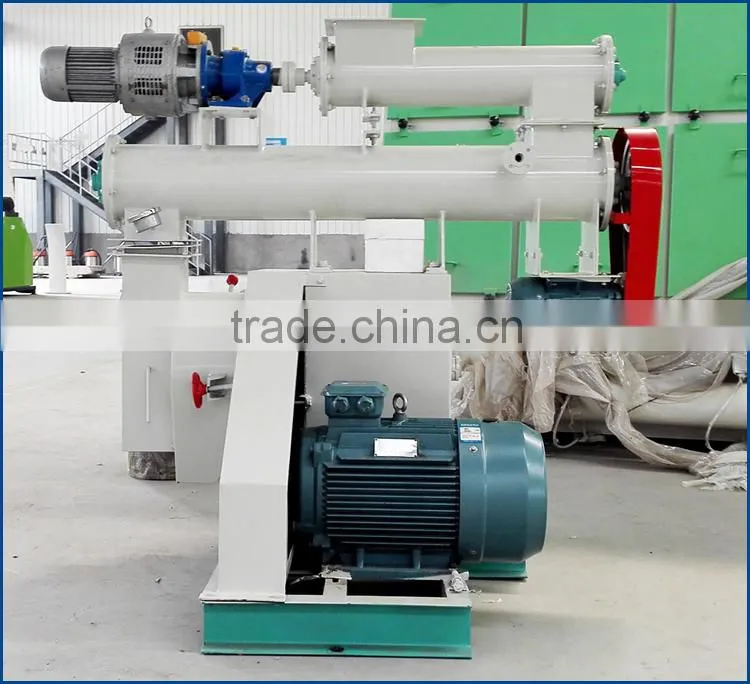

Quick details of 250 model broilers laying hens feed machine
• Model:MZLH250.
• Dimensions:1420*1200*1400 mm.
• Capacity:1-2T/H.
• Final pellets size:2/4/6/8/10/12mm
• Conditioner materials:stainless steel.
• Raw materials:corn, maize, soybean,soybean meal,wheat,grains and proteins,etc.
Technical parameters of broilers laying hens feed machine
Model |
Main engine power (kw) |
Capacity (t/h) |
Feeder power (kw) |
Conditioner power (kw) |
Ring Die Dia. (mm) |
Pellet size (mm) |
SZLH25 |
30 |
1-2 |
1.5 |
2.2 |
Φ250 |
Φ1.0-12 |
SZLH35 |
55 |
2-5 |
1.5 |
2.2 |
Φ350 |
Φ1.0-12 |
SZLH42 |
110 |
3-15 |
1.5 |
4 |
Φ420 |
Φ1.0-12 |
SZLH508 |
132/160 |
5-20 |
1.5 |
5.5 |
Φ508 |
Φ1.0-12 |

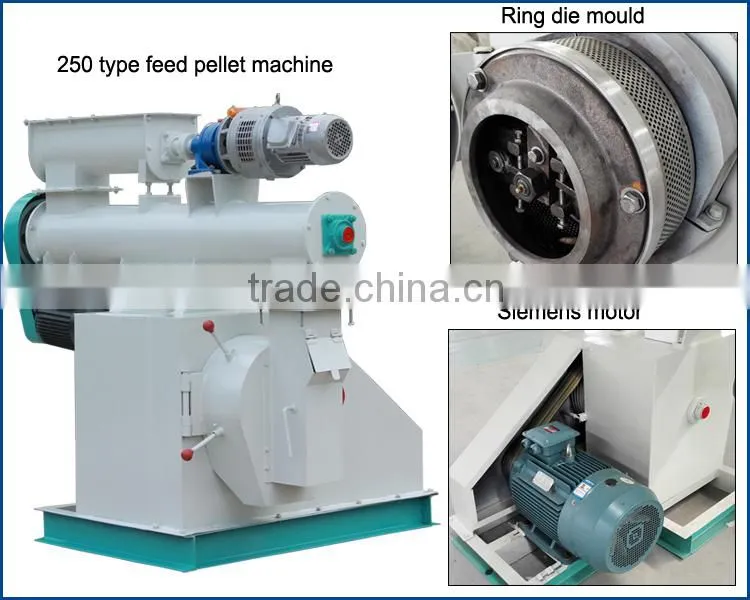

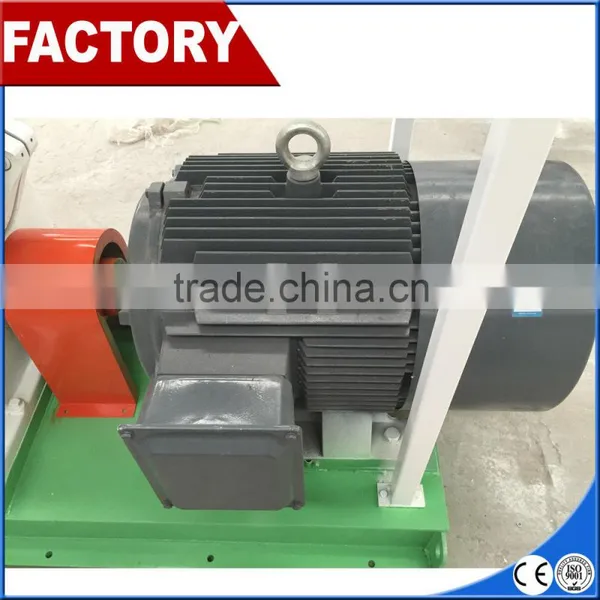

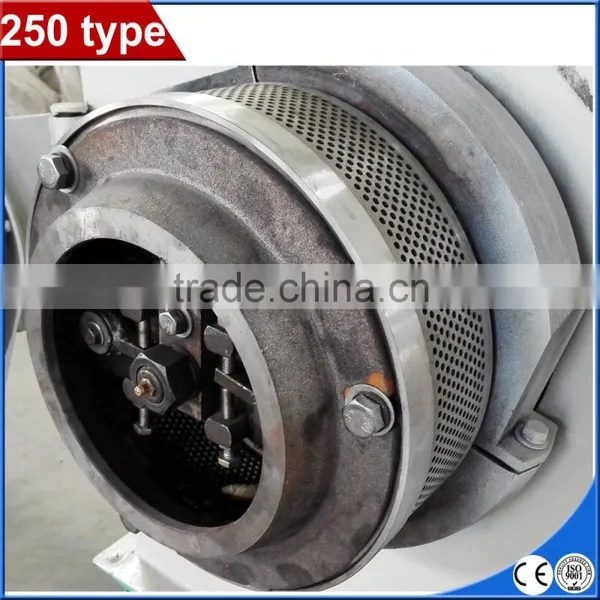

Detailed parts of 250 model broilers laying hens feed machine
Related products of 1-2t/h broilers laying hens feed production line

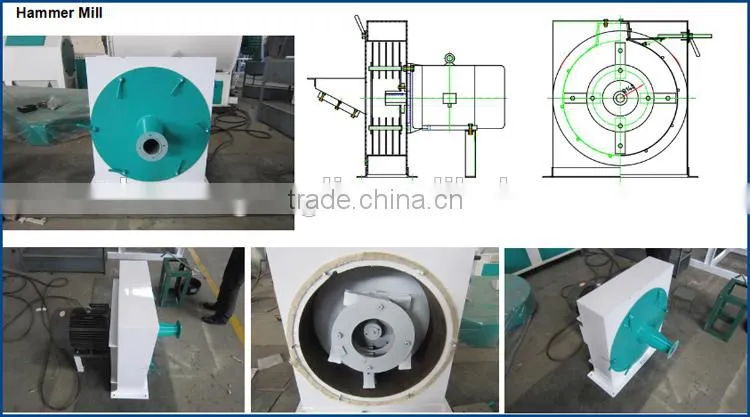

Grain hammer mill
♦ Specially designed for the small 1-2T/H capacity animal feed pellet mill production line;
♦ Connected with one screw convery, to crush the grains, like maize, corn, wheat, barley etc;
♦ It can be fixed on the mixer,realised.

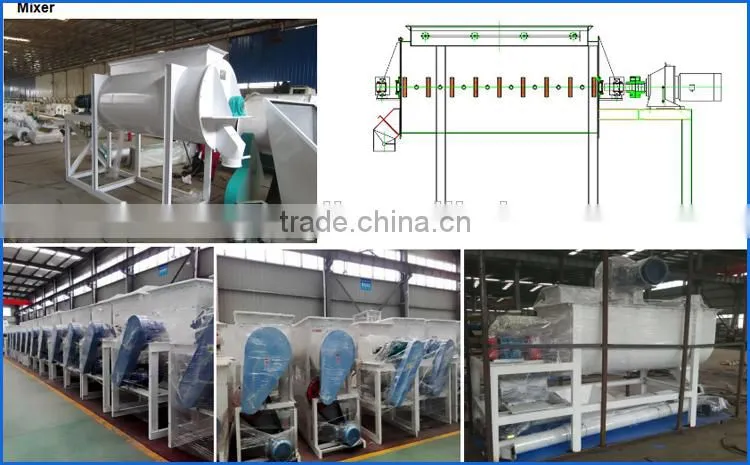

Feed Mixer machine
♦ Specially designed for the small 1-2T/H capacity chicken animal poultry feed pellet mill production line;
♦ It has two inlets, one from the hammer mill that fixed on it; the other one connect with a srew conveyor, to collect the materials that don't need to be crushed;

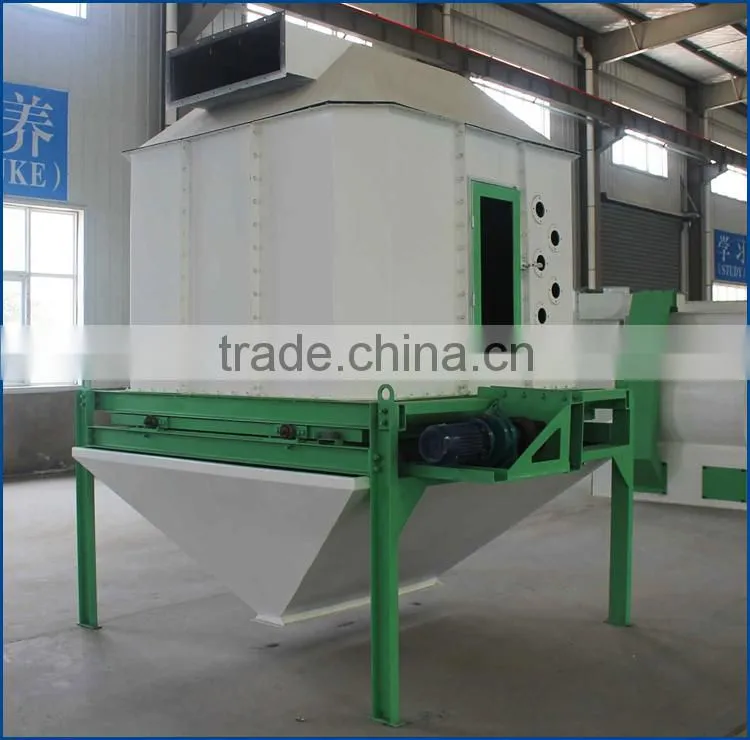

Feed pellet cooler machine

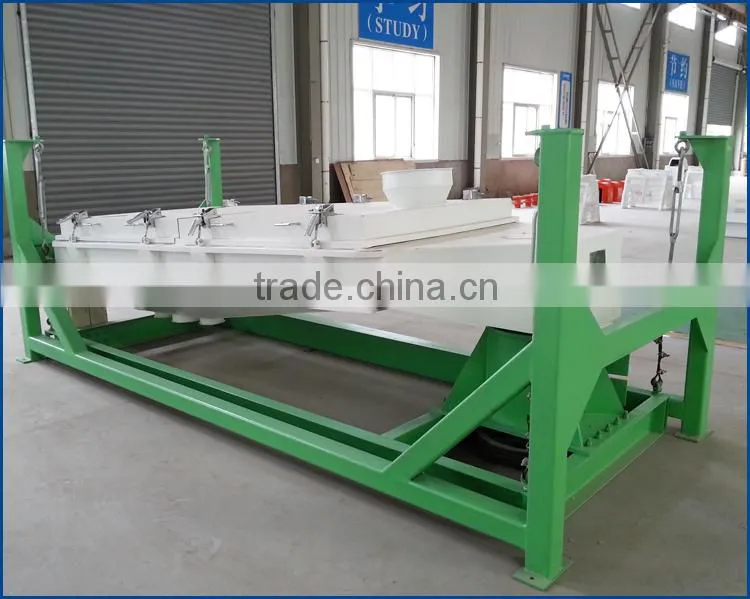

Cooling and sieving system: pellets come from pelletizer need to be cooled down to keep a better strength in short time. The sieve will separate intact pellets from ash, which could be in recycling use.
The sieve will separate intact pellets from ash, which could be in recycling use.
1) We, Henan Kyorichi Machinery Co., Ltd. was established in 1995, Has served Europe,
North America,Africa,Middle East, Asia for ten years. Our products have been sold to many
countries all over the world.
2) As a professional cattle poultry animal feed pellet mill machine and complete feed plant
project solution supplier, Henan Kyorichi can always meet different customers' requirement.
3) We understand how important the quality is, and we also understand the importance of timely shipping.
HENAN KYORICHI MACHINERY CO., LTD
Name: Zena Zhu
Skype: machinesgood
Mobile:+86 13949119373(wechat, whatsapp)
Tel: +86 371 63752859; Fax: +86 371 63752859
https://img13.fr-trading.com;
Please Leave your requirement at the bottom.
