Specifications
High Flexible Silicone Cable VDE H05SS-FNominal Voltage: 300V/500V
Temperature Range: -60~+180C
Conductor: Tinned Copper

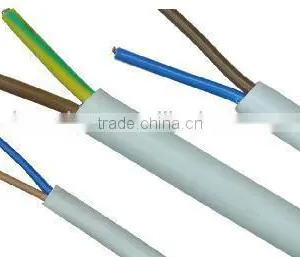

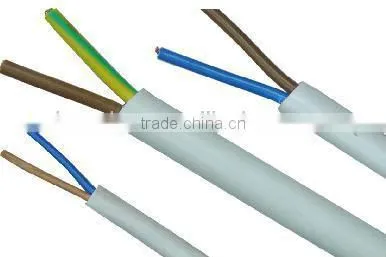

High Flexible Silicone Cable VDE H05SS-F
1)Description
Nominal Voltage:300V /500V
Temperature Range :-60oC~+180oC
Conductor:0.5mm2~6.0mm2 Tinned Copper
Insulation :Silicone
Jacket:Silicone
Colours:Black,Brown,Red,Orange, Yellow,Green,Blue,Purple,Gray, White,Transparent,Yellow/green

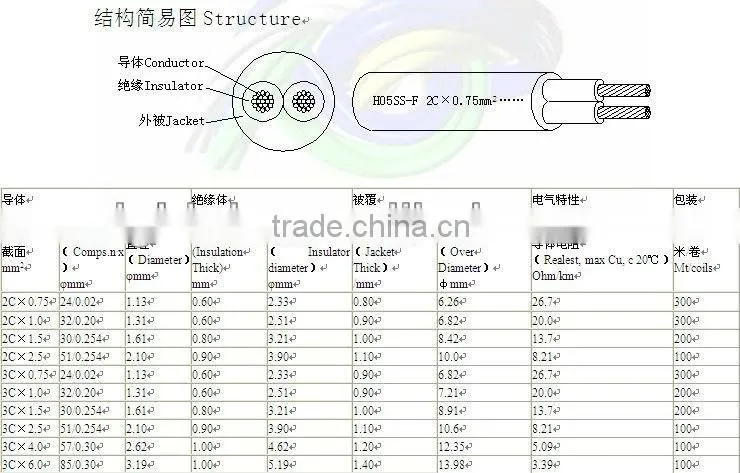

Conductor size:
2C×0.75~2C×2.5mm2,3C×0.75~3C×6mm2, 4C×0.75~4C×6mm2, 5C×0.75~5C×2.5mm2
Color: Same as customer requirements.
Core: 2,3,4,5 Cores.
2)Characteristic
High temperature resistance,low temerature resistance anti-acid,anti-oil,antisepsis and moisture.Be qualified the standard of VDE ,RoHS.
3)Application
Apply to Household appliance ,Illumination and Lighting and Headlamp,electric machines,temperrature sensor Military series ,Metallurgy Chemical series ,Motor cars and Ships Electrical Installation.
4)Service
We can also customize appliance silicone wire according to different specifications that our customers requirement
