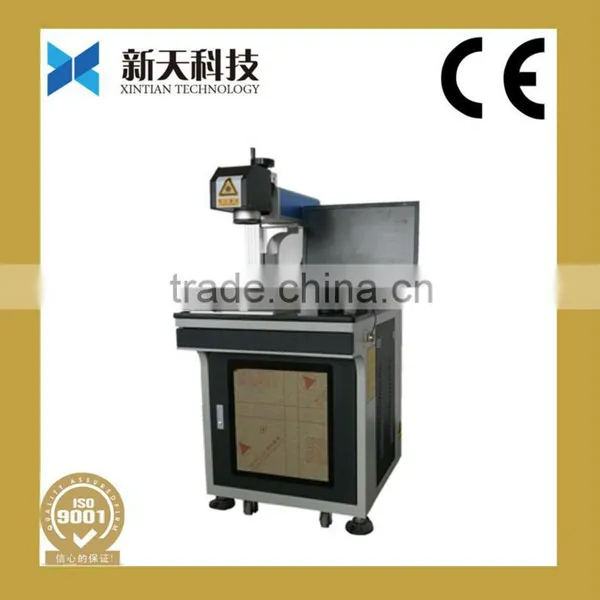

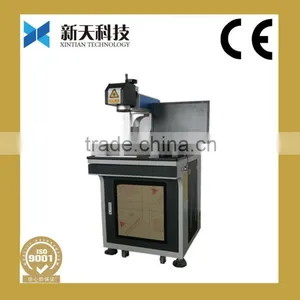

Help CenterXTL-F10 Jewelry/ring/pipe/hardware/plastic Nonmetal and Metal Fiber Laser Marking System
Related Products
-
10w 20w Ytterbium Fiber Laser MarkerUS$ 8,500 - 20,000MOQ: 1 Set -
XTL-F10 Fiber Lazer Logo Marking MachineUS$ 7,000 - 19,000MOQ: 1 Set
-
Hot Sale XTL-F10 Fiber Laser Metal Deep PrinterUS$ 7,000 - 19,000MOQ: 1 Set
-
Hot Selling XTL-F10 Laser Scanner Galvo Marking MachineUS$ 7,000 - 18,000MOQ: 1 Set
-
Hot Sale XTL-F10 Laser Printers for Ear TagsUS$ 10,000 - 100,000MOQ: 1 Set
Specifications
marking systemDigital,marking,engraving on metal,plastic,rubber
For Plate,tags,round surface
Factory
CE ISO
marking system
For metal,plastic,jewelry,nonmetal
3D,Rotary,High speed Laser Marking System
Digital,marking,engraving on metal,plastic,rubber
For Plate,tags,round surface
Factory
CE ISO
Product Specifications:
XTL Fiber laser marking system products undergo continuous improvements. This information is based on current knowledge. We reserve the right to make changes without prior notice. .
Do you need help understanding or using the system?
Do you have problems manufacturing your product?
Feel free to tell us your ideas, needs, suggestions, complaints, questions or anything at all you want to talk to us about.
We are only too happy to help in any way we can.
Fiber Marking System are detailed as follows
1. Able to mark all metal materials and some non-metallic materials.
2. Uses Germany IPG Fiber Laser Source. The Complete enclosed laser module design with the optical fiber transmission pump light source and air cooling system, which offers dust-free protection to the laser system. This greatly reduces the failure rate and results in stable laser output. It also provide a trouble and maintanence free laser system with a life span of 50, 000 hours for the laser system.
3. Able to mark a minimum line width of 0.02mm, minimum height of 0.2mm for English characters and depth of up to 1mm.
4. The XTL-F20 is currently the best choice for industries seeking deep and fine marking at a fast speed.
5. Ergonomically designed. Can be placed on desktop, taking up a small working space. Low power consumption of 800W. Highly recommended for factories and retail space.
6. XTL-F20 With Low power consumption of 800W. Highly recommended for factories and retail space.
7. WINDOWS based marking software. Able to read CORELDRAW, AUTOCAD, PHOTOSHOP and other commonly used graphic files, such as AI, PLT, DXF, BMP, JPEG. Support for auto-coding, serial number, batch number, date, bar code and two-dimensional codes.
8. Able to mark 360° Circular objects such as finger rings, bracelets and other cylindrical objects with the included rotating device.
Applicable Industry:
Jewellery accessories, eyeglasses, clocks and watches, hardware, tools, accessories, sanitary ware, ceramic plastic, PVC, phone keypad, electronic components, integrated circuits IC, precision equipment, medical equipment, etc.
Applicable materials of Lazer Marking System
The fiber laser marking machine Suitable for all kinds of metals, industrial plastic, electroplates, metal coated materials, rubbers, ceramic, and so on.Widely used in fields like mobile button, plastic transparent button; electronic arts, IC, tools, communication products;bathing products, tool accessories, glasses and watches, jewelry, button decoration for boxes and bags, cookers, stainless steel products and so on
Why fiber laser marking machine is better than yag laser marking machine,and sells better
1.Fiber laser marking machine XTL-F10 are as following:
- it use advance fiber pumping technology,producing higher quality beam,higher photoelectric conversion, the marking quality will be more finer and higher precision.
- Small Size wtih Air cooling,no water chiller.
- No maintenances laser source(100,000 hours service time), Easy to adjust focus,
- low operation cost (LOw power consumption)
- Maintenance free without routine replacement of consumables
- Easy to use by unskilled operator
2.Old lamp and diode pump laser marking machine as following
- Both need maintenance the laser source(replace lamp or diode laser modular),
- Also require an water chiller to control heat
- High temperature resistance: perfect for marking medical equipment etc that requires sterilization
- The durability & Finer Marking quality:optimizes it for use in jewelry, mobile phones, and other items of value.
Technical Parameters of Lazer Marking System
| Laser Type | Pulse Fiber Laser |
| Wavelength | 1062 nm +/- 3 nm (Nominal) |
| Beam Diameter (focus) | < 30 µm |
| Pulse Frequency | 1 - 500 kHz |
| Laser Peak Power | >10 kW |
| Output Power | 10, 20, 30 Watt |
| Output Fiber Length | 3.0 meters |
| Cooling System | Fully air cooled, heat-sink |
| Marking Field Size | Variable |
| Focusing Optics | 100, 160, 254 - Theta Lens Available2 |
| Profile Laser | Visible, red-beam pilot laser for easy positioning of the workpiece |
| Z-Axis | Mechanical or Motorized |
| Electrical Connection | 110 - 230 V (+/-10%) 16 A, 50/60Hz |
| Warranty Coverage (Parts & Labor) |
1Years Parts & Labor |
| Laser Safety Compliance | FDA(CDRH), UL, CSA, CE |
Applicable Fields
1. 12 months warranty
2.24 hour technical support by email or calling
3. User-friendly English manual and CD for machine using and maintaining.
4. Self-developed English software can do all kinds of pattern recognition
Machine Details

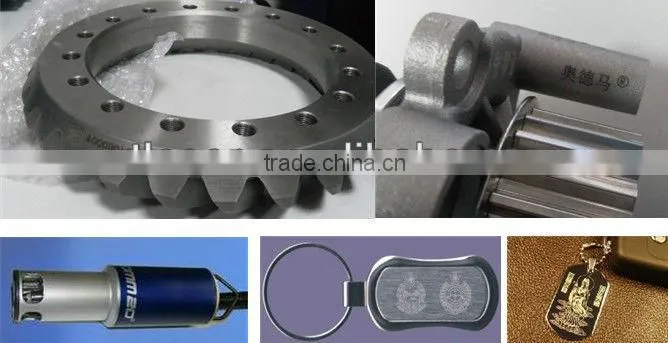

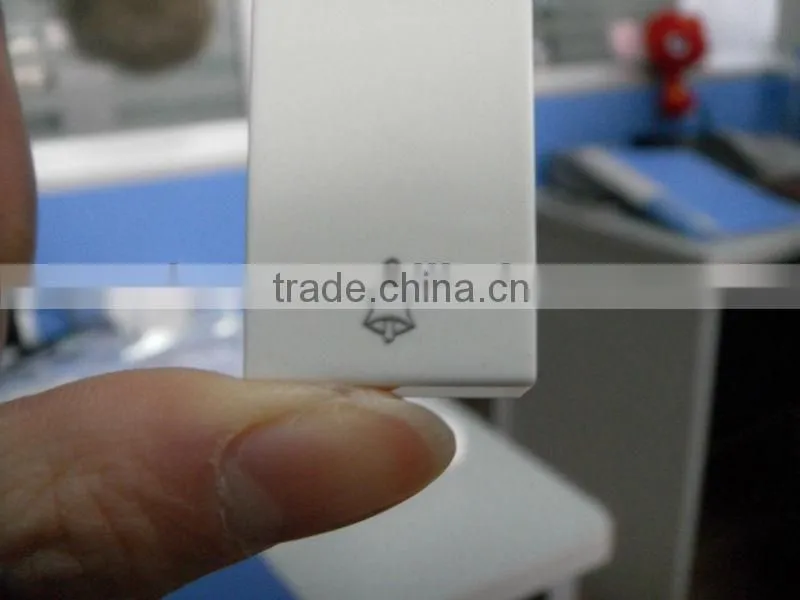

Engraving Samples
♣Priced less than comparable laser markers, Xintian lazer is an unbeatable combination of high performance and low cost!
Attend the exhibition
About us
Jinan XinTian Technology Co., Ltd was established in 2004, It is a professional manufacturer engaged in the research,development, production and service of Diode pumped Laser marking machine, Fiber laser marking machine,CO2 laser marking machine,Pneumatic marking machine,Laser engraving machine,Laser welding machine, Laser cutting machine and Laser trimming machine.
Our laser marking Machine have been exported to USA,European,South america,Middle east,Africa,etc..
Certification
Contact information
Note: In the interest of technical progress, we reserve the right to make technical
changes without notice.
we are also finding overseas distributor of our Marking System
