Specifications
dynamic focus fiber laser marking machine1.three-axis control
2.a greater range marking
3.high precision marking
4.CE

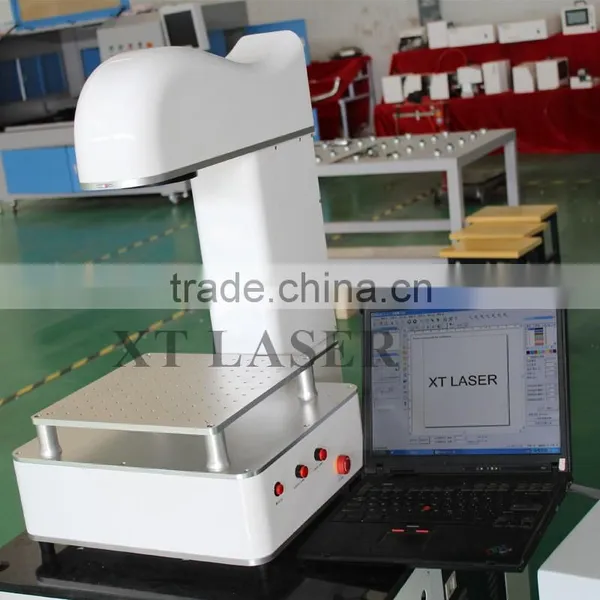

2015 High quality! curved surface dynamic focus fiber laser marking machine with CE
Welcome to contactXintianby leaving a message below or send inquiry toxintian102(at)for further information.Your kind response of below questions will help us to recomemnd the most suitable model to you asap.
1.What material do you apply to for the marking? What is the marking content? for graphic or text?
2.What about the requirement of marking length,depth and acuracy?
3.Marking area? 110*110mm,200*200mm,300*300mm or others
Demo video of dynamic focus fiber laser marking machine : http://youtu.be/P4qhJ474TSc
Demo video of dynamic focus fiber laser marking machine : http://youtu.be/vhLlKeC1T-o
dynamic focus fiber laser marking machine : http://youtu.be/mTgDZ_PkseY
What is Description of dynamic focus fiber laser marking machine ?
For a variety of shapes carved, the three-axis control can be achieved freedom control of focus, undifferentiated marking in variety of steps and uneven surfaces.
A greater range marking. Under the premise of standard marking range, z-axis can achieve variable focal length of 40mm marking range, Z-axis can achieve variable focal length of 40mm marking.
High precision marking. The three-axis scanning system can arbitrarily adjust the focus of the traditional fixed-focus laser marking machine, eliminate the range deformation and spot deviations from the characteristics of traditional F lens.
More suitable for deep engraving. The dynamic marking is able to automatically adjust the focus in the process of engraving, deeper marking depth through marking on the machined surface with continuously highest energy density.
Application Industry
Laser Marking Machine widely used in Electronic Component, Instrument and meters, Hardware, Food and beverage, Jeweler, Keyboard, Package, Cell Phone Case, etc.
Application Materials
Metal and Alloy: Stainless steel, Aluminum, Steel, Copper, Chrome, Anodized Aluminum, Silicon Wafer etc.
Nonmetals: Plastic, ABS, Nylon etc.
Functions
Engraving and Marking logos, texts, photos, images, 2d code, serial code, serial numbers without consumables. Those marks are permanent.
What is Specifications of dynamic focus fiber laser marking machine ?
- Softwares. Powerful software can create various files. Easy to use.
- IPG laser. Made in German ensures the very stable quality and extreme long lifetime.
- Galvo scanner. Much faster than fixed head laser engraving machine.
- Lifting tableto adjust focus point of different work piece.
- F-Theta lenswith differen F brings differen marking scope.
- Deft design. The more simple structure, the better working status. No wearing parts.
- USB interface. Easy to connect with computer.
- Customizable. We provide customiz machine according to clients' special request.
- 2 years warrantycome from our confidence on our machine quality
| Model | XTL-F10/20/30 | |
| Laser power | 10Watt/20Watt/30Watt | |
| Laser source | Fiber | |
| Light wave length | 1064nm | |
| Laser modulation mode | Coupling amplification | |
| Marking area | 70×70mm/110×110mm/175x175mm/200x200mm/300x300mm Optional | |
| Work table size | 150×210 mm | |
| Max marking speed | 7000mm/s | |
| Marking depth | 0.05~0.5mm(acc. to material) | |
| Min linewidth | 0.01mm | |
| Min marking character | 0.2mm | |
| Impulse frequency | 20~250kHz | |
| Cooling way | Air cooling | |
| Power supply | 220V/50Hz/1kVA | |
| Min focus facula diameter | 20μm | |
| Re-position accuracy | 0.0025mm | |
| Laser indicator | Red dot pointer | |
Welcome to contact us,we will do our best for you.
dynamic focus fiber laser marking machine good and distributors wanted!!!
We will be very happy to help you in any way we can.
E-M-A-I-L:xintian102(at)
Skype:xtlasermachine
WEB: /
curved surface dynamic focus fiber laser marking machine with CE is looking for agents !!!
