Specifications
3D laser marking machine1.three-axis control
2.a greater range marking
3.high precision marking
4.ISO CE FDA BV
10w/20w/30w 3D fiber laser marking machine price
What is Description of 3D fiber laser marking machine ?
For a variety of shapes carved, the three-axis control can be achieved freedom control of focus, undifferentiated marking in variety of steps and uneven surfaces.
A greater range marking. Under the premise of standard marking range, z-axis can achieve variable focal length of 40mm marking range, Z-axis can achieve variable focal length of 40mm marking.
High precision marking. The three-axis scanning system can arbitrarily adjust the focus of the traditional fixed-focus laser marking machine, eliminate the range deformation and spot deviations from the characteristics of traditional F lens.
More suitable for deep engraving. The dynamic marking is able to automatically adjust the focus in the process of engraving, deeper marking depth through marking on the machined surface with continuously highest energy density.
Application Industry
Laser Marking Machine widely used in Electronic Component, Instrument and meters, Hardware, Food and beverage, Jeweler, Keyboard, Package, Cell Phone Case, etc.
Application Materials
Metal and Alloy: Stainless steel, Aluminum, Steel, Copper, Chrome, Anodized Aluminum, Silicon Wafer etc.
Nonmetals: Plastic, ABS, Nylon etc.
Functions
Engraving and Marking logos, texts, photos, images, 2d code, serial code, serial numbers without consumables. Those marks are permanent.
What is Specifications of 3D fiber laser marking machine ?
| Model | XTL-F10/20/30 | |
| Laser power | 10Watt/20Watt/30Watt | |
| Laser source | Fiber | |
| Light wave length | 1064nm | |
| Laser modulation mode | Coupling amplification | |
| Marking area | 70×70mm/110×110mm/175x175mm/200x200mm/300x300mm Optional | |
| Work table size | 150×210 mm | |
| Max marking speed | 7000mm/s | |
| Marking depth | 0.05~0.5mm(acc. to material) | |
| Min linewidth | 0.01mm | |
| Min marking character | 0.2mm | |
| Impulse frequency | 20~250kHz | |
| Cooling way | Air cooling | |
| Power supply | 220V/50Hz/1kVA | |
| Min focus facula diameter | 20μm | |
| Re-position accuracy | 0.0025mm | |
| Laser indicator | Red dot pointer | |

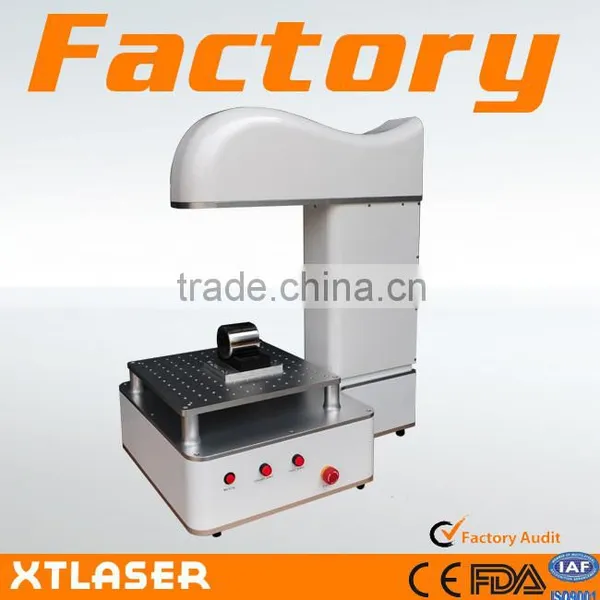

Product Photos of 3D fiber laser marking machine

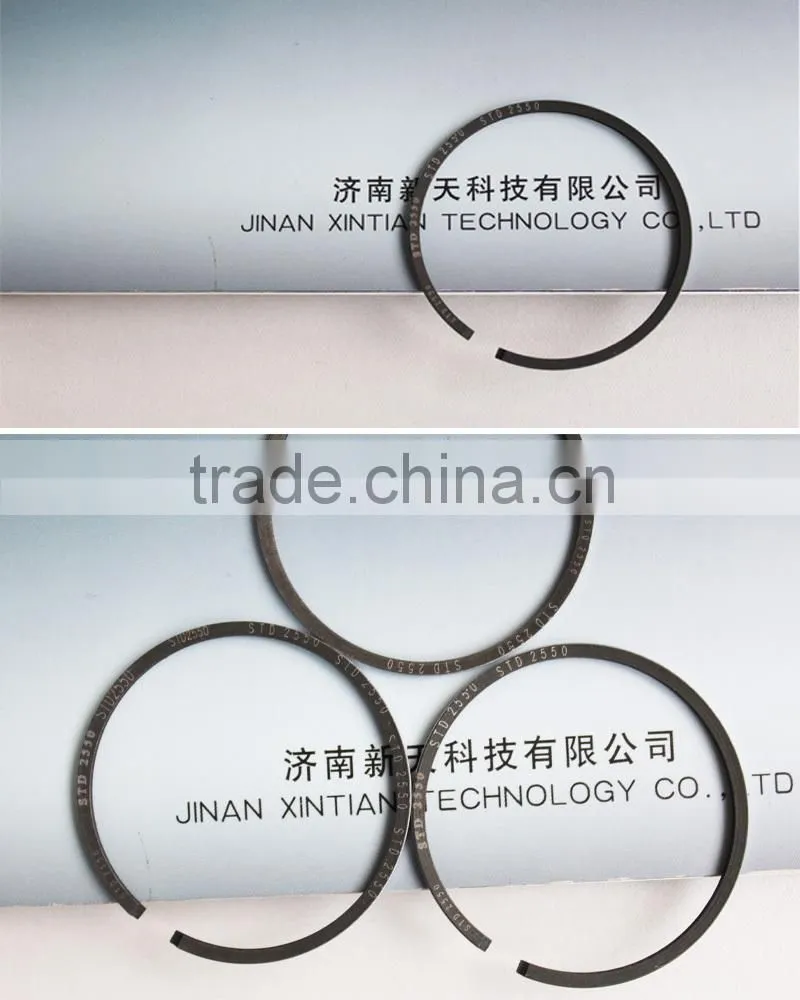

Work sample of 3D fiber laser marking machine
| Youtube Homepage | /channel/UClyk7vtBRhrsRzfdgCek8kg |
| Laser marking spare parts | http://youtu.be/t8QCEWK3MnE |
| Laser marking pans | http://youtu.be/O9LYa6N2XFM |
| Laser marking car lights cylindrical surface | http://yout u.be/An-ydrR3v-0 |
| Laser marking colorful marking | http://youtu.be/BQ9UW7U32V8 |
| Laser marking ring | http://youtu.be/NW0LTu4e11o |
| Laser marking plastic bottle | http://youtu.be/vDeiMc3YyAQ |
| Laser marking keychains | http://youtu.be/W5WkCoPhzZY |
| Laser marking aluminum | http://youtu.be/BSeCDpv74_M |
| Serial no. laser marking |
http://youtu.be/Asi3VsLUBsw |
| Laser marking 2D code |
http://youtu.be/vhLlKeC1T-o
|
| Rotary marking round disc | http://youtu.be/vu2s_sGPspo |
| Laser marking cylinder surface | http://youtu.be/lMAbMt6G1UE |
| Laser marking curved surface | http://youtu.be/P4qhJ474TSc |
| Laser marking ear tag/cattle tag | http://youtu.be/Asi3VsLUBsw |
| Laser marking medical instruments | http://youtu.be/V9uC6PQ6QdE |
PICTURES

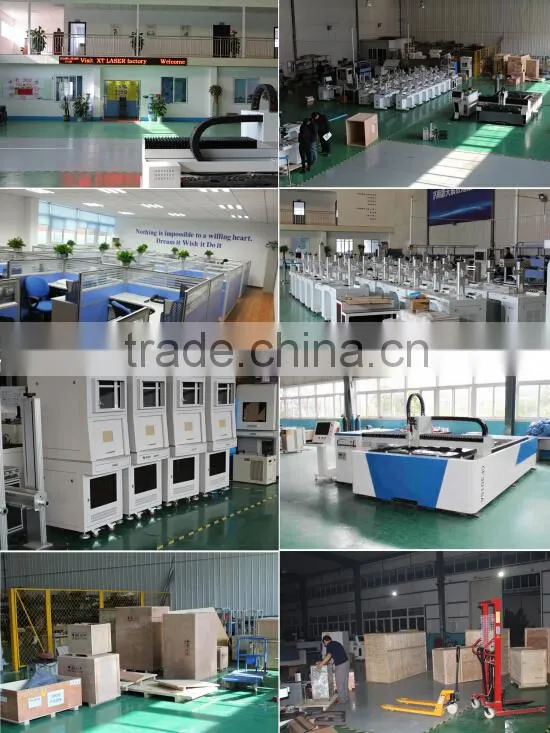

Company View
